Huawei OceanProtect

PreviousDell EMC Data DomainNextHPE StoreOnce

Create DataTurbo user

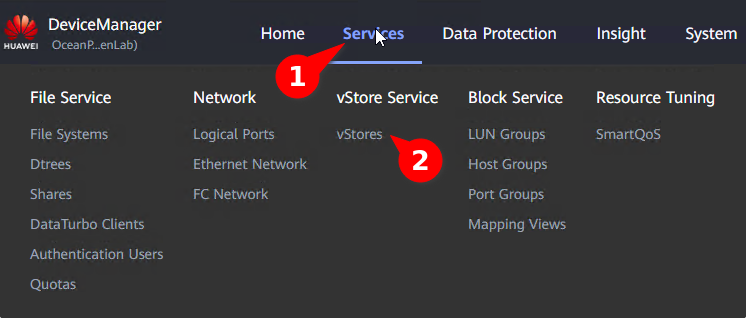

  1. Go to Services -> vStore Service -> vStores

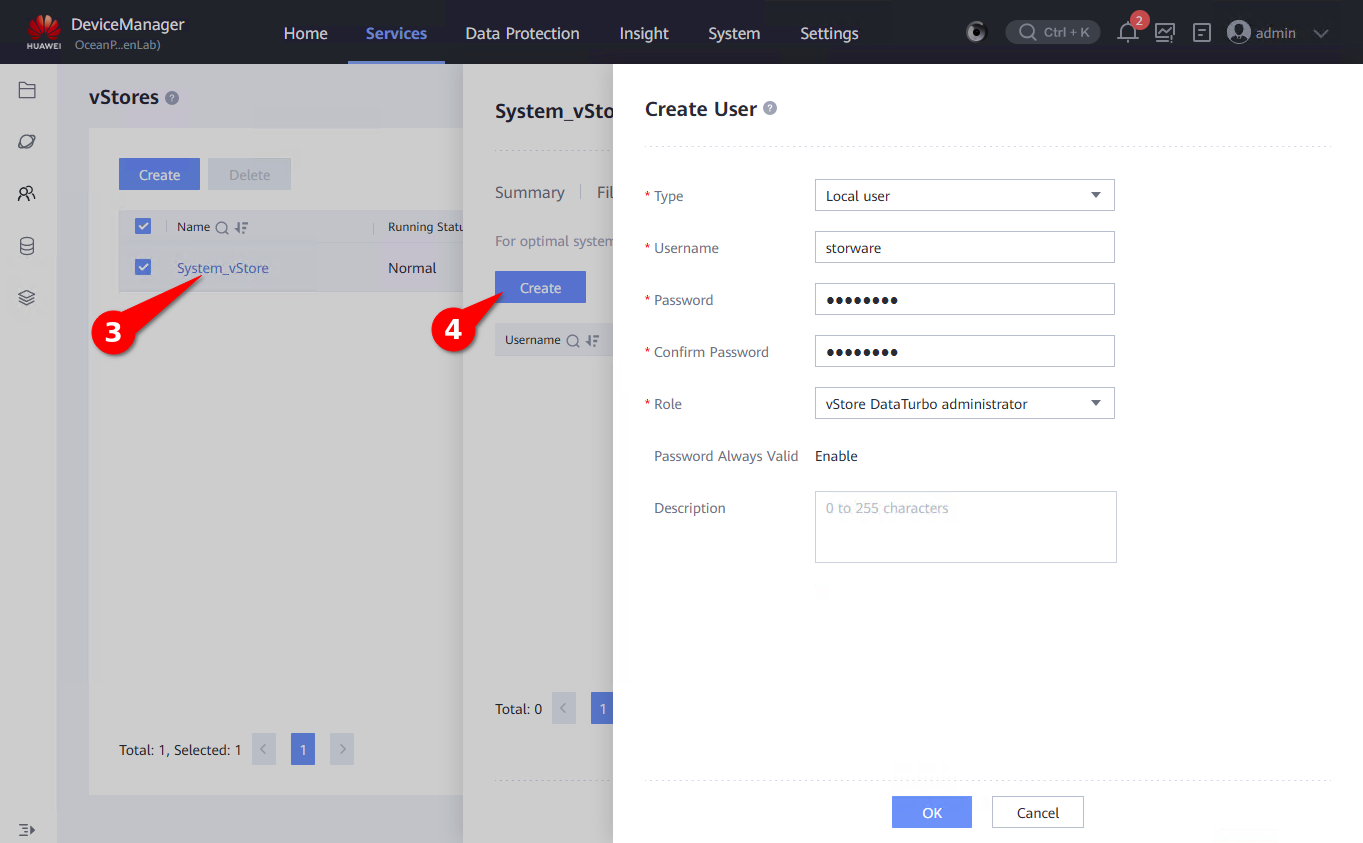

  2. Select vStore -> Create new user with role "vStore DataTurbo administrator"

Create logical port

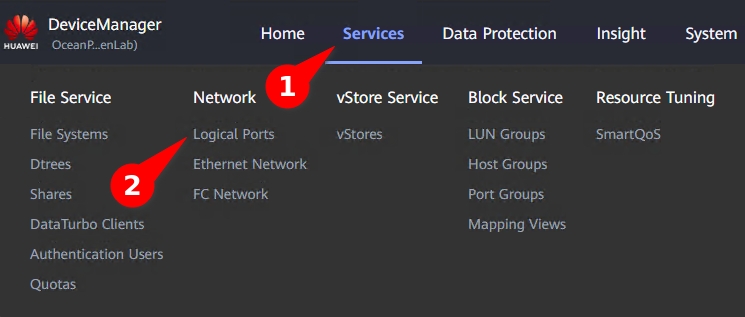

  1. Go to Services -> Network -> Logical Ports

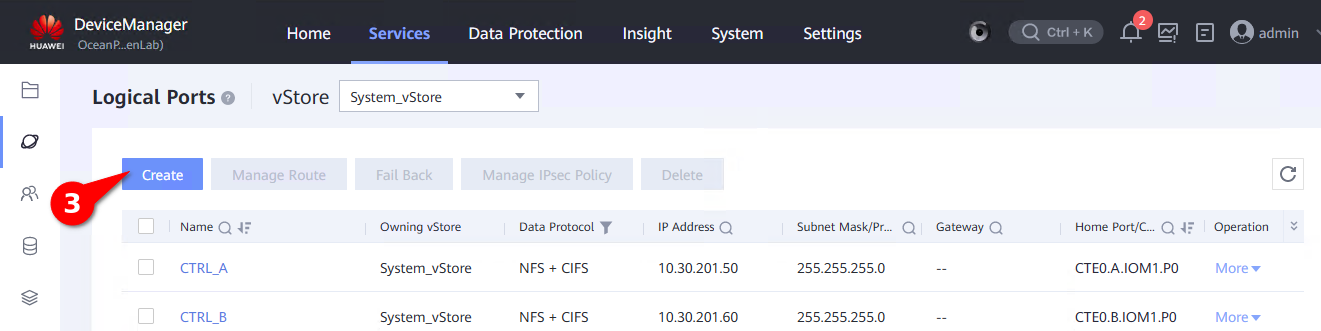

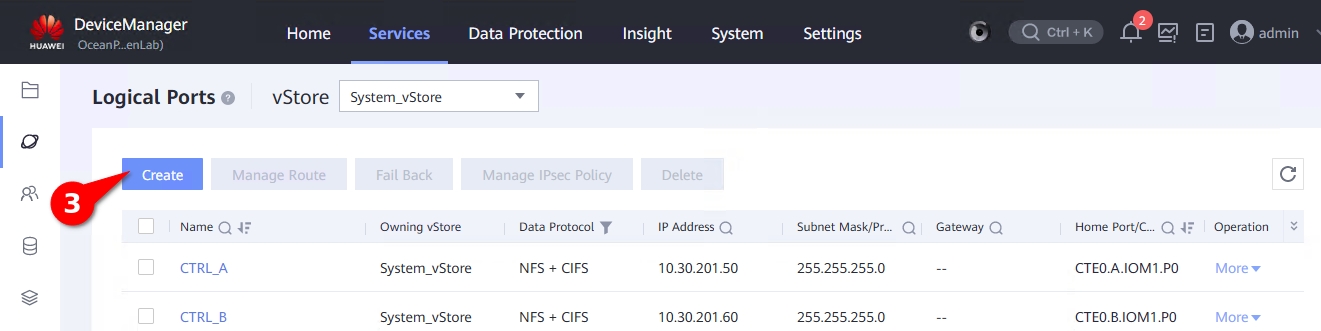

  2. Create new logical port

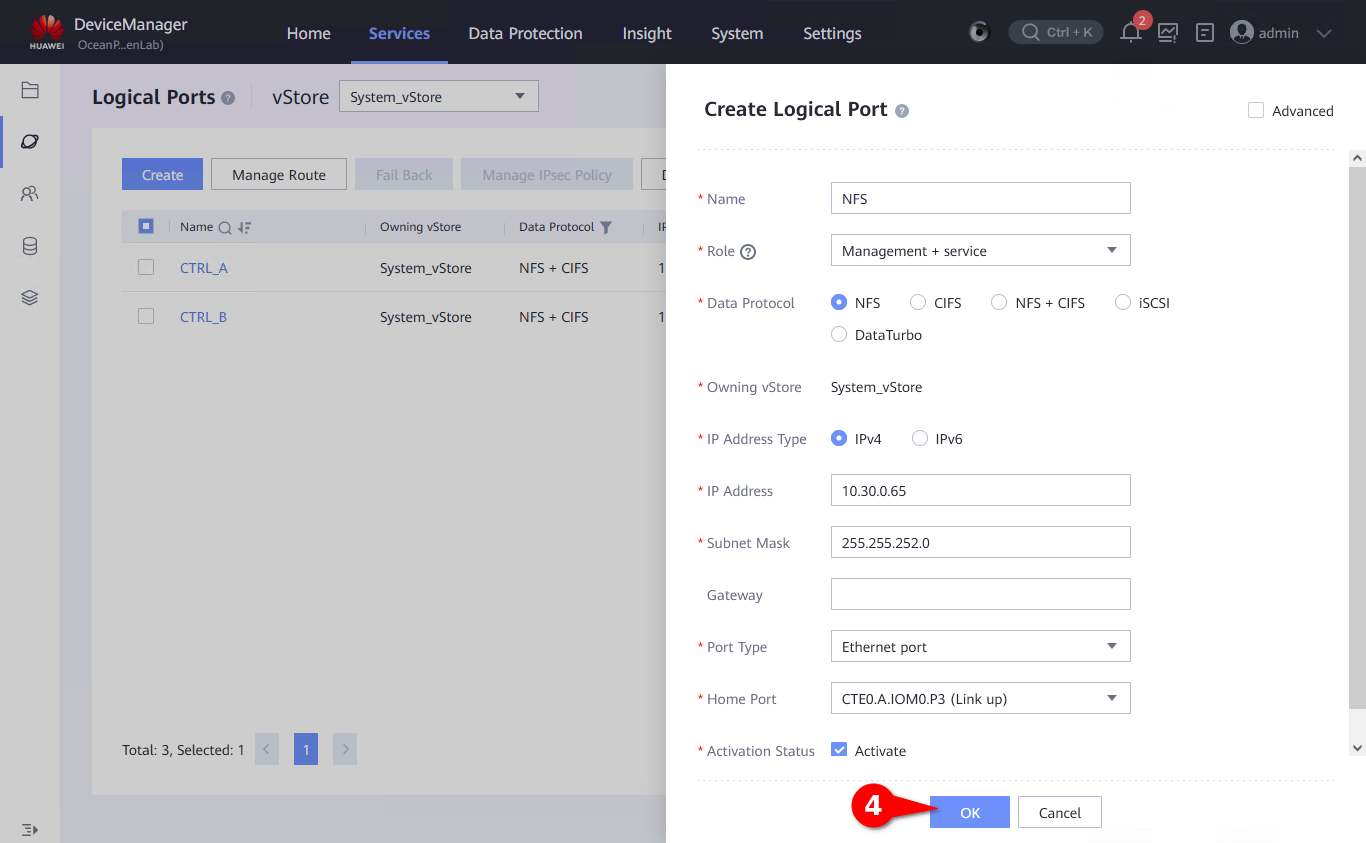

  3. Settings for NFS

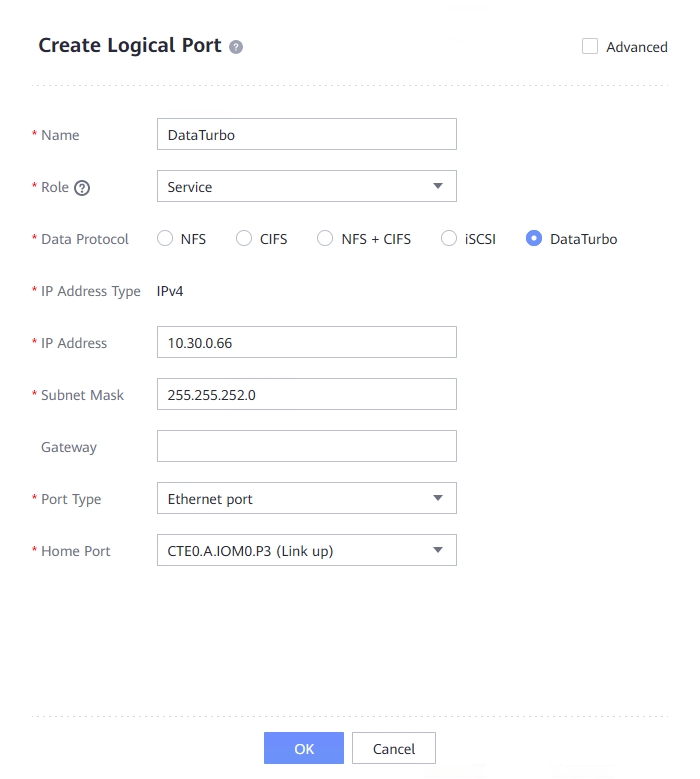

  4. Settings for DataTurbo

Create Filesystem

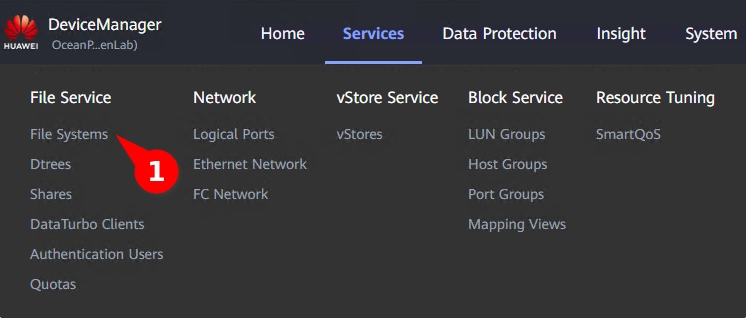

  1. Go to Services -> File Service -> File Systems

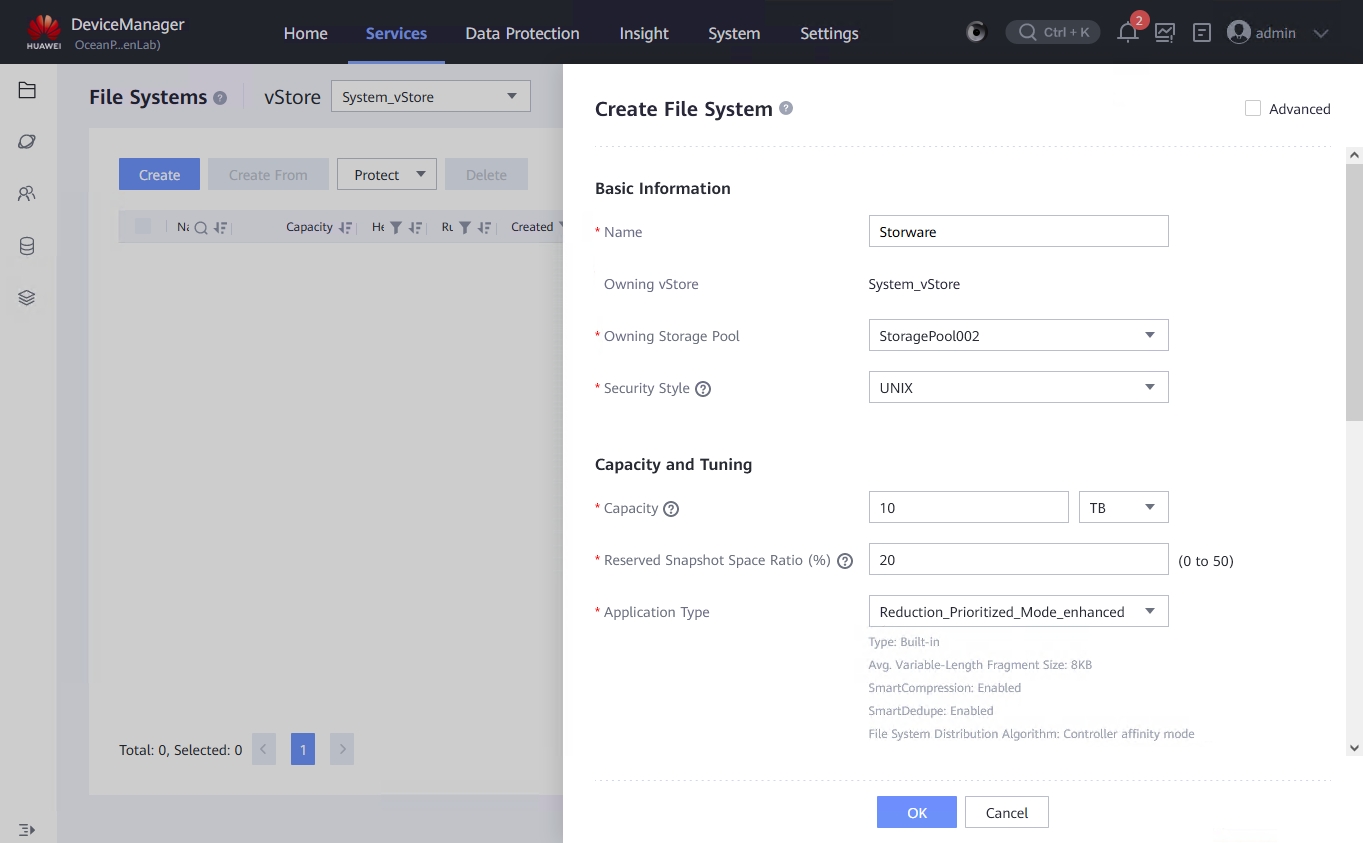

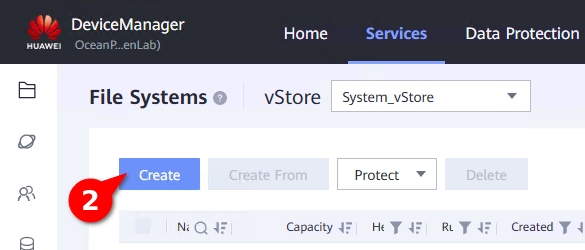

  2. Create new file system

    • Fill:

      • Name

      • Capacity

      • Application Type

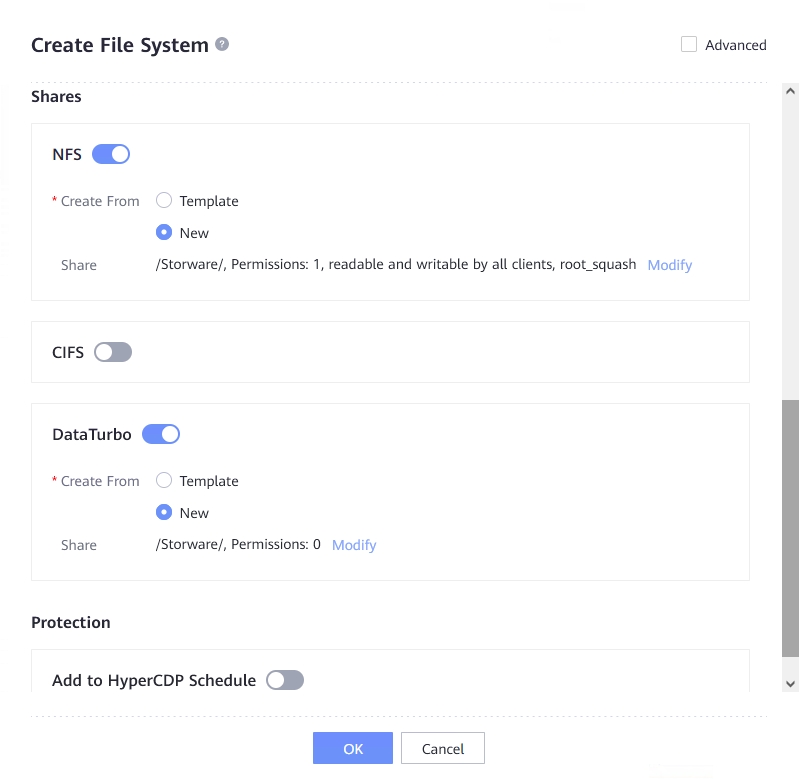

    • With NFS, and DataTurbo share

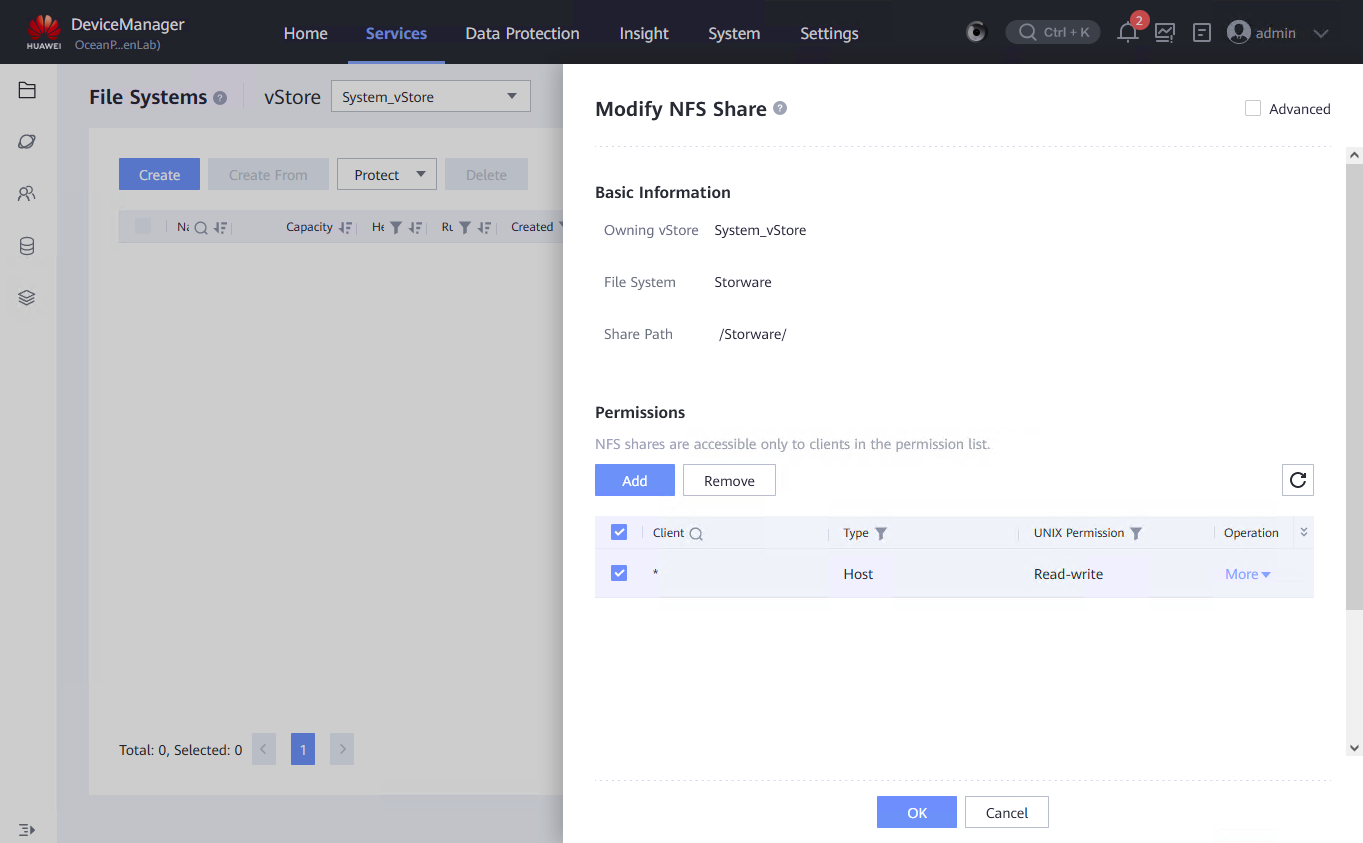

  3. On NFS share modify settings:

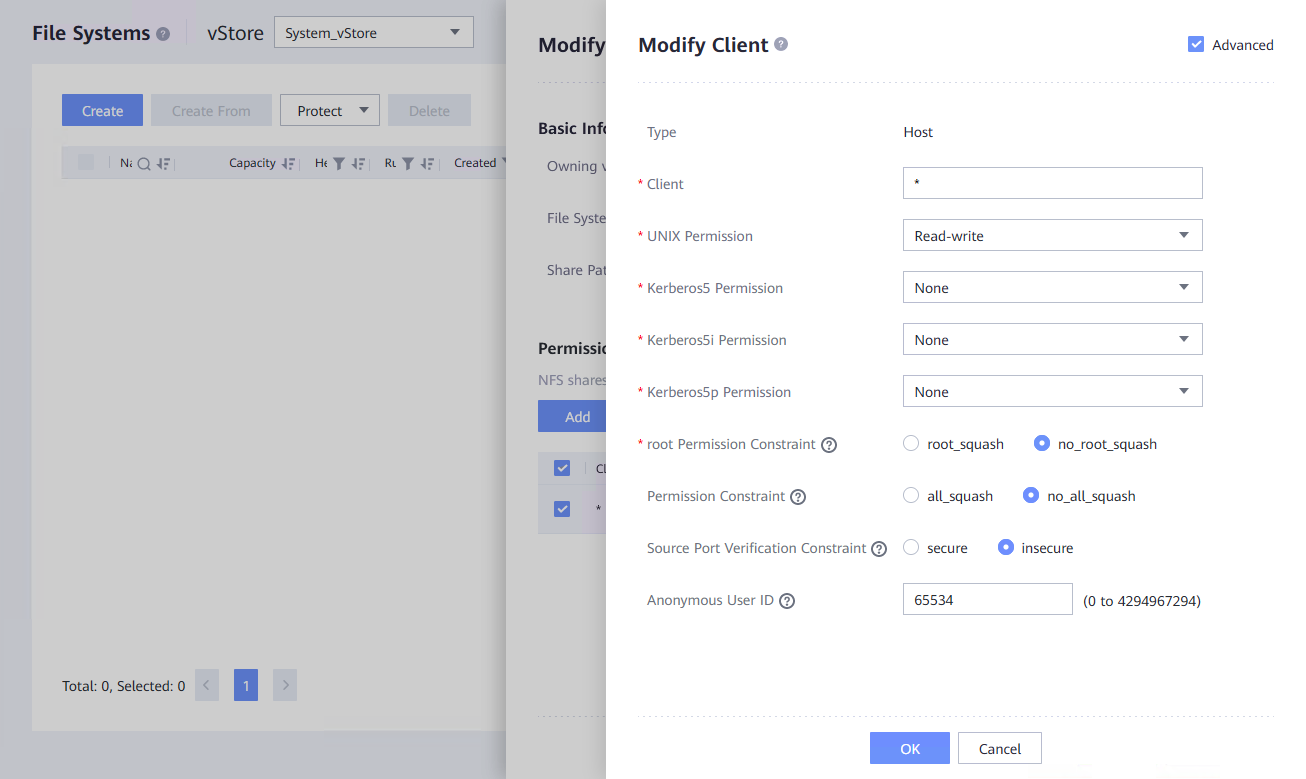

  4. In permissions add new client, or modify existing:

    • Client - * , or IP of Storware node machine

    • root Permission Constraint - no_root_squash

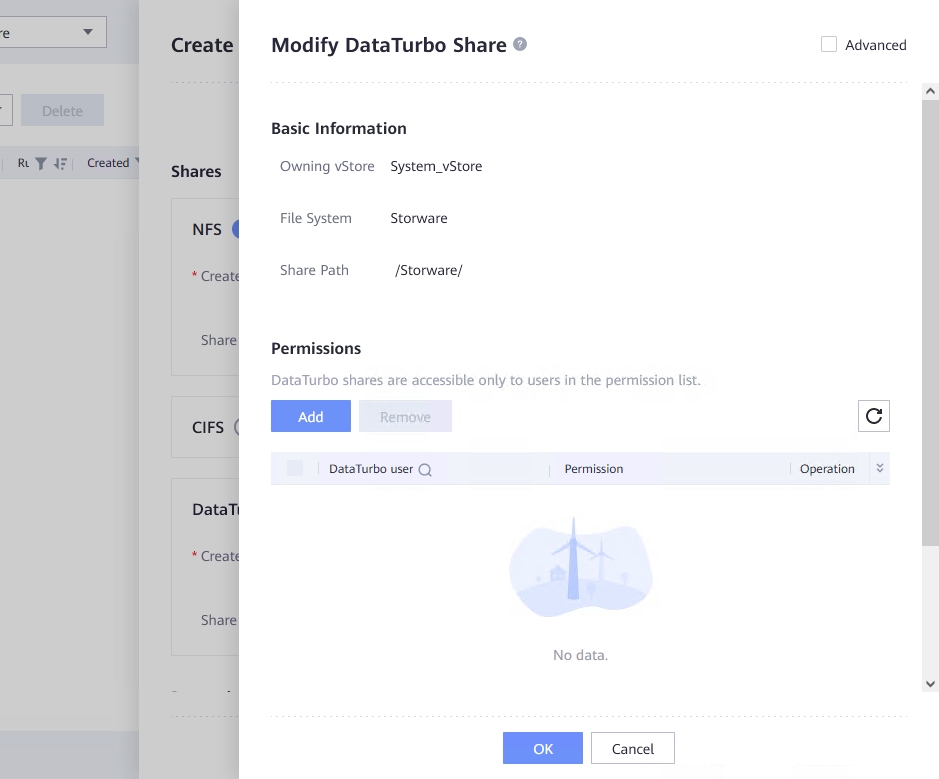

  5. Save settings and modify DataTurbo share:

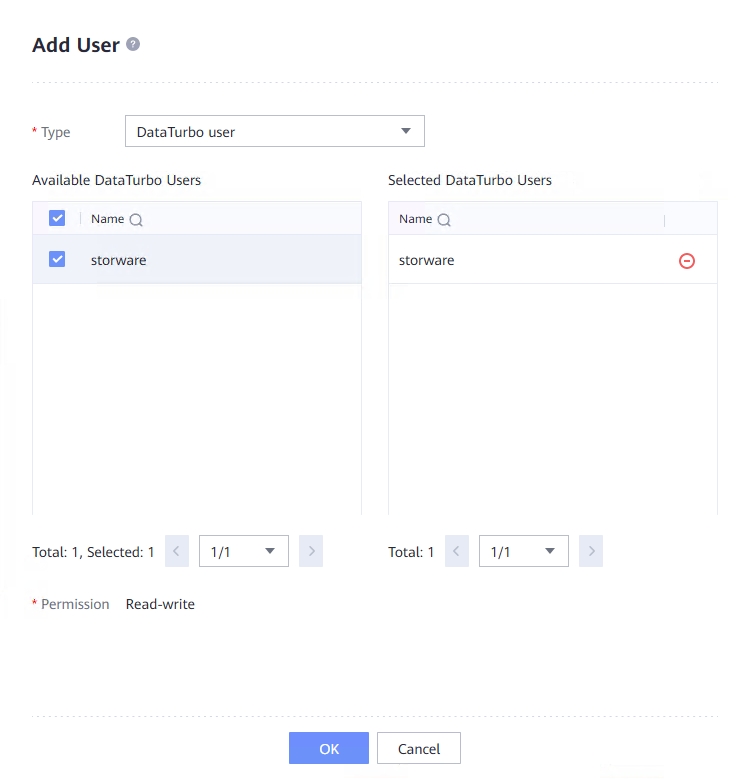

  6. In Permissions add user to share:

Mount NFS share

  1. In Storware Backup & Recovery Node, mount NFS share which was created in previous step:

    mount OceanProtectIP:/Storware /vprotect_data

Mount DataTurbo share

Note: DataTurbo share is possible for mounting only in CentOS/Red Hat 7

  1. Install DataTurbo package in Storware Backup & Recovery Node:

    unzip OceanStor_DataTurbo_1.0.0_Linux.zip
    [root@localhost ~]# unzip OceanStor_DataTurbo_1.0.0_Linux.zip
    Archive:  OceanStor_DataTurbo_1.0.0_Linux.zip
       creating: OceanStor_DataTurbo_1.0.0_Linux/
       creating: OceanStor_DataTurbo_1.0.0_Linux/doc/
    inflating: OceanStor_DataTurbo_1.0.0_Linux/install.sh
       creating: OceanStor_DataTurbo_1.0.0_Linux/packages/
    inflating: OceanStor_DataTurbo_1.0.0_Linux/packages/oceanstor_dataturbo_1.0.0-202211151736.linux.x86_64.rpm
    inflating: OceanStor_DataTurbo_1.0.0_Linux/upgrade.sh
    cd OceanStor_DataTurbo_1.0.0_Linux/
    chmod a+x install.sh
    ./install.sh
    [root@localhost ~]# cd OceanStor_DataTurbo_1.0.0_Linux/
    [root@localhost OceanStor_DataTurbo_1.0.0_Linux]# chmod a+x install.sh
    [root@localhost OceanStor_DataTurbo_1.0.0_Linux]# ./install.sh
    Preparing...                          ################################# [100%]
    CUSTOM_USER=dataturbo
    begin to create dufault user[dataturbo] and group[dataturbo] ......
    Updating / installing...
       1:dataturbo-1.0.0-202211151736     ################################# [100%]
    The DataTurbo client supports three performance levels: high, medium, and low. A higher level consumes more memory and CPU, you can use cgroup
    command to limit the CPU usage of the DataTurbo process. The current remaining memory of the system is 4 GB. You are advised to select
    level 1(recommended) or lower. If the level selection process stops abnormally, the recommended level will be used.
    <0>--Select Default Level. The recommended level will be used.
    <1>--Select Low Level. It is estimated that at most 4 GB memory is consumed.
    <2>--Select Medium Level. It is estimated that at most 6 GB memory is consumed.
    <3>--Select High Level. It is estimated that at most 12 GB memory is consumed.
    please input your selection:0
    your selection is [0]
    install dataturbo succeed.
  2. Start DataTurbo service

    systemctl start dataturbo
    [root@localhost ~]# systemctl start dataturbo
    [root@localhost ~]# systemctl status dataturbo
    ● dataturbo.service - dataturbo
       Loaded: loaded (/usr/lib/systemd/system/dataturbo.service; enabled; vendor preset: disabled)
       Active: active (running) since śro 2023-01-25 15:32:21 CET; 4s ago
    Process: 18488 ExecStart=/opt/oceanstor/dataturbo/script/start.sh (code=exited, status=0/SUCCESS)
    Main PID: 18558 (dpc)
       Tasks: 95 (limit: 65535)
       CGroup: /system.slice/dataturbo.service
             └─18558 /opt/oceanstor/dataturbo/bin/dpc

    sty 25 15:32:20 localhost.localdomain systemd[1]: Starting dataturbo...
    sty 25 15:32:21 localhost.localdomain su[18660]: (to dataturbo) root on none
    sty 25 15:32:21 localhost.localdomain su[18751]: (to dataturbo) root on none
    sty 25 15:32:21 localhost.localdomain systemd[1]: Started dataturbo.
  3. Create DataTurbo storage object, with DataTurbo user

    dataturbo create storage_object storage_name=Storware ip_list=OceanProtectIP
    [root@localhost ~]# dataturbo create storage_object storage_name=Storware ip_list=10.30.0.66
    Please input username:
    storware
    Please input password:
    ********
    Create storage object successfully.
  4. Check if storage is created

    dataturbo show storage_object
    [root@localhost ~]# dataturbo show storage_object
    Storage Name:	Storware
    User        :	storware
    Ips         :	10.30.0.66
    IpPair      :
    ID	Local Address		Remote Address		Status
    ---------------------------------------------------------------
    1	10.30.1.242		10.30.0.66		Normal
  5. Create mount directory, and mount DataTurbo share

    mkdir /vprotect_data
    dataturbo mount storage_object storage_name=Storware filesystem_name=/Storware mount_dir=/vprotect_data
  6. Check if share is mounted:

    [root@localhost ~]# df -hT
    Filesystem              Type            Size  Used Avail Use% Mounted on
    devtmpfs                devtmpfs        2,6G     0  2,6G   0% /dev
    tmpfs                   tmpfs           2,6G  8,0K  2,6G   1% /dev/shm
    tmpfs                   tmpfs           2,6G  8,7M  2,6G   1% /run
    tmpfs                   tmpfs           2,6G     0  2,6G   0% /sys/fs/cgroup
    /dev/mapper/centos-root xfs              17G  1,7G   16G  10% /
    /dev/sda1               xfs            1014M  181M  834M  18% /boot
    tmpfs                   tmpfs           523M     0  523M   0% /run/user/0
    tmpfs                   tmpfs           523M     0  523M   0% /run/user/1000
    /Storware               fuse.dataturbo  8,0T     0  8,0T   0% /vprotect_data
  7. Grant privileges for vprotect user

    chown vprotect:vprotect -R /vprotect_data

Create File System Backup Destination

Note: Only regular File System Backup Destination is currently available.

  1. Go to Backup Destinations.

  2. Click on Create Backup Destination, choose a File system.

  3. Type the name for the new backup destination and select at least one node configuration.

  4. In Storage paths type /vprotect_data/backups, where you point to a subdirectory in your staging space, where Storware Backup & Recovery will store the backups.

  5. Save the configuration.

Go to the section to learn how to create backup destination.

Create File System Backup Destination
