  1. Protecting Virtual Environments
  2. Virtual Machines

KVM/Xen

PreviousProxmox VENextOpenStack

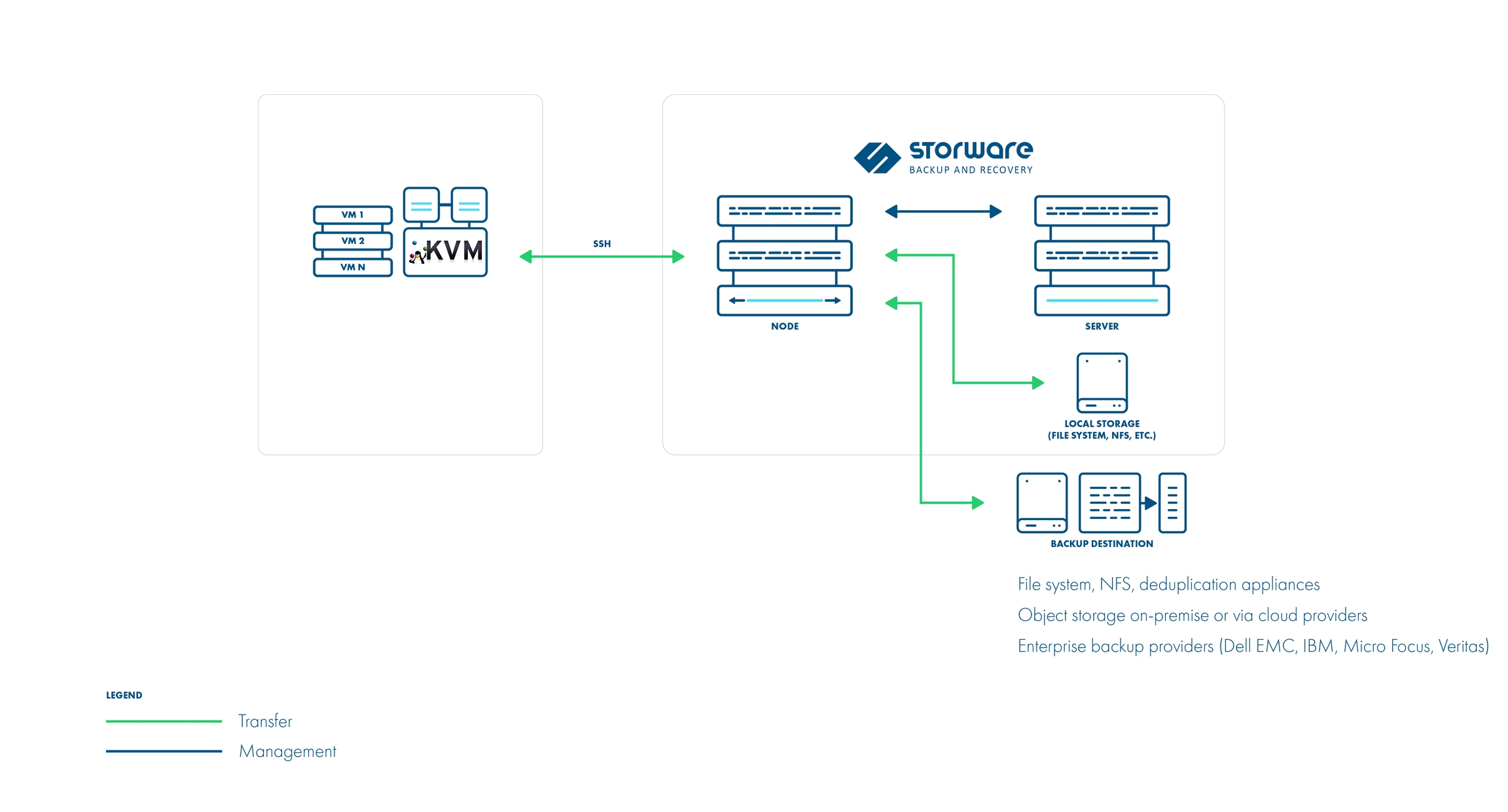

Storware Backup & Recovery access KVM/Xen (stand-alone libvirt) hosts over SSH. The Storware Backup & Recovery Node can be installed outside of the environment.

Backup Process

  • direct access to the hypervisor over SSH

  • crash-consistent snapshot taken directly using virsh (QCOW2/RAW file), lvcreate (LVM), rbd snapshot for Ceph (separate call for each storage backend) For QCOW2/RAW file, virsh snapshot-create-as is used when VM is running - otherwise, qemu-img create is used

  • optional application consistency using pre/post snapshot command execution

  • QCOW2/RAW-file/LVM data exported over SSH (optionally with netcat)

  • Ceph RBD data exported using rbd export or RBD-NBD when incremental is used If last stored snapshot is not missing, snapshot diffs are downloaded using rbd diff, then changes are written to inc file and diff file. If it is missing, export is treated as full, and then rbd export is used.

  • libvirt XML metadata saved • last snapshot kept on the hypervisor for the next incremental backup (if at least one schedule assigned to the VM has backup type set to incremental)

  • restore recreates files/volumes according to their backend (same transfer mechanism as used in backup) and then defines VM on the hypervisor

KVM/Xen (libvirt) environments require to have the correct entry in known_hosts on the node:

  • it must be known_hosts file that belongs to vprotect user

  • the algorithm must be set to ssh-rsa

  • make sure to have in your Node Configuration known_hosts file-path set to the location that is accessible for vprotect user - default /opt/vprotect/.ssh/known_hosts

  • if your user/group used on the KVM host is other than qemu:qemu then provide them in hypervisor details form when you add/update the hypervisor

KVM - VG scanning

Used with LVM-based VMs only. In order to allow VG scanning make sure to have your LVM packages up to date on the hypervisor. LVM reporting was one of the features added in RHEL/CentOS 7.3 and is used by Storware Backup & Recovery to collect information about VGs.

KVM - full libvirt installation

Public key authentication

Limitations

  • incremental backup is unavailable for LVM disks

CentOS-based KVM hypervisors may not have full libvirt available, specifically libvirt's blockcommit operation. If you need to change libvirt to the full version, make sure to follow the steps in this section: .

If you prefer to authenticate by using public keys instead of a password, follow the steps described in section.

Full versions of libvirt/qemu packages installation
SSH public key authentication
