Backup Destinations

PreviousInitial ConfigurationNextFile System

A backup destination is a storage location where Storware Backup & Recovery keeps VMs, Containers, Cloud, and applications backup copies. To configure a backup destination, you can use the following storage types:

The backup destination is defined by the backup provider configuration and retention settings. Each policy can be backed up to the selected backup destination. Backup destinations must be assigned to the nodes in the node configuration.

Note: removal of any backup destination leaves data in the backup provider without an option to re-attach it in the future.

Retention

Note: Retention settings are described in chapter Backup SLAs - Policy - Rule

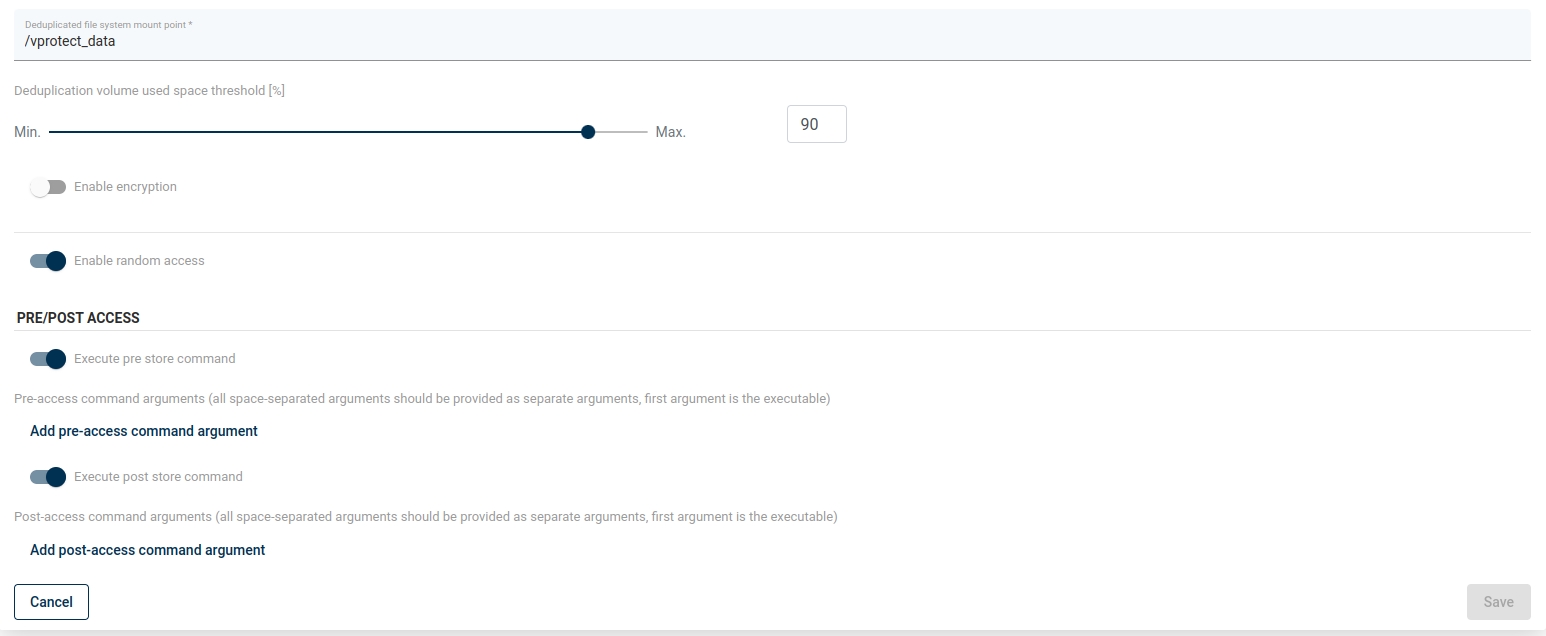

Pre/post access command execution

  • Prepare your scripts

    • the pre-script is invoked before every access to the Backup Destination - common usage - create and mount the remote volume

    • the post-script is executed after Node finishes store, restore, and clean-up operations

  • The following environment variables are set before each execution - you can use them later in your scripts:

    • VP_VM_GUID - GUID of the VM in Storware Backup & Recovery

    • VP_VM_UUID - UUID of the VM used by the hypervisor or hypervisor manager

    • VP_VM_NAME - the name of the VM

    • VP_VM_TMP_DIR - path to the folder containing files in the staging

    • VP_BD_GUID - GUID of the Backup Destination being accessed

    • VP_BD_NAME - the name of the Backup Destination being accessed

    • VP_CONTAINER_NAME - standard container name generated by Storware Backup & Recovery that can be used for names of the volumes (format <VM-NAME>__<PART-OF-UUID>, for example Centos 7__8d3ef6f1, may contain special characters)

    • VP_EXPORT_PATH - an export path from Node Configuration, can be used as the mount root for backup destination volumes

    • VP_TASK_TYPE - the name of the task type, e.g.: STORE/RESTORE/DELETE_VM/OLD_BACKUPS_REMOVAL - to distinguish operation type when scripts are being invoked

  • Upload your scripts to the node, where the vprotect user is able to access them

  • Optionally, you may need to add a new file in the /etc/sudoers.d/ directory to enable the vprotect user to execute privileged script (like chown operations in some file system locations): %vprotect ALL=(root) NOPASSWD: /opt/vprotect/scripts/myscripts/privileged.sh

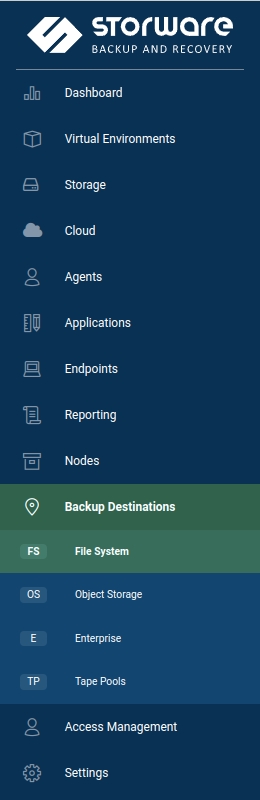

  • Open the "BACKUP DESTINATIONS" section from the left menu:

  • Open your Backup Destination (click on the name)

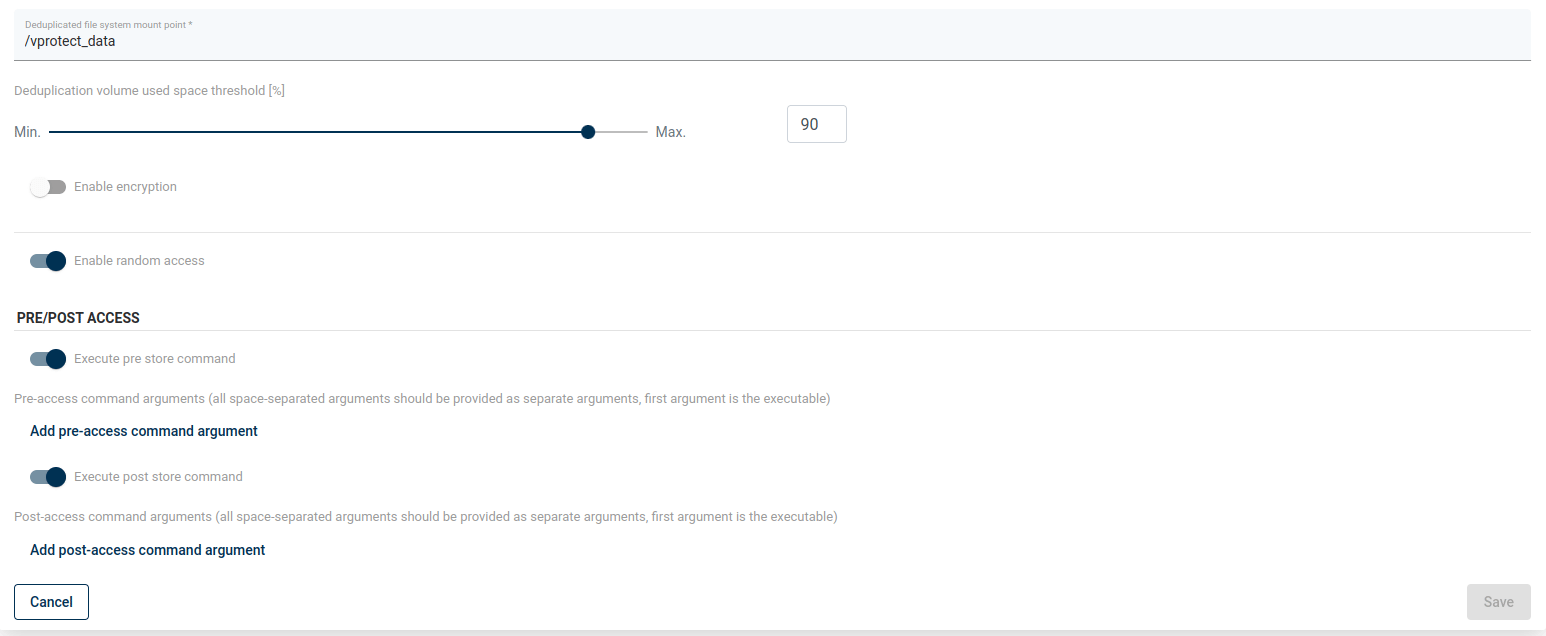

  • Provide pre/post access command arguments (the first argument is the command executed locally on the node):

Encryption

Backup Destination Name
Encryption supported?
Encrypted by
Encryption key stored in
Encryption key generation method
Encryption Algorithm

Filesystem

Yes

Storware Node

Generated based on metadata in the database. Separated keys are generated per object.

automatically

AES

Filesystem (synthetic, XFS)

No

n/a

n/a

n/a

n/a

isoLayer (synthetic, XFS)

n/a

n/a

n/a

n/a

n/a

PowerProtect DD

Yes

Storware Node

Generated based on metadata in the database. Separated keys are generated per object.

automatically

AES

Huawei OceanProtect

Yes

Storware Node

Generated based on metadata in the database. Separated keys are generated per object.

automatically

AES

MS Azure Blob Storage

Yes

Storware Node

Generated based on metadata in the database. Separated keys are generated per object.

automatically

AES

Amazon S3

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

S3 compatible

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

Cloudian S3

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

Alibaba Cloud OSS

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

Nutanix Objects

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

OpenStack Swift

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

Scality Ring

Yes

Server Side (Backup Destination own mechanism, not managed by Storware)

Generated based on metadata in the database. Separated keys are generated per object.

automatically

n/a

Dell EMC Avamar

Provider dependent

n/a

n/a

n/a

n/a

Dell EMC Networker

Provider dependent

n/a

n/a

n/a

n/a

IBM Spectrum Protect

Provider dependent

n/a

n/a

n/a

n/a

Veritas Netbackup

Provider dependent

n/a

n/a

n/a

n/a

Micro Focus Data Protector

Provider dependent

n/a

n/a

n/a

n/a
