Oracle Linux Virtualization Manager

General

For Oracle Linux Virtualization Manager (OLVM) environments, you can use API v4 for invoking all backup-related tasks.

Import/export mode defines the way the backups and restores are done. It supports the following modes:

Disk attachment, which exports VM metadata (in OVF format) with separate disk files (in RAW format) via the Proxy VM with the Node installed.
- incremental backup with a generic mechanism
- proxy VM required in each cluster - used for the disk attachment process
Disk image transfer, which exports VM metadata (in OVF format) with disk snapshot chains as separate files (QCOW2 format):
- supports incremental backup using deltas
- disk images are transferred directly from API (no Proxy VM required)
Change Block Tracking, this method backup only blocks with changes and skip zeroed sectors.
- supported since 4.4 (with Libvirt 6+, qemu-kvm 4.2+ and vdsm 4.40+)
- supports incremental backup using the dedicated CBT API

When adding OLVM hypervisor managers, use a URL similar to the following:

https://OLVM_MGR_HOST/ovirt-engine/api

Note: a username for OLVM environments needs to be provided in the user@domain format - for example admin@internal. This user must have all permissions related to managing snapshots, creating/removing VMs, operating disks, and exporting data.

Backup Strategies

OLVM environments can be protected in several ways.

Note:

Different strategies require a node to be installed either as a VM in the environment that you back up or installed separately.

All live snapshots are attempted with quiescing enabled. If the snapshot command fails because there is no compatible guest agent present, the live snapshot is re-initiated without the use-quiescing flag.

Disk attachment with Proxy VM

In this strategy, you have a VM called “Proxy VM” that invokes commands on your hypervisor manager to snapshot and attach drives of a specific VM to itself (Proxy VM). The proxy VM is able to read the data from the attached disk snapshots and forward them to the backup provider.

This strategy allows you to exclude drives from a backup that you do not need. Remember that you need to install 1 Proxy VM per cluster so that the drives the node tries to attach are reachable.

Drawback - no incremental backup for now.

Backup Process

crash-consistent snapshot using hypervisor's API
optionally FS freeze can be executed before snapshot can be executed (FS thaw once the snapshot is completed) if enabled and guest tools installed inside
optional application consistency using pre/post snapshot command execution
metadata exported from API
snapshot disks are mounted one by one to the Proxy VM
data read directly on the Proxy VM
incremental backups are not supported
restore creates empty disks on the Proxy VM, imports merged data then recreates VM and reattaches volumes to the target VM

Note: OLVM API v4 environments require Storware Backup & Recovery Node to be installed in one of the VMs residing in the OLVM cluster. Storware Backup & Recovery should automatically detect the VM with Storware Backup & Recovery during the index operation.

The disk attachment mode requires Virtio-SCSI to be enabled on the Storware Backup & Recovery Node VM (which can be enabled in VM settings -> Resource Allocation -> VirtIO-SCSI Enabled at the bottom).

During backup/restore operations, disks are transferred by attaching them to the proxy VM. This approach does not require an export storage domain to be set up.

Make sure you follow these steps: LVM setup on Storware Backup & Recovery Node for disk attachment backup mode.

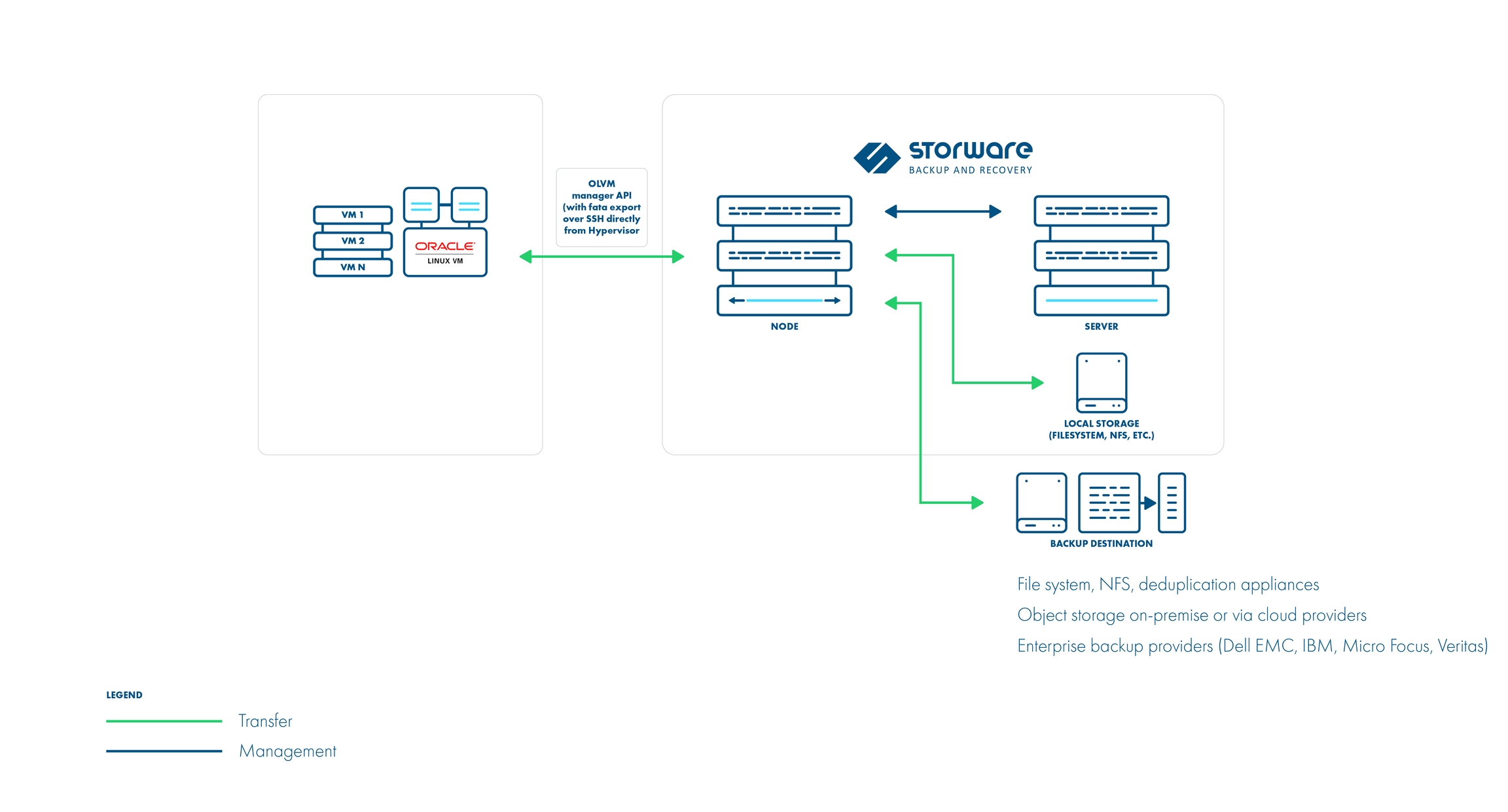

Disk image transfer API

This API appeared in OLVM 4.2 and allowed the export of individual snapshots directly from the OLVM manager. So instead of having to install multiple Proxy VMs, you can have a single external Node installation, which just invokes APIs via the OLVM manager.

This strategy supports incremental backups. Assuming you have OLVM 4.2 or newer – just add your manager to Storware Backup & Recovery and setup is done. From a network perspective, it requires two additional ports to be opened - 54322 and 54323 - and your data to be pulled from the hypervisor manager.

Unfortunately, there are a few problems with the current architecture of this solution. The biggest issue is that all traffic passes via the OLVM manager, which may impact the transfer rates that you can achieve during the backup process. To put that into perspective – in disk attachment, you can basically read data as if it is a local drive, where it could potentially be deduplicated even before it is transferred to the backup destination.

Note: From OLVM version 4.4.3, data is transferred directly from/to hosts.

Backup Process

crash-consistent snapshot using hypervisor's API
optionally FS freeze can be executed before snapshot can be executed (FS thaw once the snapshot is completed) if enabled and guest tools installed inside
optional application consistency using pre/post snapshot command execution
metadata exported from API
data transfer initiated on the manager and actual data exported from the hypervisor using imageio API
incremental backups use the same APIs, but requests for changed blocks only
the last snapshot kept on the hypervisor for the next incremental backup (if at least one schedule assigned to the VM has a backup type set to incremental)
restore recreates VM from metadata using API and imports merged chain of data for each disk using imageio API

Disk image transfer mode exports data directly using OLVM 4.2+ API. There is no need to set up an export storage domain or setup LVM. This mode uses snapshot chains provided by OLVM.

You may need to open communication for the additional port 54323 on the OLVM manager and 54322 on the OLVM hosts - it needs to be accessible from Storware Backup & Recovery Node. Also, make sure that your ovirt-imageio-proxy services are running and properly configured (you can verify it by trying to upload images with OLVM UI).

Follow the steps in this section: Full versions of libvirt/qemu packages installation.

Instant restore

To use an instant restore feature, backup destination from which VM will be restored, has to be of a synthetic type. The restore process creates a NFS share on the Storware Backup & Recovery node, later this share is attached to the RHV as a new storage domain. Then it creates a new virtual machine and attaches the disks from the newly created storage domain to it. To use instant restore you have to click the restore button in the instances list and choose the option instant restore.

Live migration

You can enable the live migration option during instant restore. It will automatically start the disks migration to the chosen storage after the VM is restored and powered on.

Supported features

Supported backup strategies: Disk attachment, Image transfer, CBT (preferred)

Disk attachment

Image transfer

CBT

Supported versions

4.5

The last snapshot is kept on the hypervisor for incremental backups

Yes

Access to hypervisor OS required

Proxy VM required

Yes

Full backup

Supported

Incremental backup

Not supported

Supported

Restore

Supported

File-level restore

Supported

VM disk exclusion

Supported

Quiesced snapshots

Supported

Snapshots management

Supported

Pre/post command execution

Supported

Access to VM disk backup over iSCSI

Supported

Supported *

Supported

VM name-based policy assignment

Supported

VM tag-based policy assignment

Supported

Power-on VM after restore

Supported

* Only for RAW disk types

Network requirements

Disk attachment

Connection URL: https://MANAGER_HOST/ovirt-engine/api

Source

Destination

Ports

Description

Node

oVirt/RHV/OLVM manager

443/tcp

oVirt/RHV/OLVM API access

Disk Image Transfer

Connection URL: https://MANAGER_HOST/ovirt-engine/api

Source

Destination

Ports

Description

Node

oVirt/RHV/OLVM manager

443/tcp

oVirt/RHV/OLVM API access

Node

oVirt/RHV/OLVM hypervisor

54322/tcp

oVirt/RHV/OLVM ImageIO services - for data transfer (primary source)

Node

oVirt/RHV/OLVM manager

54323/tcp

oVirt/RHV/OLVM ImageIO services - for data transfer (fallback to ImageIO Proxy)

Change-Block Tracking

Connection URL: https://MANAGER_HOST/ovirt-engine/api

Source

Destination

Ports

Description

Node

oVirt/RHV/OLVM manager

443/tcp

oVirt/RHV/OLVM API access

Node

oVirt/RHV/OLVM hypervisor

54322/tcp

oVirt/RHV/OLVM ImageIO services - for data transfer

Node

oVirt/RHV/OLVM manager

54323/tcp

oVirt/RHV/OLVM ImageIO services - for data transfer
