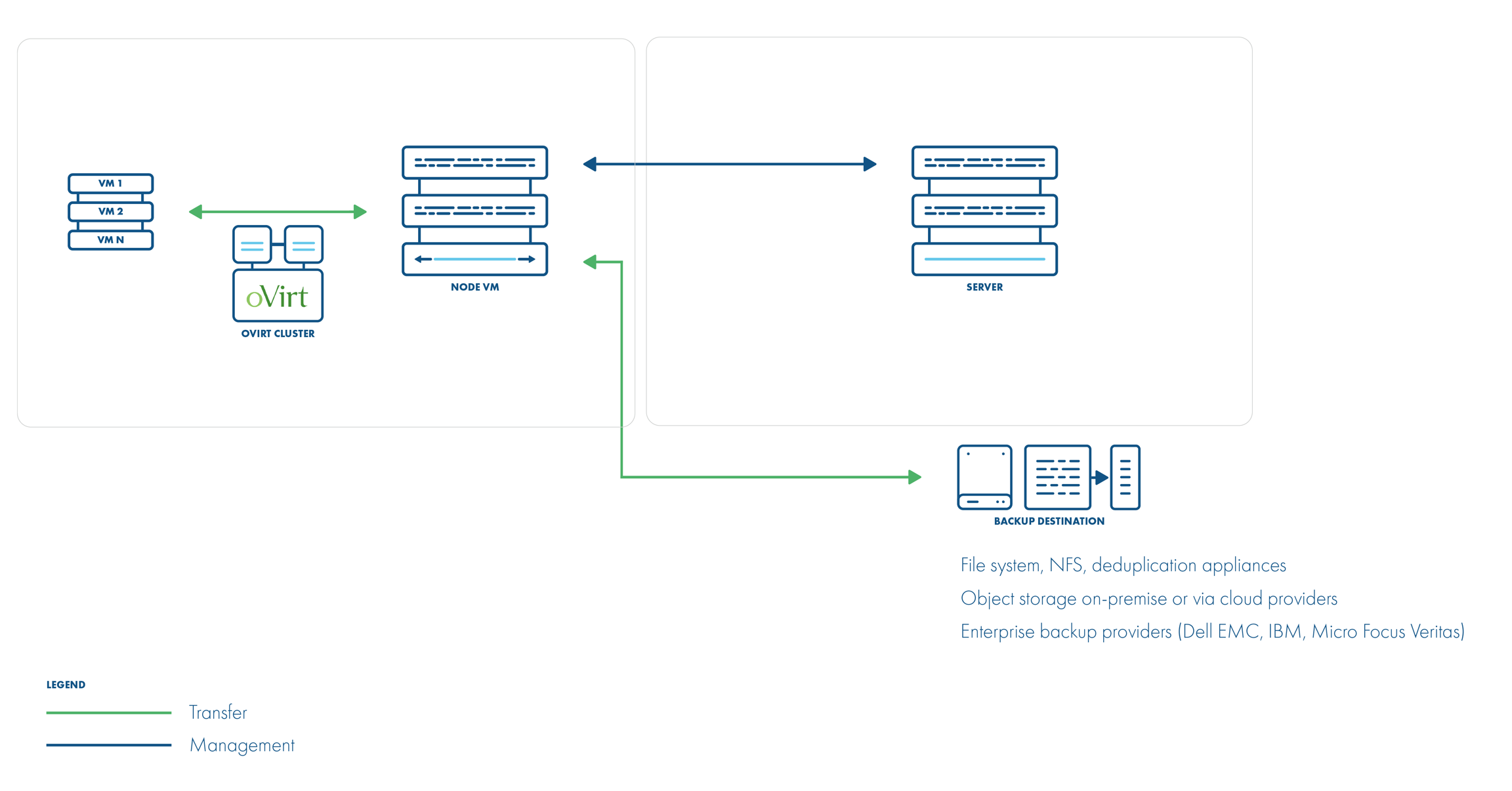

# oVirt ## General For oVirt 4+ environments, you can use API v4 for invoking all backup-related tasks. Import/export mode defines the way the backups and restores are done. oVirt (with API v4) supports the following modes: 1. **Disk attachment**, which exports VM metadata (in OVF format) with separate disk files (in RAW format) via the Proxy VM with the Node installed. * incremental backup with a generic mechanism * proxy VM required in each cluster - used for the disk attachment process 2. **Disk image transfer**, which exports VM metadata (in OVF format) with disk snapshot chains as separate files (QCOW2 format): * supports incremental backup using deltas * disk images are transferred directly from API (no Proxy VM required) 3. **Change Block Tracking,** this method backup only blocks with changes and skip zeroed sectors. * supported since 4.4 (with Libvirt 6+, qemu-kvm 4.2+ and vdsm 4.40+) * supports incremental backup using the dedicated CBT API {% hint style="info" %} **Note:** When using backup APIs - Red Hat highly recommends to update oVirt environment to the most recent version (4.4 - at the time of writing) - refer to this [article](https://access.redhat.com/articles/6379751) for more information. {% endhint %} When adding oVirt 4.0+ hypervisor managers, use a URL similar to the following: ``` https://oVirt_MGR_HOST/ovirt-engine/api ``` {% hint style="info" %} **Note:** a username for oVirt environments needs to be provided in the **user\@domain** format - for example **admin\@internal**. This user must have all permissions related to managing snapshots, creating/removing VMs, operating disks, and exporting data. {% endhint %} ## Backup Strategies oVirt environments can be protected in several ways. {% hint style="info" %} **Note:** Different strategies require a node to be installed either as a VM on the environment that you back up or installed separately. All live snapshots are attempted with quiescing enabled. If the snapshot command fails because there is no compatible guest agent present, the live snapshot is re-initiated without the use-quiescing flag. {% endhint %} ### Disk attachment with Proxy VM In this strategy, you have a VM called “Proxy VM” that invokes commands on your hypervisor manager to snapshot and attach drives of a specific VM to itself (Proxy VM). Proxy VM is able to read the data from the attached disk snapshots and forward them to the backup provider. This strategy allows you to exclude drives from a backup that you do not need. Remember that you need to install 1 Proxy VM per cluster so that the drives the node tries to attach are reachable. Drawback - no incremental backup for now. ![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/VbGquiVKNSWrPtyIZ7ES/protecting_ve-virtual_machines-ovirt-disk-attachment.png) #### **Backup Process** * crash-consistent snapshot using hypervisor's API * optionally FS freeze can be executed before snapshot can be executed (FS thaw once the snapshot is completed) if enabled and guest tools installed inside * optional application consistency using pre/post snapshot command execution * metadata exported from API * snapshot disks are mounted one by one to the Proxy VM * data read directly on the Proxy VM * incremental backups are not supported * restore creates empty disks on the Proxy VM, imports merged data then recreates VM and reattaches volumes to the target VM {% hint style="info" %} **Note**: oVirt API v4 environments require Storware Backup & Recovery Node to be installed in one of the VMs residing in the oVirt cluster. Storware Backup & Recovery should automatically detect the VM with Storware Backup & Recovery during the index operation. {% endhint %} Disk attachment mode requires `Virtio-SCSI` to be enabled on the Storware Backup & Recovery Node VM (which can be enabled in VM settings -> `Resource Allocation` -> `VirtIO-SCSI Enabled` at the bottom). During backup/restore operations, disks are transferred by attaching them to the proxy VM. This approach does not require an export storage domain to be set up. Make sure you follow these steps: [LVM setup on Storware Backup & Recovery Node for disk attachment backup mode](https://docs.storware.eu/deployment/common-tasks/lvm-setup-on-storware-backup-and-recovery-node-for-disk-attachment-backup-mode). ### Disk image transfer API This API appeared in oVirt 4.2 and allowed the export of individual snapshots directly from the oVirt manager. So instead of having to install multiple Proxy VMs, you can have a single external Node installation, which just invokes APIs via the oVirt manager. This strategy supports incremental backups. Assuming you have oVirt 4.2 or newer – just add your manager to Storware Backup & Recovery and the setup is done. From a network perspective, it requires two additional ports to be opened - 54322 and 54323 - and your data to be pulled from the hypervisor manager. Unfortunately, there are a few problems with the current architecture of this solution. The biggest issue is that all traffic passes via the oVirt manager, which may impact the transfer rates that you can achieve during the backup process. To put that into perspective – in disk attachment, you can basically read data as if it is a local drive, where it could potentially be deduplicated even before it is transferred to the backup destination. {% hint style="info" %} **Note:** From oVirt version 4.4.3, data is transferred directly from/to hosts. {% endhint %} ![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/hPObR0g1HgFBF0Jlup6B/protecting_ve-virtual_machines-ovirt-disk-image-transfer.png) #### Backup Process * crash-consistent snapshot using hypervisor's API * optionally FS freeze can be executed before snapshot can be executed (FS thaw once the snapshot is completed) if enabled and guest tools installed inside * optional application consistency using pre/post snapshot command execution * metadata exported from API * data transfer initiated on the manager and actual data exported from the hypervisor using imageio API * incremental backups use the same APIs, but requests for changed blocks only * the last snapshot kept on the hypervisor for the next incremental backup (if at least one schedule assigned to the VM has the backup type set to incremental) * restore recreates VM from metadata using API and imports merged chain of data for each disk using imageio API Disk image transfer mode exports data directly using oVirt 4.2+ API. There is no need to set up an export storage domain or setup LVM. This mode uses snapshot chains provided by oVirt. You may need to open communication for the additional port **54323** on the oVirt manager and **54322** on the oVirt hosts - it needs to be accessible from Storware Backup & Recovery Node. Also make sure that your **ovirt-imageio-proxy** services are running and properly configured (you can verify it by trying to upload images with oVirt UI). Follow the steps in this section:[ Full versions of libvirt/qemu packages installation](https://docs.storware.eu/deployment/common-tasks/full-versions-of-libvirt-qemu-packages-installation). ### Change Block Tracking This is a new method which is possible thanks to changes in oVirt 4.4. It uses information about zeroed and changed blocks to reduce data size and make the process faster. ![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/58OxHR0DHTXpgprcNM67/protecting_ve-virtual_machines-ovirt-cbt.png) This strategy supports incremental backups. The QCOW2 format is required for incremental backups, so disks enabled for the incremental backup will use the QCOW2 format instead of the raw format. Also, this strategy doesn't need snapshots in the backup process. Instead, every incremental backup uses a checkpoint that is a point in time that was created after the previous backup. ## Instant restore To use an instant restore feature, backup destination from which VM will be restored, has to be of a synthetic type. The restore process creates a NFS share on the Storware Backup & Recovery node, later this share is attached to the RHV as a new storage domain. Then it creates a new virtual machine and attaches the disks from the newly created storage domain to it. ​ To use instant restore you have to click the restore button in the instances list and choose the option **instant restore**. ![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/5ljW4WhSPC4YpuWDQNm0/protecting_ve-virtual_machines-rhv-instant_restore.png) ​ ## Live migration You can enable the live migration option during instant restore. It will automatically start the disks migration to the chosen storage after the VM is restored and powered on. ## Supported features **Supported backup strategies:** Disk attachment, Image transfer, CBT (preferred)
Disk attachmentImage transferCBT
Supported versions4.54.54.5
The last snapshot is kept on the hypervisor for incremental backupsNoYesNo
Access to hypervisor OS requiredNoNoNo
Proxy VM requiredYesNoNo
Disk attachmentImage TransferCBT
Full backupSupportedSupportedSupported
Incremental backupNot supportedSupportedSupported
Synthetic backupsSupportedSupportedSupported
File-level restoreSupportedSupportedSupported
VM disk exclusionSupportedSupportedSupported
Quiesced snapshotsSupportedSupportedSupported
Snapshots managementSupportedSupportedSupported
Pre/post command executionSupportedSupportedSupported
Access to VM disk backup over iSCSISupportedSupported *Supported
VM name-based policy assignmentSupportedSupportedSupported
VM tag-based policy assignmentSupportedSupportedSupported
Power-on VM after restoreSupportedSupportedSupported
*\* Only for RAW disk types* ## Network requirements ### Disk attachment **Connection URL:** `https://MANAGER_HOST/ovirt-engine/api` | Source | Destination | Ports | Description | | ------ | ---------------------- | ------- | ------------------------- | | Node | oVirt/RHV/OLVM manager | 443/tcp | oVirt/RHV/OLVM API access | ### Disk Image Transfer **Connection URL:** `https://MANAGER_HOST/ovirt-engine/api` | Source | Destination | Ports | Description | | ------ | ------------------------- | --------- | ------------------------------------------------------------------------------- | | Node | oVirt/RHV/OLVM manager | 443/tcp | oVirt/RHV/OLVM API access | | Node | oVirt/RHV/OLVM hypervisor | 54322/tcp | oVirt/RHV/OLVM ImageIO services - for data transfer (primary source) | | Node | oVirt/RHV/OLVM manager | 54323/tcp | oVirt/RHV/OLVM ImageIO services - for data transfer (fallback to ImageIO Proxy) | ### Change-Block Tracking **Connection URL:** `https://MANAGER_HOST/ovirt-engine/api` | Source | Destination | Ports | Description | | ------ | ------------------------- | --------- | --------------------------------------------------- | | Node | oVirt/RHV/OLVM manager | 443/tcp | oVirt/RHV/OLVM API access | | Node | oVirt/RHV/OLVM hypervisor | 54322/tcp | oVirt/RHV/OLVM ImageIO services - for data transfer | | Node | oVirt/RHV/OLVM manager | 54323/tcp | oVirt/RHV/OLVM ImageIO services - for data transfer |
