OpenStack UI Plugin

Overview

Integration with the Openstack interface is our second plugin alongside the oVirt/RHV virtualization family. Thanks to it, you can perform most of the basic operations without logging into the Storware Backup & Recovery dashboard.

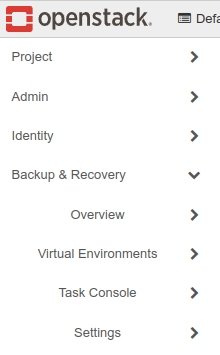

After installation (which is described at the end of this article) you will see a new tab "Backup & Recovery" in the OpenStack menu. This consists of several sub-tabs that allow you to perform basic actions such as backup, restore or create a new schedule.

Dashboard

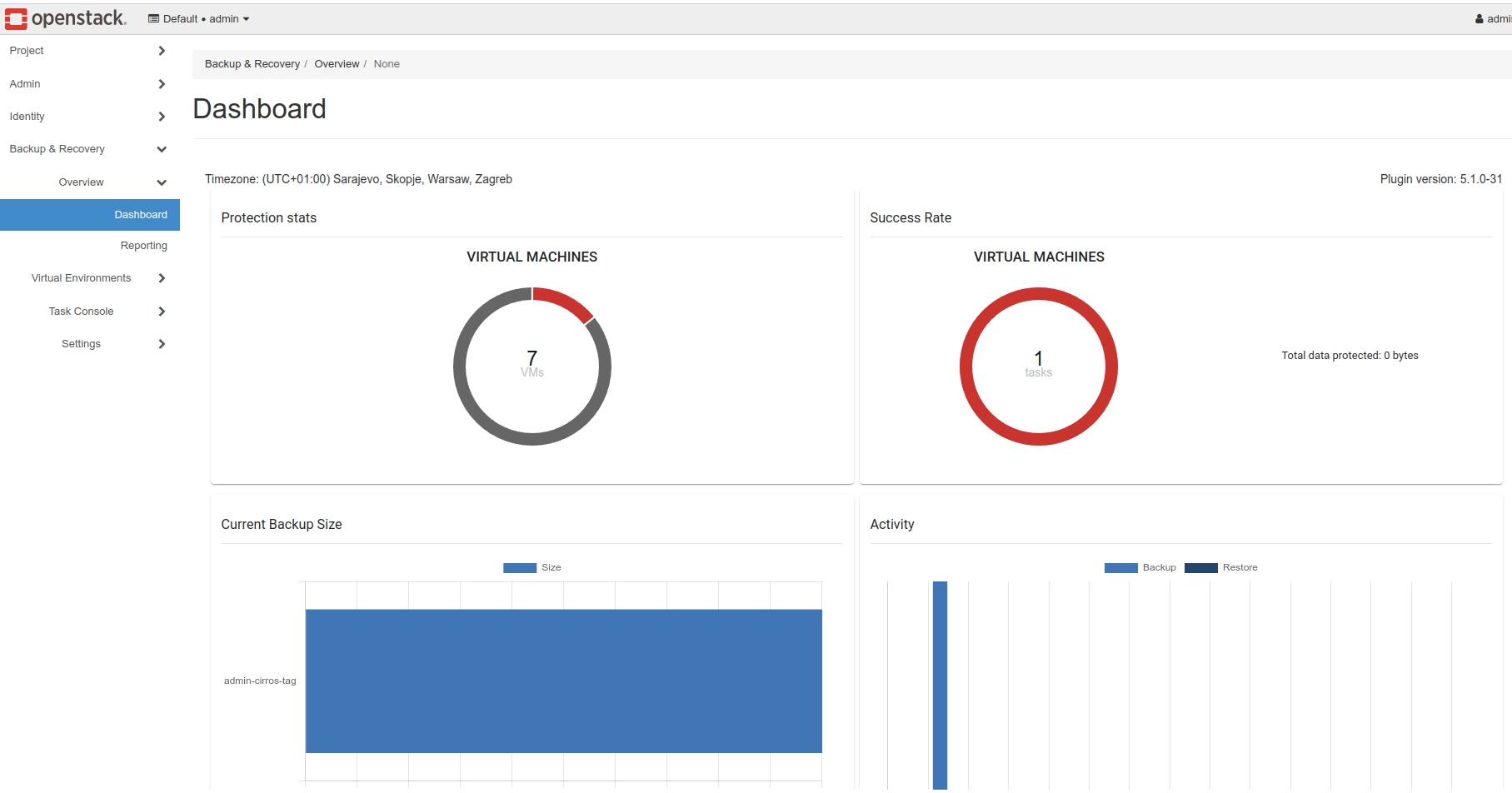

Divided into a few sections, it makes it possible to view and set the most vital options related to management, monitoring, and reporting.

Reporting

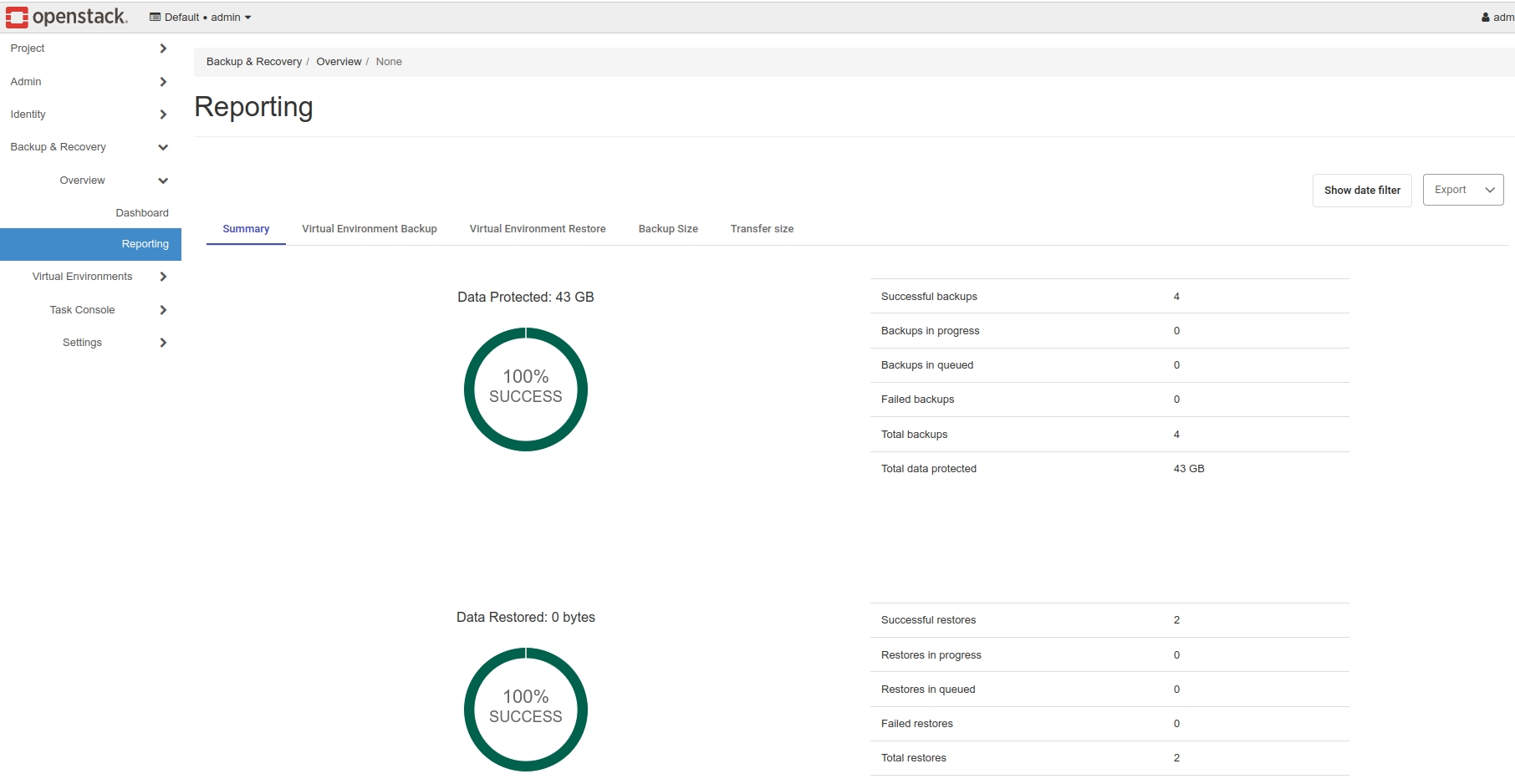

Reporting allow users to view statistics, especially for backup and restore tasks. They also provide the possibility to view what has happened lately in the Storware Backup & Recovery environment.

Virtual Environments

Instances

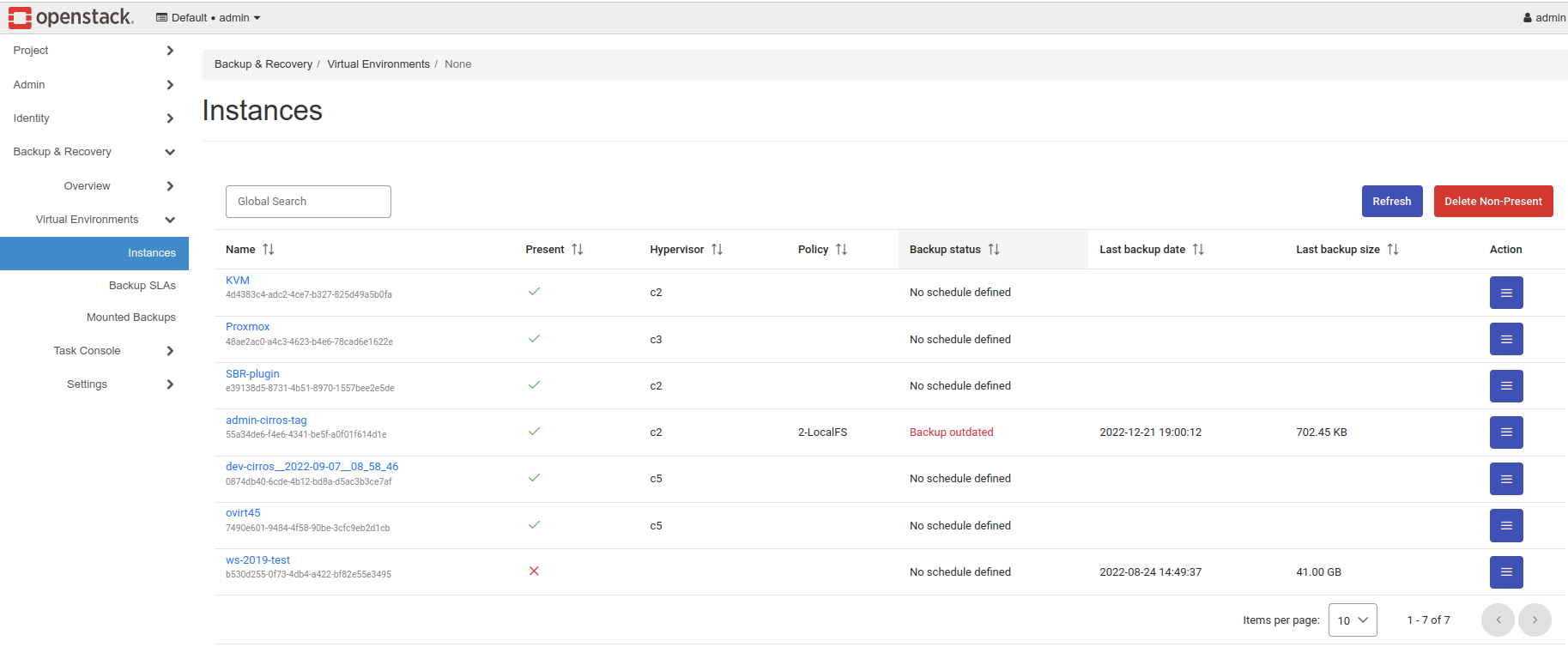

This tab shows all inventoried instances in your OpenStack environment.

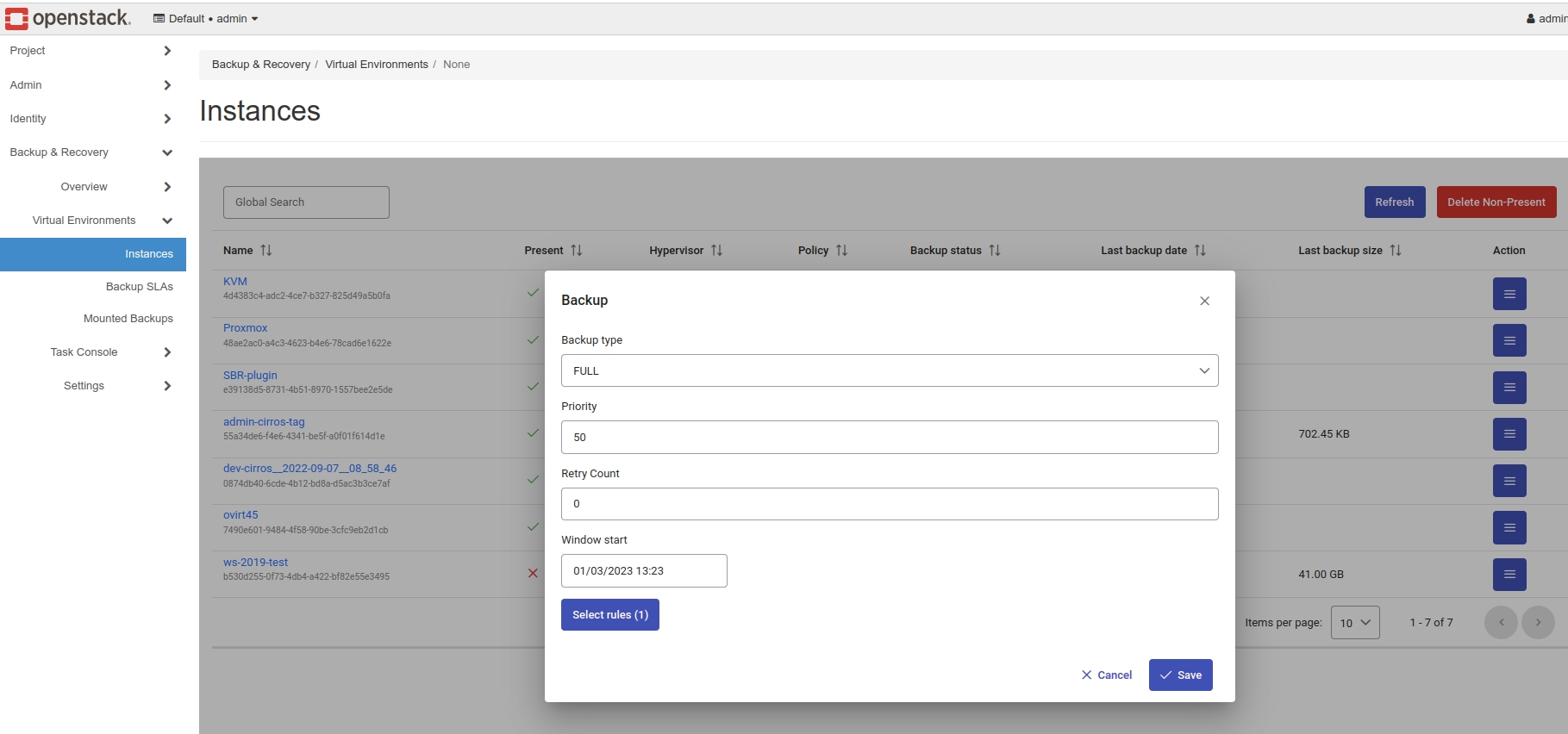

Besides, you can also perform basic backup operations.

Backup SLAs

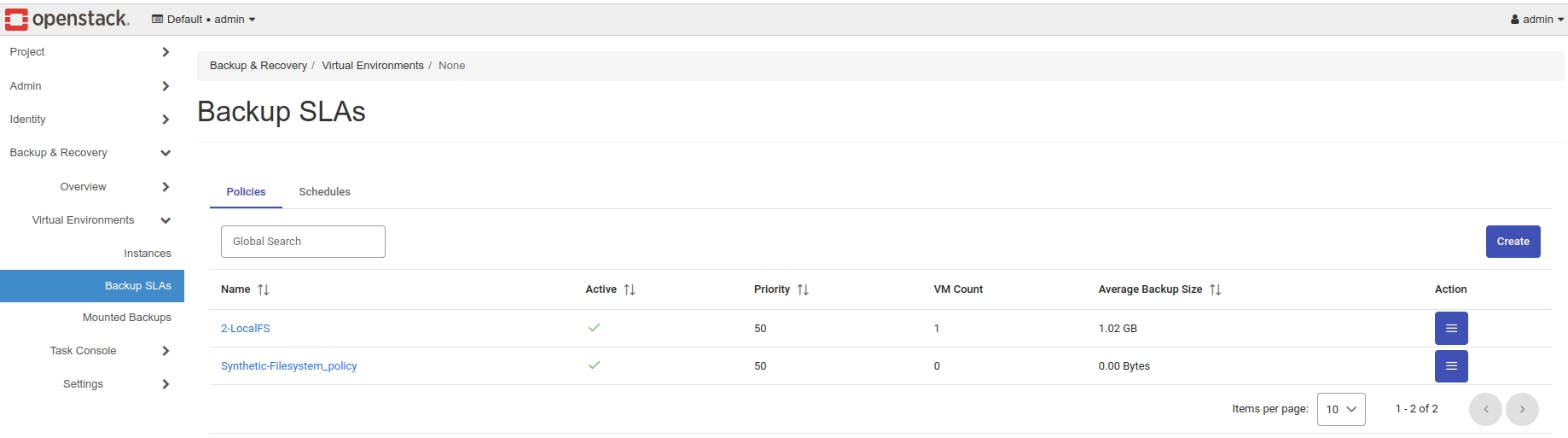

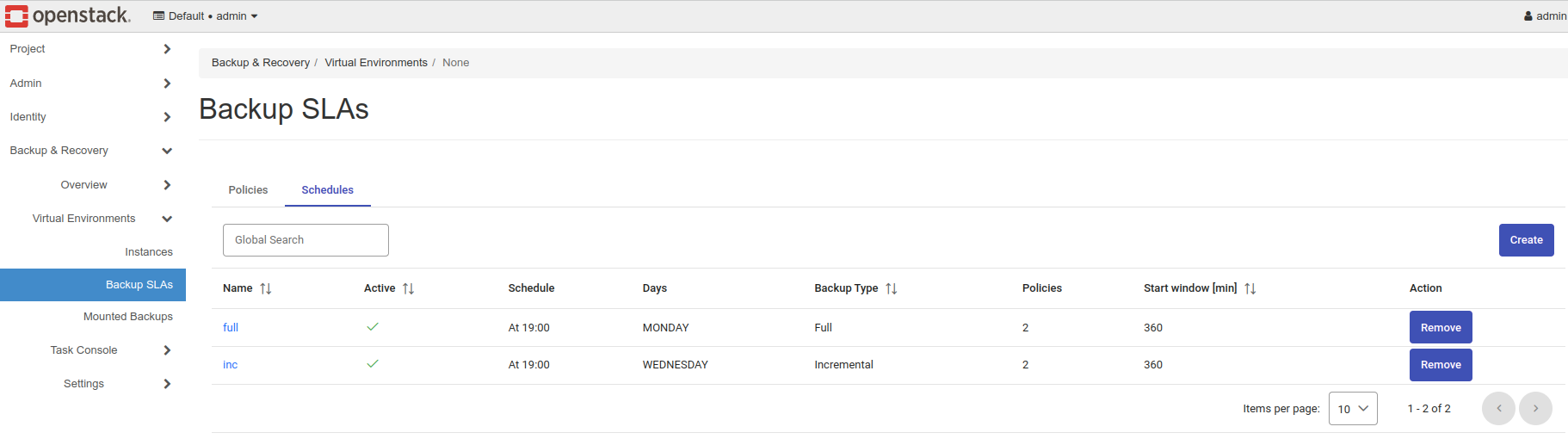

Our plugin also allows you to create or manage backup policies

and schedules.

Mounted Backups

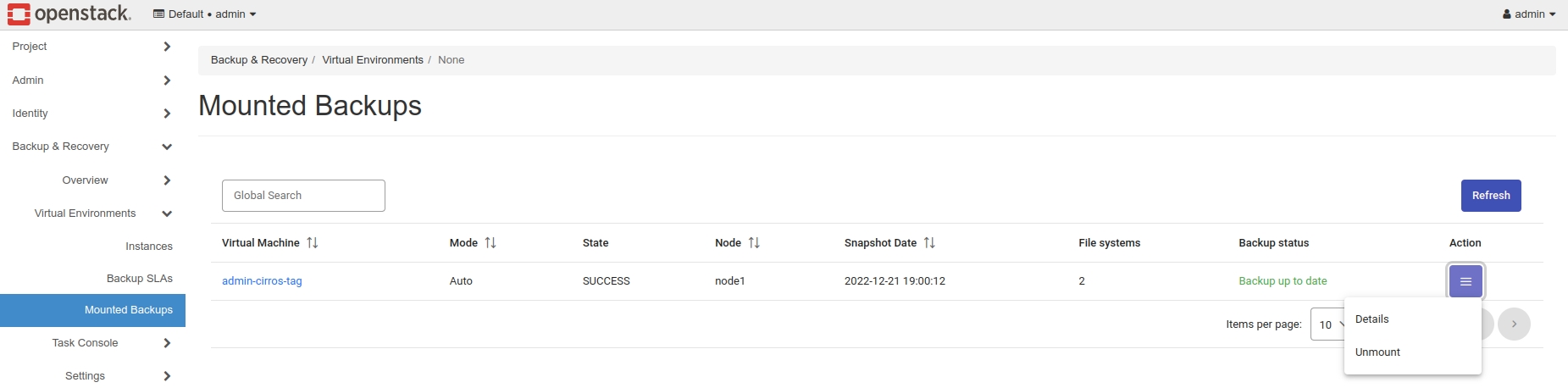

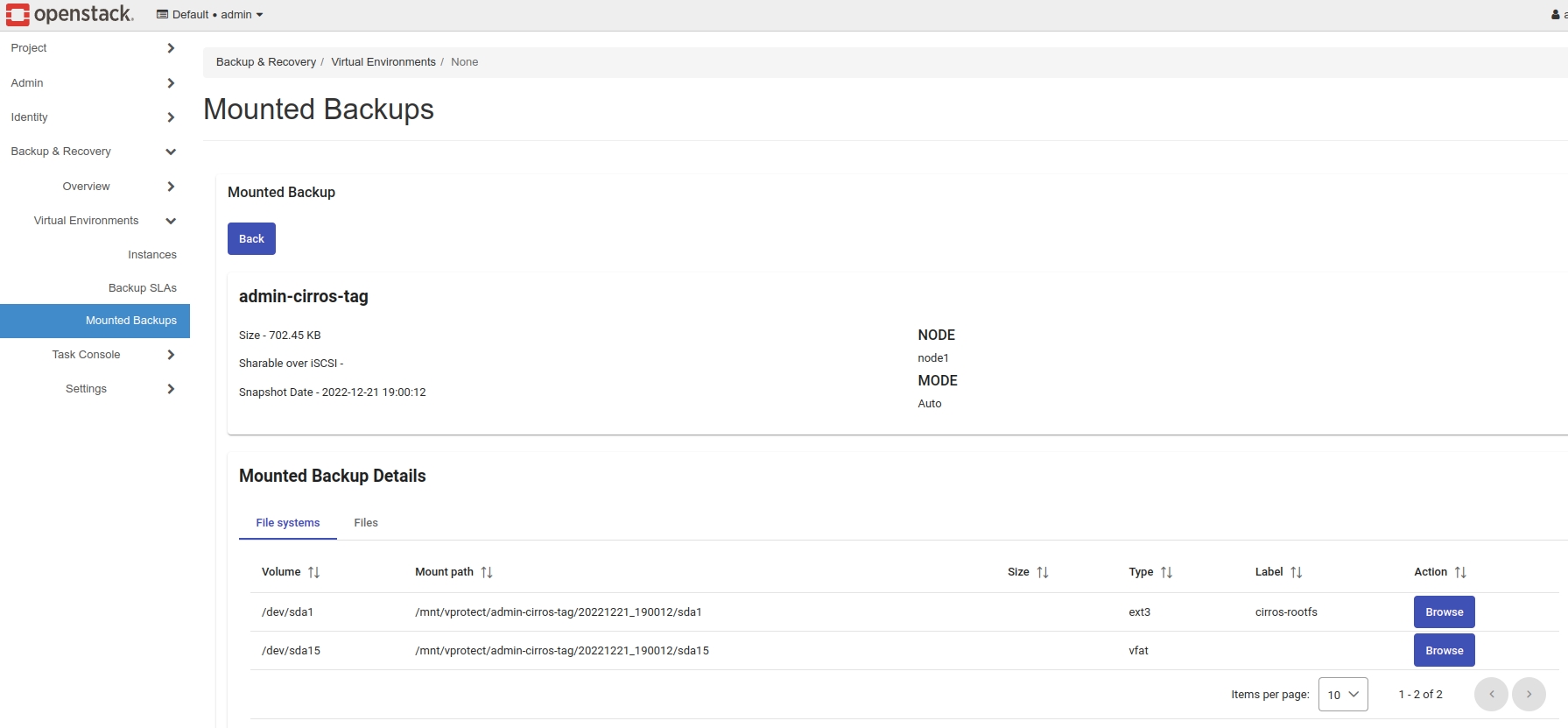

Finally, you can also browse your mounted backups from the OpenStack dashboard. You only need to enter the backup details using the menu on the right.

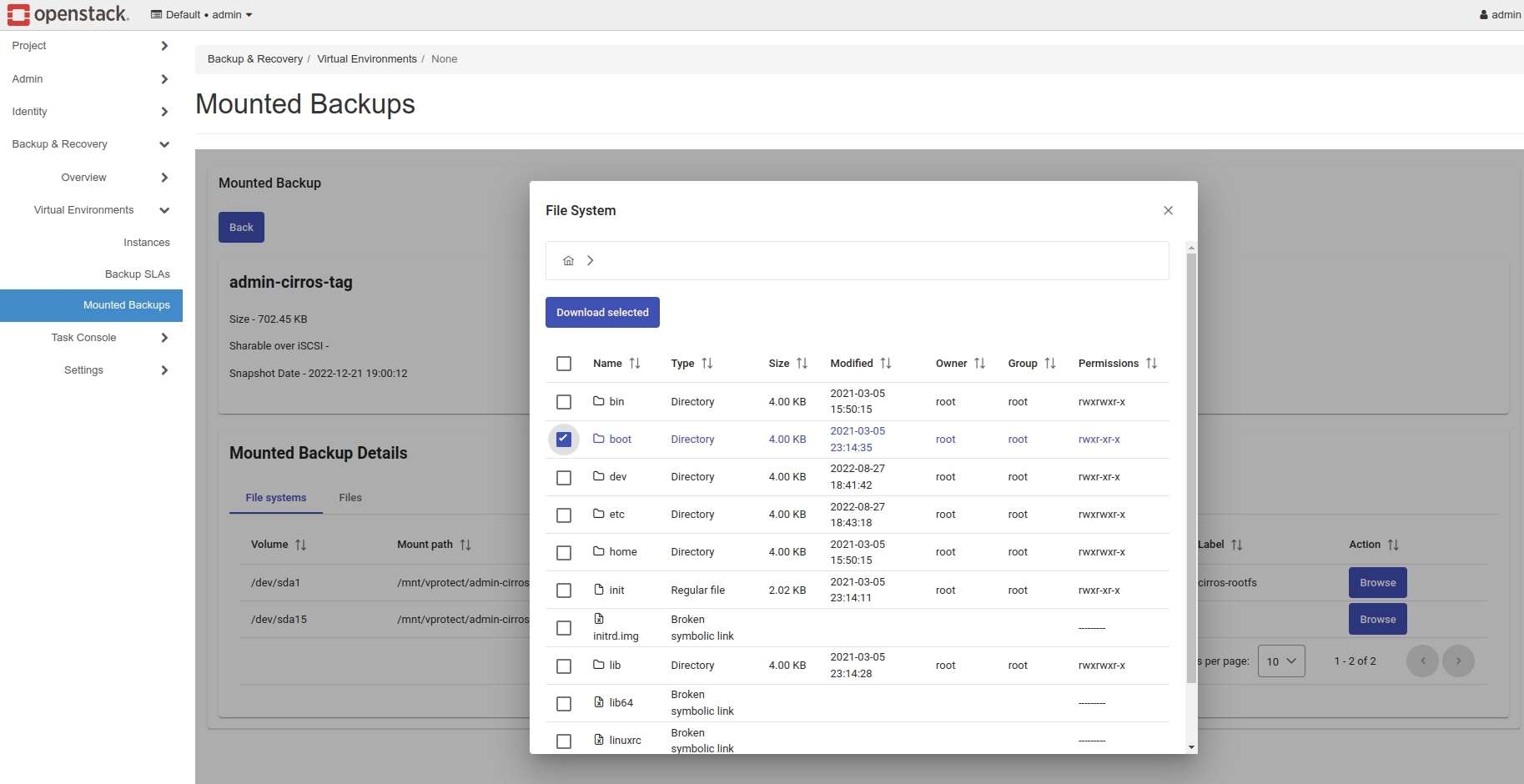

From here we can see the basic information about the backup and start browsing the files using the "Browse" button on the right.

Just select a folder or file and then click on the "download selected" button to have the files on your computer.

Task Console

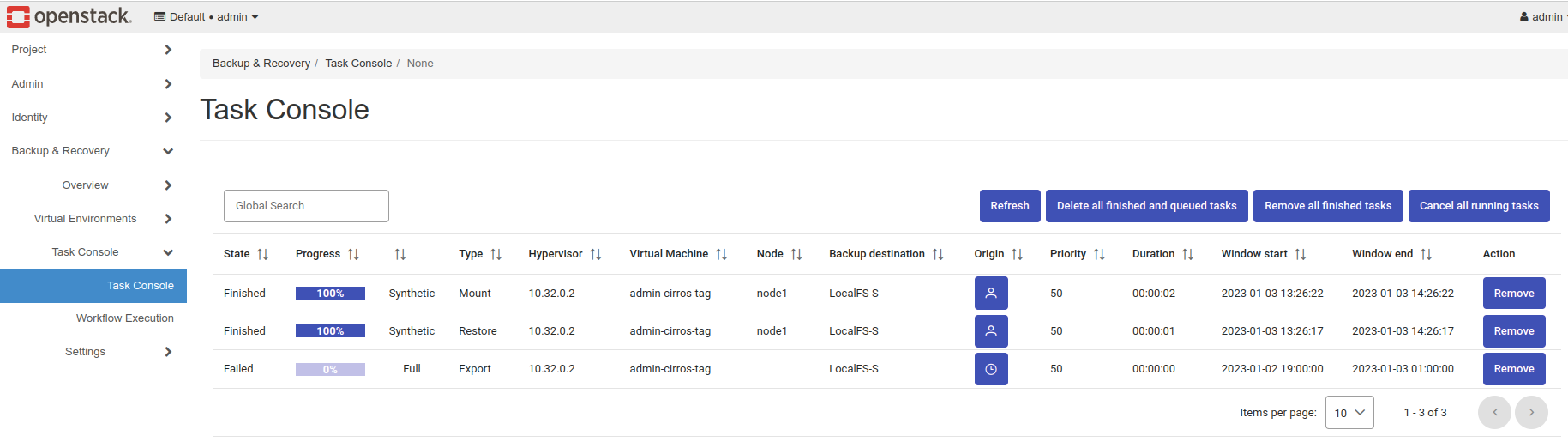

Basic information about current tasks performed by Storware Backup & Recovery.

Settings

Mailing

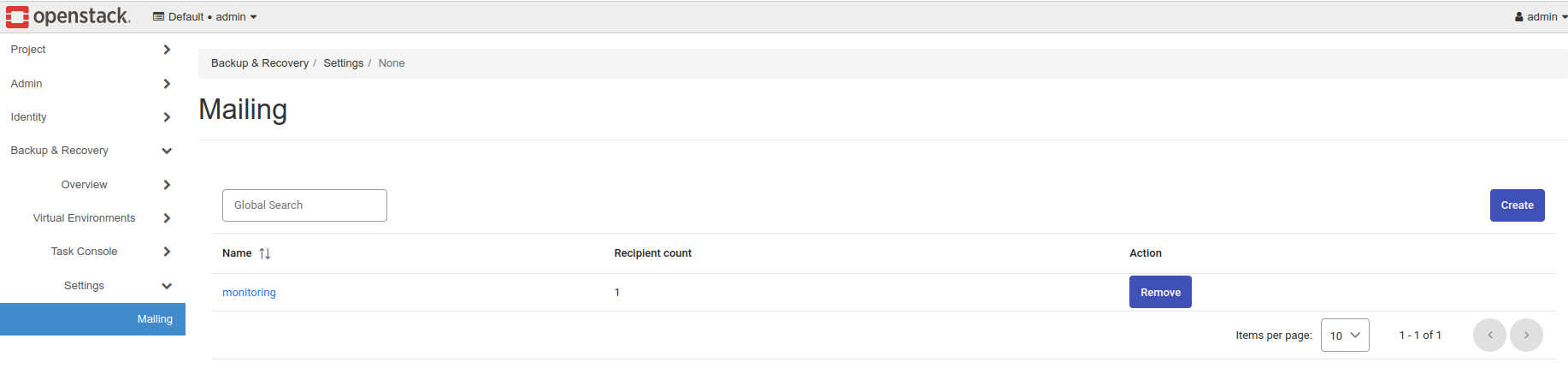

It allows you to create a mailing list that can be used for sending group report e-mails.

OpenStack general integration setup

You can find minimum requirements for OpenStack UI Plugin in Support Matrix

You can find the add-on in the GitHub repository. Extract the provided archive onto your Horizon host and execute python install.py STORWARE_API_URL USER PASSWORD

Example: python install.py http://localhost:8080/api admin vprotect.

Note: you need to restart your Horizon HTTP server after this

The above-mentioned script will copy the plug-in files to the following folders:

• /usr/share/openstack-dashboard/openstack_dashboard/dashboards/vprotect - plugin files

• /usr/share/openstack-dashboard/openstack_dashboard/enabled - file to enable the plugin

In order to uninstall it, remove the vprotect subfolder and enabled/_50_vprotect.py file and restart your Horizon HTTP server.

Integrate Storware Backup & Recovery dashboard plugin to OpenStack (LXC)

Requirements:

• git, python3-yaml packages

• internet connection

1. Check the name of the horizon container:

   lxc-ls -f | grep horizon

   example:

   [root@aio1 ~]# lxc-ls -f | grep horizon  aio1_horizon_container-b2daccaa RUNNING 1 onboot, openstack 10.255.255.213, 172.29.239.229 - false

2. Enter horizon container:

   [root@aio1 ~]# lxc-attach aio1_horizon_container-b2daccaa

3. Install requirements packages:

   root@aio1-horizon-container-b2daccaa:~# apt install python3-yaml git -y

4. Clone from github installations files:

   root@aio1-horizon-container-b2daccaa:~# git clone https://github.com/Storware/openstack-horizon-ui-vprotect-extensions

5. Change owner of the plugin directory to horizon:horizon

   root@aio1-horizon-container-b2daccaa:~# chown -R horizon:horizon openstack-horizon-ui-vprotect-extensions

6. Enter plugin directory:

   root@aio1-horizon-container-b2daccaa:~# cd openstack-horizon-ui-vprotect-extensions

7. Optionally you can ping Storware Backup & Recovery server by ping

   root@aio1-horizon-container-b2daccaa:~# ping storware-server-IP-ADDRESS

8. Next, install the plugin

   root@aio1-horizon-container-b2daccaa:~# python3 install.py http://storware-ip:8080/api admin_user admin_password

   When the installation process is completed, plugin files should be placed in /usr/share/openstack-dashboard/openstack_dashboard directory. If your path to the dashboard directory is different, create symbolic links from plugin install directories to non-standard directories.

   Example:

   root@aio1-horizon-container-b2daccaa:~# ln -s /usr/share/openstack-dashboard/openstack_dashboard/dashboards/vprotect /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/openstack_dashboard/dashboards/

   root@aio1-horizon-container-b2daccaa:~#  ln -s /usr/share/openstack-dashboard/static/vprotect /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/static/

   root@aio1-horizon-container-b2daccaa:~#  ln -s /usr/share/openstack-dashboard/openstack_dashboard/enabled/_50_vprotect.py /openstack/venvs/horizon-23.1.0.dev42/lib/python3.8/dist-packages/openstack_dashboard/enabled/

9. Edit /etc/apache2/sites-available/openstack-dashboard.conf file:

   • Add alias for static files

   Alias /dashboard/static /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/static/

   • Directory tag informs you, where dashboards directories should be placed.

   • Second Directory tag informs where static directory from plugin should be placed.

   Example: configuration file should look like this:

   # Ansible managed

   # If horizon is being served via SSL from this web server,
   # then we must redirect HTTP requests to HTTPS.

   # If horizon is being served via SSL via a load balancer, we
   # need to listen via HTTP on this web server. If SSL is not
   # enabled, then the same applies.
   <VirtualHost 172.29.239.229:80>
   ServerName aio1-horizon-container-b2daccaa.openstack.local
   LogLevel info
   ErrorLog syslog:daemon
   CustomLog "|/usr/bin/env logger -p [daemon.info](http://daemon.info/) -t apache2" "%h %l %u \"%r\" %>s %b \"%{Referer}i\" \"%{User-agent}i\""
   Options +FollowSymLinks
   RequestHeader set X-Forwarded-Proto "https"

   WSGIScriptAlias / /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/openstack_dashboard/wsgi.py
   WSGIDaemonProcess horizon user=horizon group=horizon processes=1 threads=1 python-path=/openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/site-packages

   WSGIProcessGroup horizon
   WSGIApplicationGroup %{GLOBAL}

   <Directory /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/openstack_dashboard>
   <Files wsgi.py >
   <IfVersion < 2.4>
   Order allow,deny
   Allow from all
   </IfVersion>
   <IfVersion >= 2.4>
   Require all granted
   </IfVersion>
   </Files>
   </Directory>

   Alias /static /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/static/
   Alias /dashboard/static /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/static/

   <Directory /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/static/>
   Options -FollowSymlinks
   <IfVersion < 2.4>
   AllowOverride None
   Order allow,deny
   Allow from all
   </IfVersion>
   <IfVersion >= 2.4>
   Require all granted
   </IfVersion>
   </Directory>
   </VirtualHost>
   Edit /openstack/venvs/horizon-23.1.0.dev65/lib/python3.8/dist-packages/openstack_dashboard/urls.py and add in urlPatterns following line
   url(r'^dashboard/', horizon.base._wrapped_include(horizon.urls))
   Your urls.py should looks like:
   """
   URL patterns for the OpenStack Dashboard.
   """

   from django.conf import settings
   from django.conf.urls import include
   from django.conf.urls.static import static
   from django.conf.urls import url
   from django.contrib.staticfiles.urls import staticfiles_urlpatterns
   from django.views import defaults

   import horizon
   import horizon.base
   from horizon.browsers import views as browsers_views
   from horizon.decorators import require_auth

   from openstack_dashboard.api import rest
   from openstack_dashboard import views

   urlpatterns = [
   url(r'^$', views.splash, name='splash'),
   url(r'^api/', include(rest.urls)),
   url(r'^header/', views.ExtensibleHeaderView.as_view()),
   url(r'', horizon.base._wrapped_include(horizon.urls)),
   **url(r'^dashboard/', horizon.base._wrapped_include(horizon.urls)),**
   ]

   # add URL for ngdetails

10. Restart httpd service

    /etc/init.d/apache2 restart

11. After refreshing the dashboard site, you should see Storware Backup & Recovery tab in the Openstack menu.

Installing Horizon Plugin in a Juju Deployment

This guide provides detailed instructions for installing the Horizon plugin in a Juju-deployed OpenStack environment.

Prerequisites

Before you begin, make sure you have the following:

• Access to the Juju controller and the model where the OpenStack services are deployed.

• The IP address of the Storware Backup & Recovery server

Installation

1. SSH into the leader unit of the openstack-dashboard application:

   juju ssh openstack-dashboard/leader

2. Clone the Horizon plugin repository from GitHub:

   git clone https://github.com/Storware/openstack-horizon-ui-vprotect-extensions

3. Change into the cloned directory:

   cd openstack-horizon-ui-vprotect-extensions

4. Install the required Python packages using pip:

   pip3 install -r requirements.txt

5. Run the plugin installer script with the following command:

   python3 install.py http://SBR_SERVER_IP:8080/api admin vPr0tect

   • Replace http://SBR_SERVER_IP:8080 with the actual address of your Storware Backup & Recovery server.

   • admin is the username.

   • vPr0tect is the password.

6. Navigate to the static files directory of the OpenStack Dashboard:

   cd /usr/share/openstack-dashboard/openstack_dashboard/static/

7. Create a symbolic link to the Storware Backup & Recovery static files:

   ln -s /var/lib/openstack-dashboard/static/vprotect/ vprotect

8. Check if the following aliases are present in the Apache configuration file:

   nano /etc/apache2/conf-enabled/openstack-dashboard.conf

   Ensure the file contains the following aliases:

   Alias /dashboard /usr/share/openstack-dashboard/openstack_dashboard/dashboards
   Alias /dashboard/static /var/lib/openstack-dashboard/static/
   Alias /static /var/lib/openstack-dashboard/static/
   Alias /horizon/static /var/lib/openstack-dashboard/static/

9. Edit the default Apache site configuration to add a rewrite rule:

   vi /etc/apache2/sites-available/000-default.conf

   Add the following lines under DocumentRoot /var/www:

   RewriteEngine on
   RewriteRule ^/dashboard/vprotect/(.*)$ http://%{HTTP_HOST}/horizon/vprotect/$1 [R=301,L]

**Note:** This rewrite rule may need adjustment based on your HAProxy/ReverseProxy setup.

1. Edit the urls.py file to include a specific path:

   vi /usr/lib/python3/dist-packages/openstack_dashboard/urls.py

2. Add the following line to the urlpatterns section:

   re_path(r'^horizon/', horizon.base._wrapped_include(horizon.urls)),

3. Restart the Apache service to apply the changes:

   sudo service apache2 restart

The Horizon plugin should now be installed and configured in your Juju-deployed OpenStack environment. Verify that the plugin appears in the OpenStack Dashboard and is functioning correctly.
