Proxmox VE

Proxmox environments require backup storage to be defined on each server. This storage must be a location accessible from Storware Backup & Recovery Node (the simplest setup, when you use only 1 node, is to create NFS share for the staging path on Storware Backup & Recovery Node).

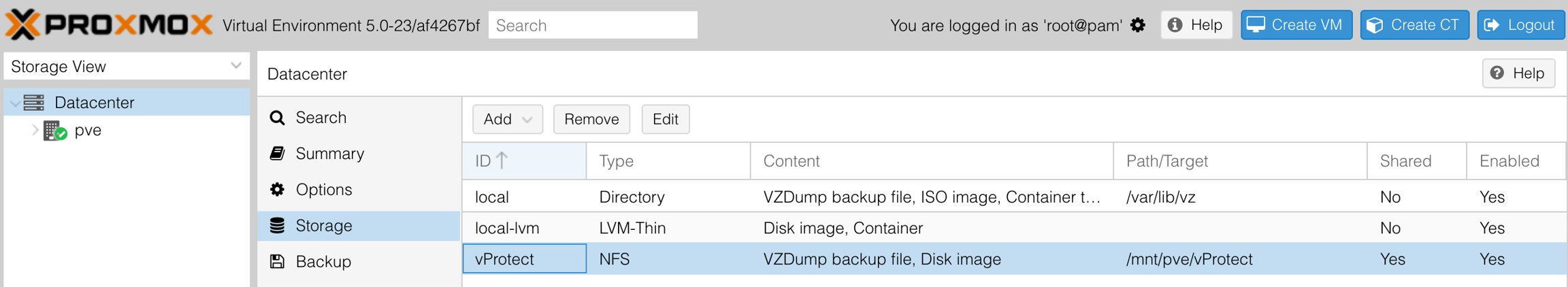

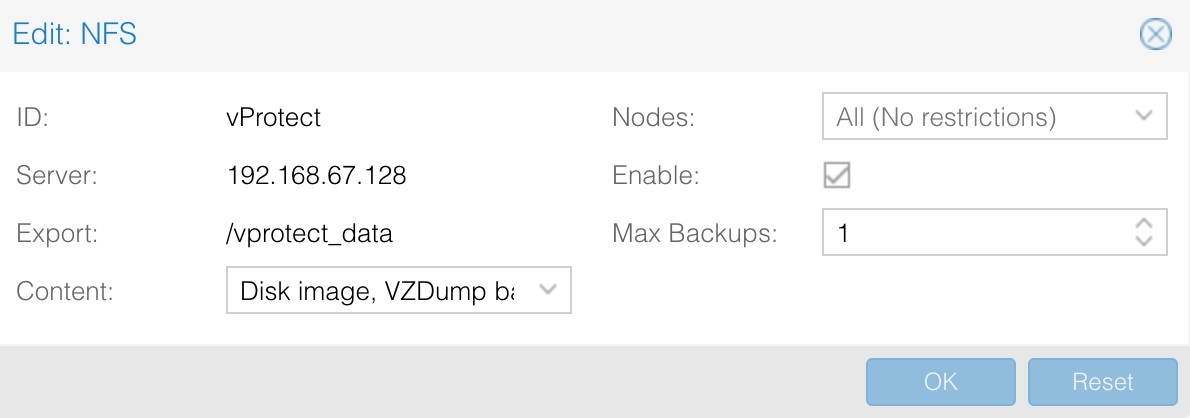

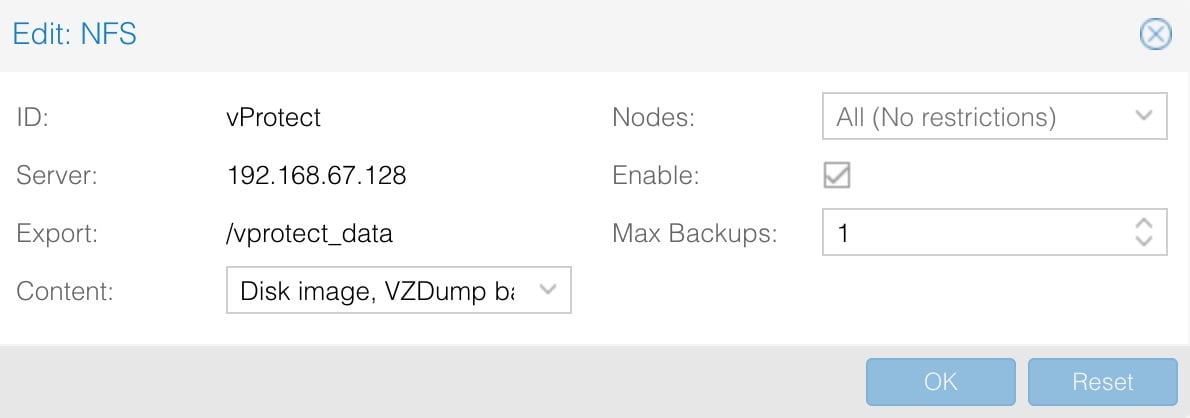

1. Create storage from NFS share (Content-type: VZDump)

• The export share must be set to use the UID and GID of the vprotect user.

• Example export configuration in /etc/exports to the selected hypervisor in the RHV cluster:

  /vprotect_data    PROXMOX_HOSTS(fsid=6,rw,sync,insecure,all_squash,anonuid=993,anongid=990)

  where anonuid=993 and anongid=990 should have the correct UID and GID returned by command:

  [root@vProtect3 ~]# id vprotect
  uid=993(vprotect) gid=990(vprotect) groups=990(vprotect)

• Both import and export operations will be done using these NFS shares – restore will be done directly to this storage domain, so you can easily import the backup into the Proxmox environment

  • Backups must be restored to the export path (the node automatically changes the names to the original paths that are recognized by Proxmox).

• The name for storage must be provided later in the node configuration (Hypervisor -> Proxmox )section.

File-level restore support for VMA images

1. Prepare the VMA extractor on Storware Backup & Recovery Node - you have 2 options:

   • Build a VMA extractor like this (requires Internet on the node):

     cd /opt/vprotect/node/scripts/vma
     ./setup_vma.sh

2. • Download the VMA extractor from the Storware FTP (in the Add-ons directory) and install it.

     cd /opt/vprotect/node/scripts/vma
     ./setup_vma.sh PATH_TO_VMA_ARCHIVE

Public key authentication

The details are described in the SSH public key authentication section.

Supported features

Supported backup strategies: Export storage repository

	Export storage repository
Supported versions	5.2, 5.3, 5.4, 6.0, 6.1, 6.2, 6.3, 6.3, 6.4, 7.0, 7.1, 7.2, 7.3, 7.4, 8.0, 8.1, 8.2
The last snapshot is kept on the hypervisor for incremental backups	Yes
Access to hypervisor OS required	No
Proxy VM required	Yes

Full backup	Supported
Incremental backup	Supported
Restore	Supported
File-level restore	Supported
VM disk exclusion	Supported
Quiesced snapshots	Supported
Snapshots management	Supported
Pre/post command execution	Supported
Access to VM disk backup over iSCSI	Supported
VM name-based policy assignment	Supported
VM tag-based policy assignment	Supported *
Power-on after restore	Supported

* When using Prism Central

Network requirements

Export storage repository

Source	Destination	Ports	Description
Node	Hypervisor	22/tcp	SSH access
Hypervisor	Node	If Node is hosting staging space: 111/tcp, 111/UDP, 2049/tcp, 2049/UDP, ports specified in /etc/sysconfig/nfs - variables MOUNTD_PORT (TCP and UDP), STATD_PORT (TCP and UDP), LOCKD_TCPPORT (TCP), LOCKD_UDPPORT (UDP), otherwise please check the documentation of your NFS storage provider	NFS access
Node and hypervisor	shared NFS storage	check the documentation of your NFS storage provider	if staging space (export storage domain) is hosted on the shared storage - NFS access
