# Red Hat Virtualization UI Plugin

## General

Integration with the Red Hat Virtualization interface allows administrators to perform most of the basic operations without logging into the Storware Backup & Recovery dashboard.

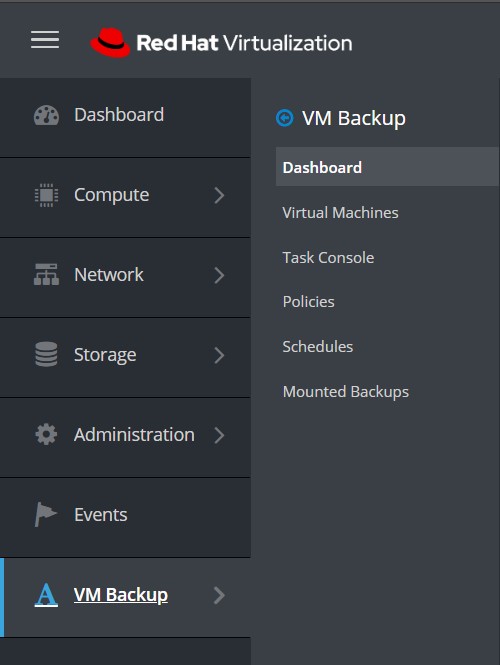

After installation (which is described at the end of this article) you will see a new tab "VM Backups" in the RHV menu.

![](/files/qZDqaZAFMQ3kkjFe4H0C)

### Dashboard

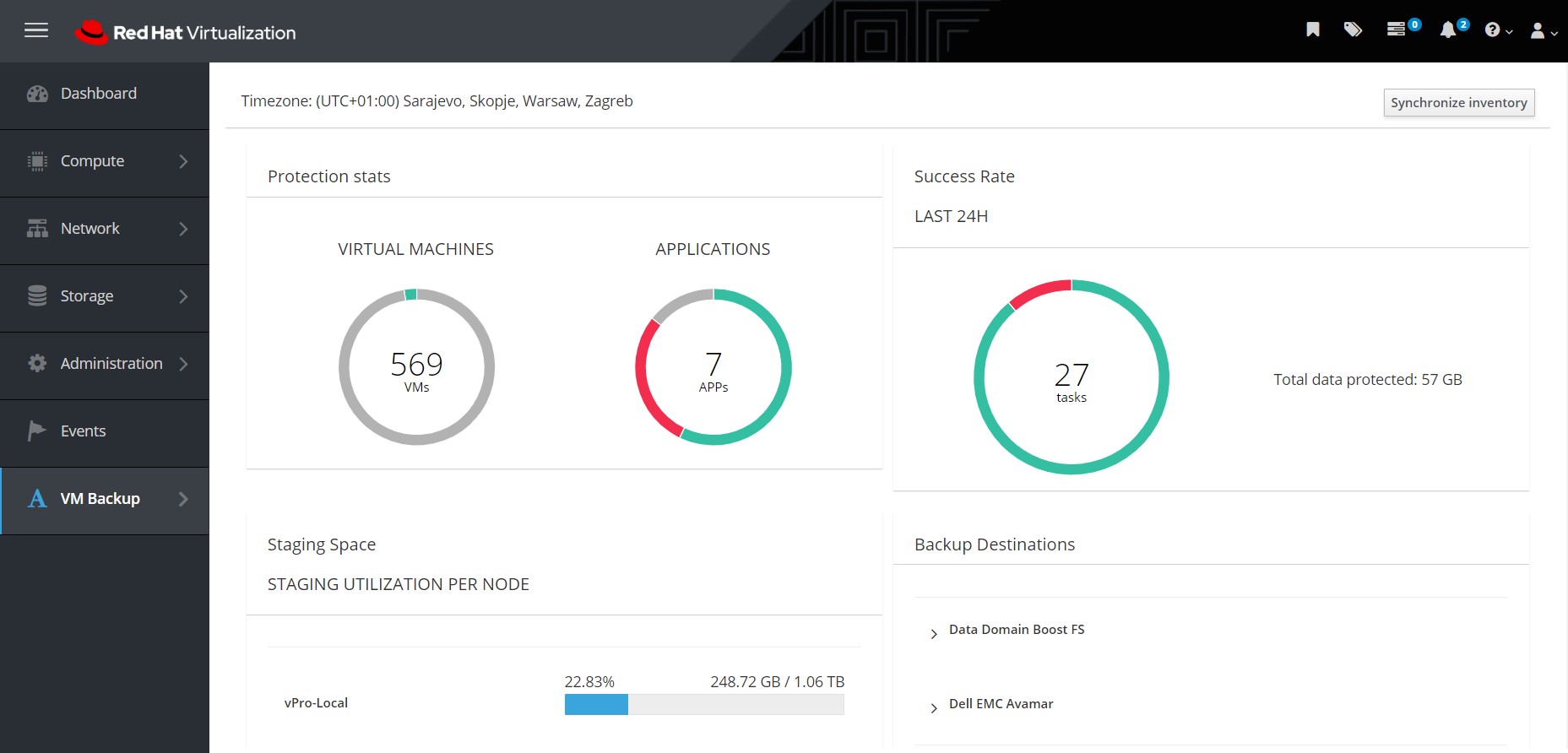

As usual, it contains a short summary of the environment along with a handful of statistics.

![](/files/CiKTcFBGUcJz1QbEsMXp)

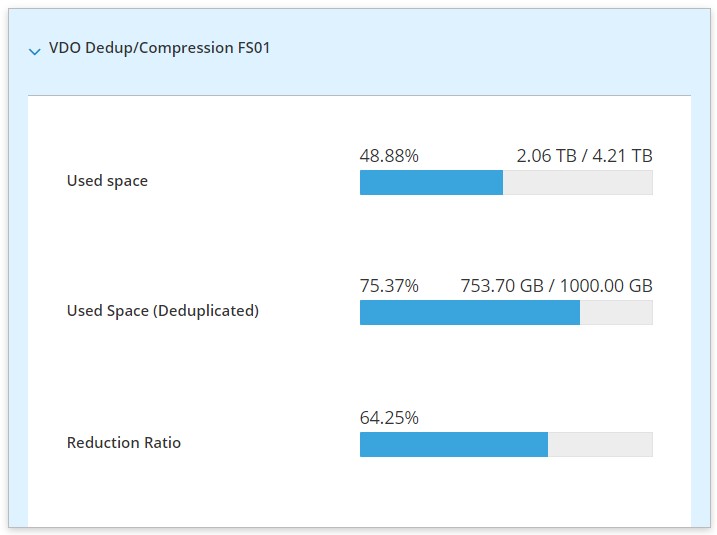

You can also see the data summary of the backup destination.

![](/files/U0Z3XhruD2uDA92b4XxU)

### Virtual Machines

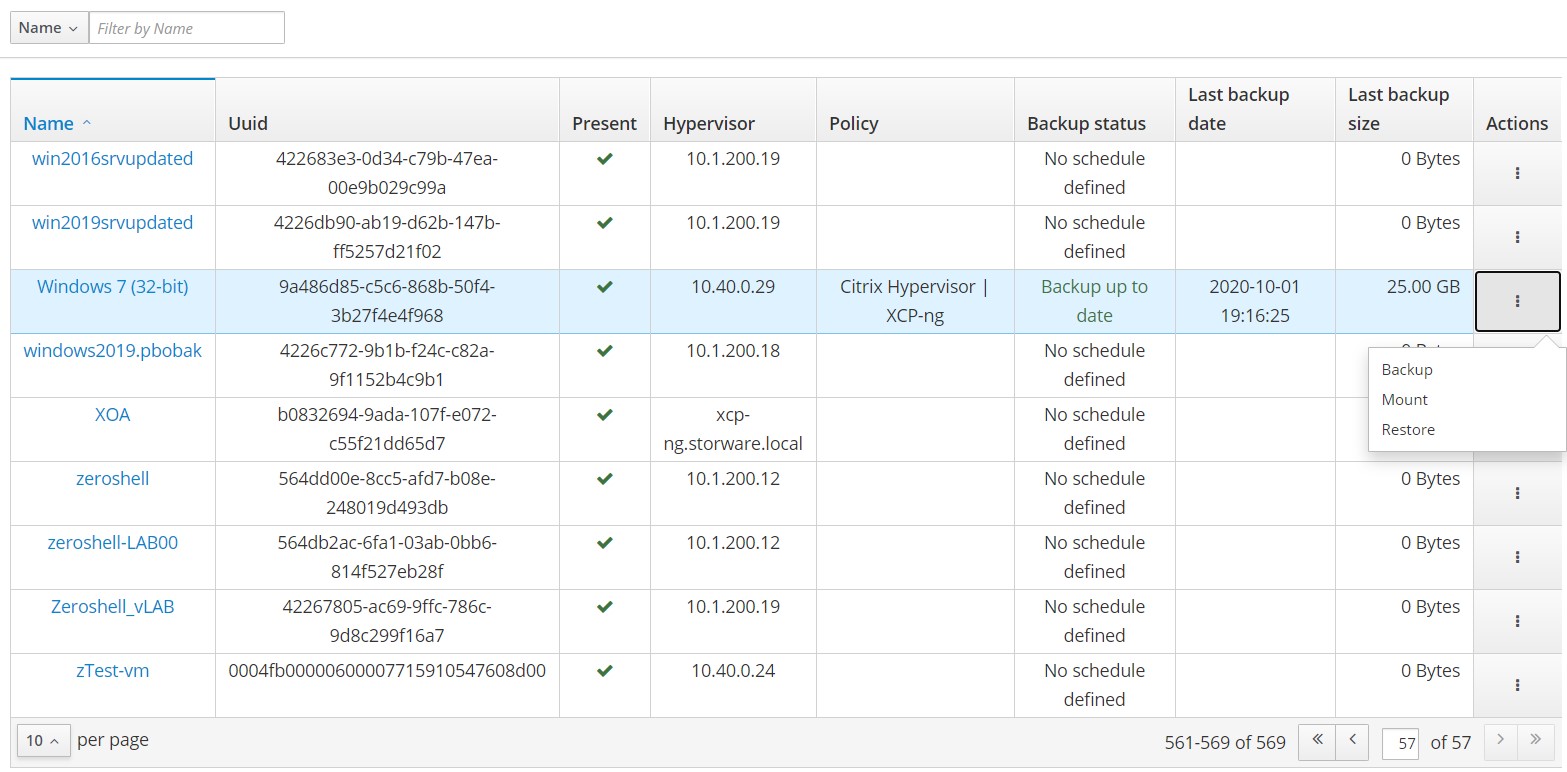

This tab shows all inventoried virtual machines in your RHV environment. In addition, you can also perform the basic backup or restore operations.

![](/files/Lco0PieapH7ckdZ4QfkE)

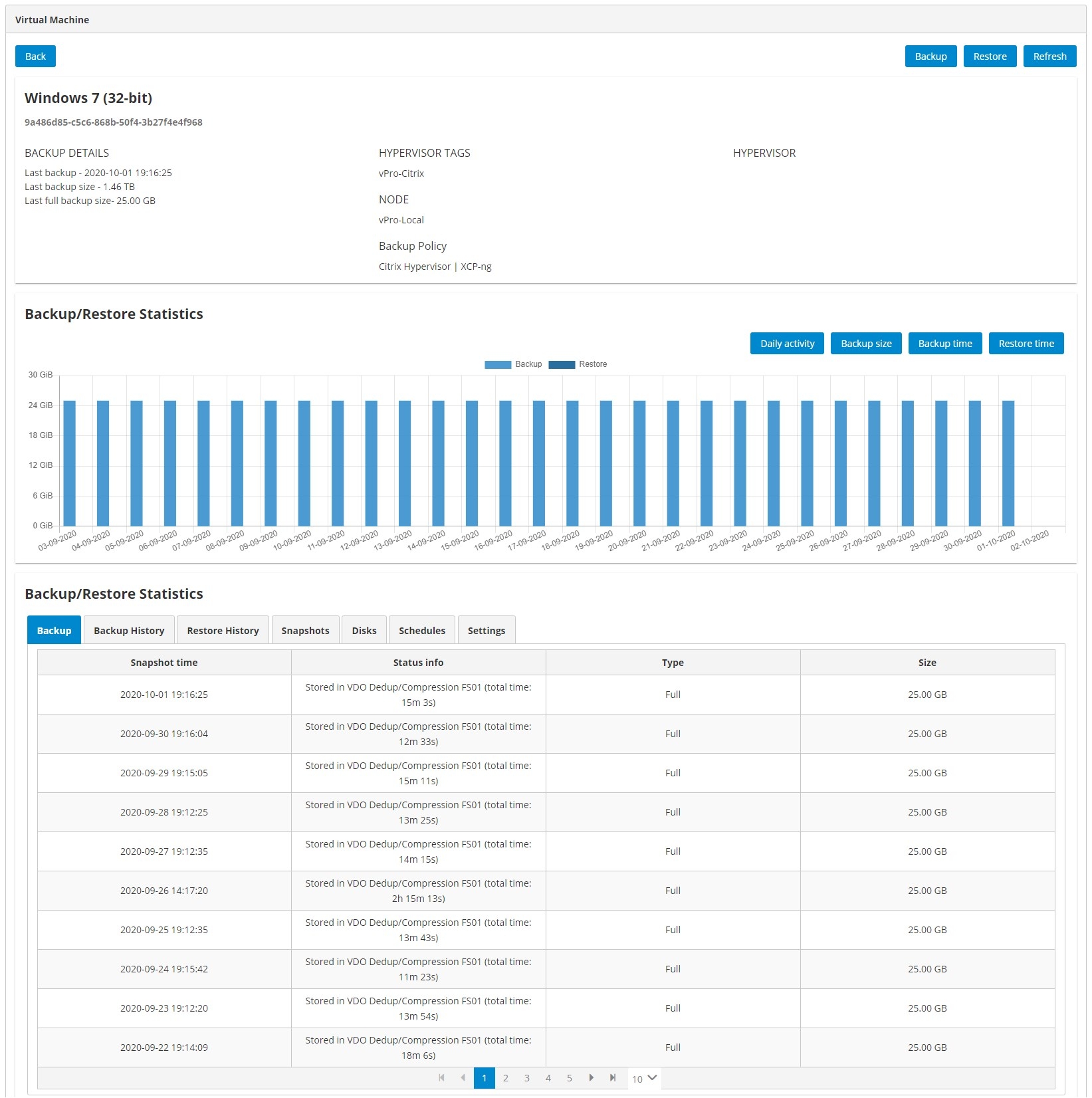

But that's not all, you can also go into the details of the virtual machine by clicking on its name:

![](/files/rYbcikjL1o9za0umJ10d)

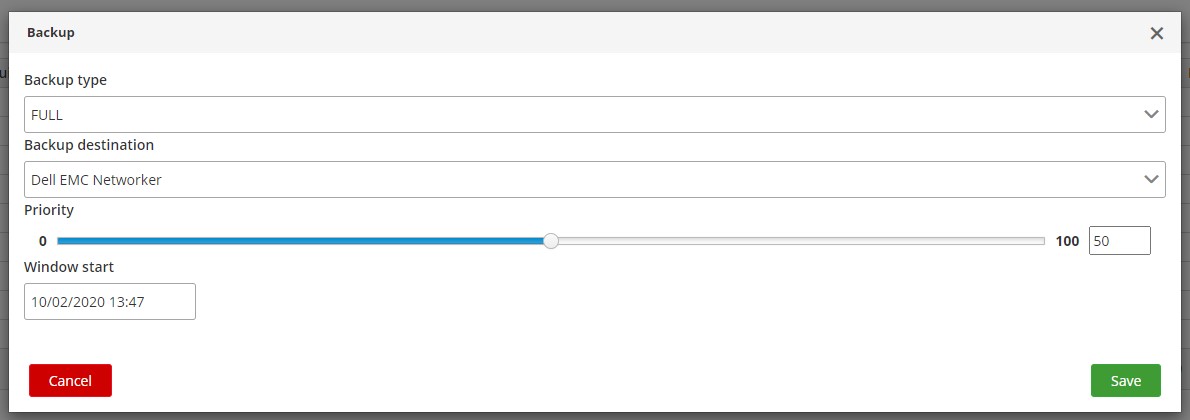

Backup window view:

![](/files/IkJUVgyoWcvei1AiT7pY)

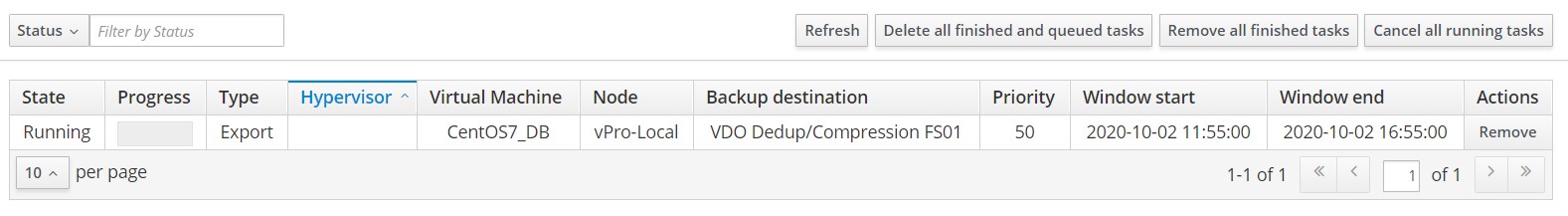

### Task console

Basic information about current tasks performed by Storware Backup & Recovery.

![](/files/GU9tu1g77dWn7FFDLRl2)

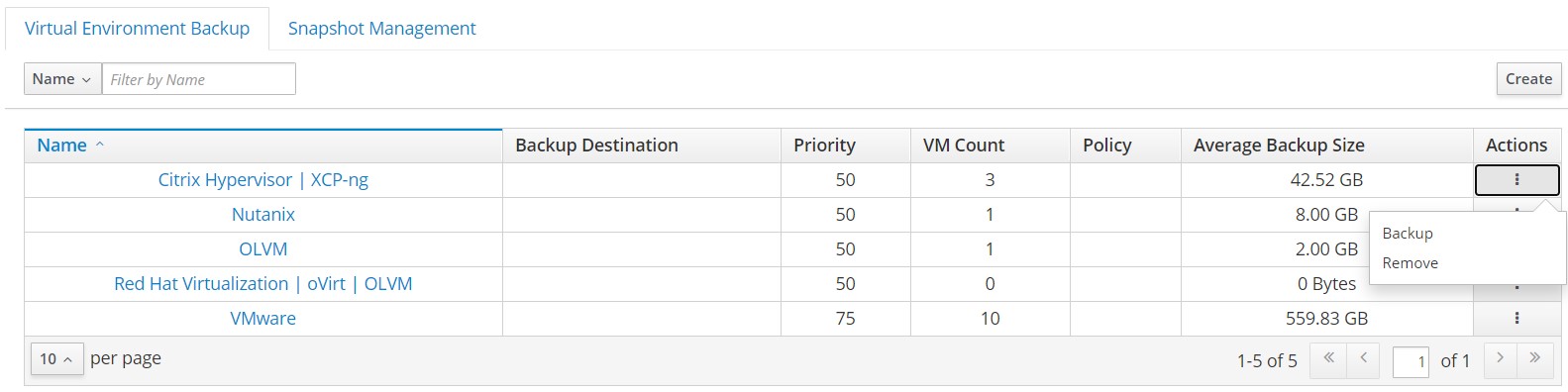

### Policies

Allows you to create policies for VM's backups and snapshots. These basically have the same functionalities as Storware Backup & Recovery WebUI.

![](/files/xzEe0bALJmJCowX1mpqa)

### Schedules

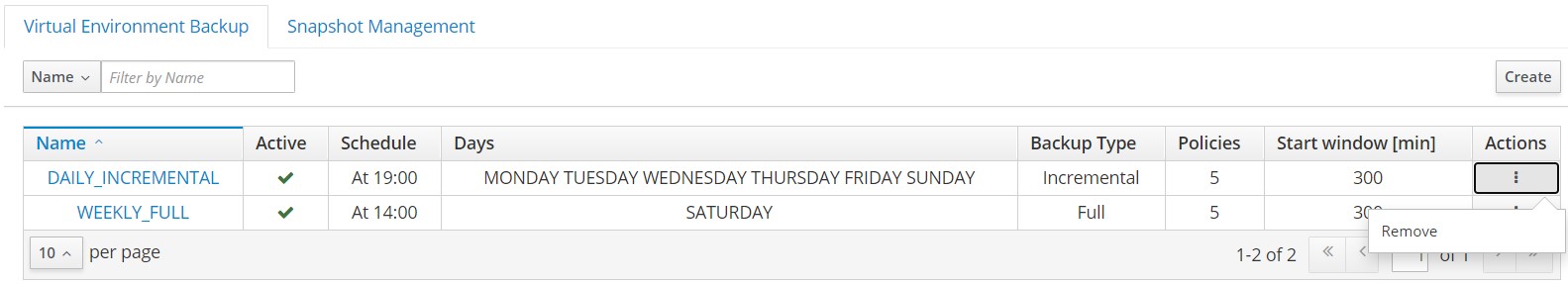

As with the policies tab, it allows you to create schedules for the created rules.

![](/files/P3NLvGaEDIT0jVKC54c0)

### Mounted Backups

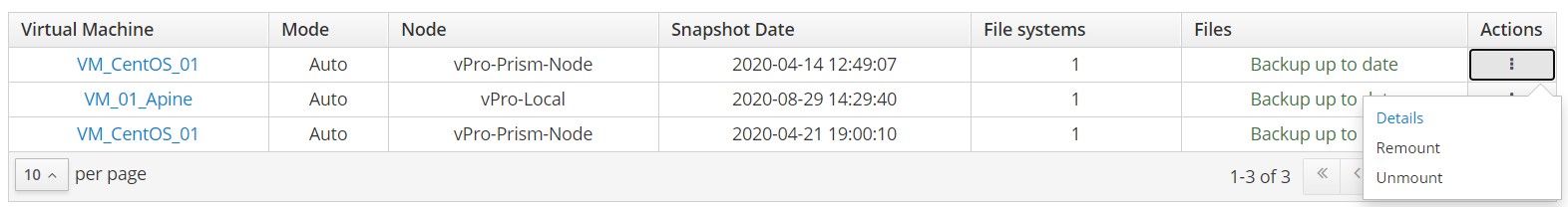

Finally, you can also browse your mounted backups from the RHV dashboard. You only need to enter the backup details using the menu on the right.

![](/files/n5IkfJzj0vwaTq07eEPi)

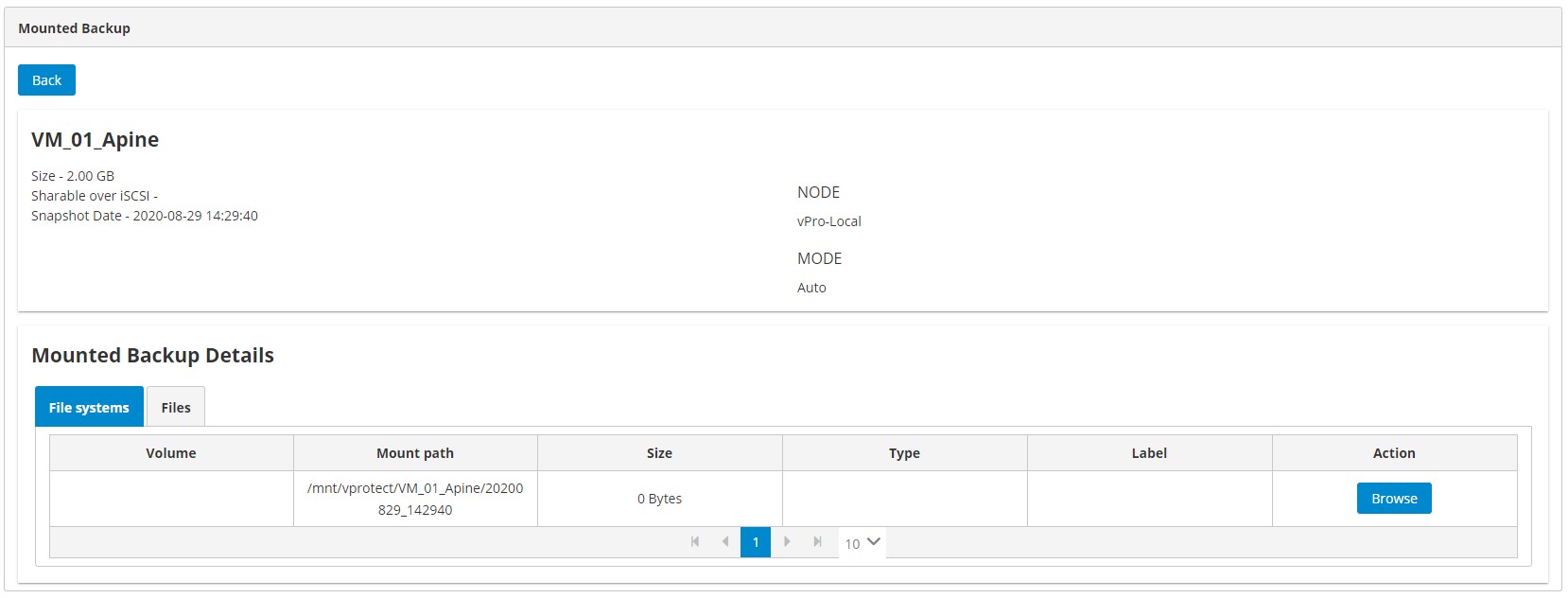

From here we can see the basic information about the backup and start browsing the files using the "Browse" button on the right.

![](/files/HcDLkLf3cLoptXPxfvjK)

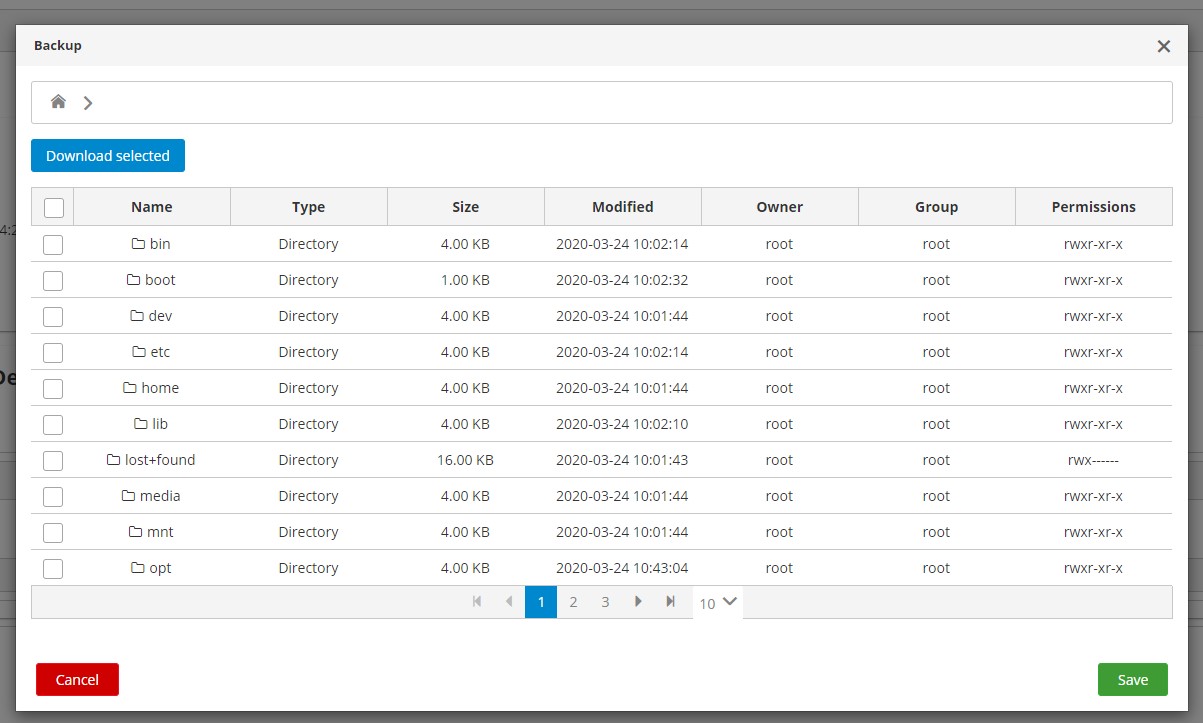

Just select a folder or file and then click on the "download selected" button to have the files on your computer.

![](/files/0MYOES9TV2Y5Fxcim4hl)

## Installation

1. You can find the add-on in the [GitHub repository](https://github.com/Storware/ovirt-engine-ui-vprotect-extensions). Follow the instructions in the README to build or download the plugin. Then extract the provided archive to your RHV manager.
2. In the file `vprotect.json` edit the lines in the config part:
   * `Storware_URL` - the URL to Storware Backup & Recovery API
   * `username` - the name of the administrator in Storware Backup & Recovery
   * `password` - the administrator password in Storware Backup & Recovery

**Example**:

```
   {
      "name": "vprotect",
      "url": "plugin/vprotect/plugin.html",
      "resourcePath": "vprotect-resources",
      "lazyLoad": false,

      "config": {
          "vProtectURL": "http://10.40.0.55:8080/api",
          "username": "admin",
          "password": "vPr0tect"
       }
   }
```

1. Put the `vprotect.json` file and `vprotect-resources` directory in the `/usr/share/ovirt-engine/ui-plugins` directory in the RHV engine.


---
