# AWS S3 and S3-compatible

## Overview

Storware Backup & Recovery can store backups in AWS S3 or S3-compatible backup providers. In most cases, you just need to prepare a bucket (with versioning enabled if possible) and generate an access/secret key for Storware Backup & Recovery. Storware Backup & Recovery can be installed in AWS (if EC2 backup is used), but in most cases, S3 is used just as a cloud backup provider for on-prem environments.

Typical use cases are:

* When AWS is used - choose a single bucket with **versioning enabled** - all backup objects will have names in `/container_name/path/to/backup` format, where `container_name` typically is the VM name with an identifier.
* When a 3rd party is used - you need to verify:
  * Which strategy is supported by the vendor - i.e. Scality requires a single bucket without versioning.
  * When timestamp recording of the object should occur - i.e. Scality does it after data is stored (unlike AWS).

Storware Backup & Recovery also support **encryption**. It uses server-side encryption with customer-provided encryption keys (SSE-C). Once enabled, new data is stored as encrypted with keys generated and kept by Storware Backup & Recovery. For performance improvements, we also recommend using AWS Direct Connect to access S3. Otherwise, backups would be sent over the Internet, which could result in poor performance.

{% hint style="info" %}
**Note:** S3 has a **limit of 5TB** per object. This means that depending on the virtualization platform and backup format used by export/import mode you may have a limit of 5TB per VM (if it is Proxmox VMA or Citrix XVA image-based backup) or per VM disk (in most cases). Bigger files are currently not supported.
{% endhint %}

### Permissions

Depending on the selected mode, you may have different permission sets. For a single bucket, you need to use the access keys of a user that has the ability to control objects within the bucket over the specific bucket - here is an example of IAM policy:

```
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "Stmt1568968204280",
      "Action": [
        "s3:DeleteObject",
        "s3:DeleteObjectTagging",
        "s3:DeleteObjectVersion",
        "s3:DeleteObjectVersionTagging",
        "s3:GetBucketTagging",
        "s3:GetBucketVersioning",
        "s3:GetObject",
        "s3:GetObjectRetention",
        "s3:GetObjectTagging",
        "s3:GetObjectVersion",
        "s3:GetObjectVersionTagging",
        "s3:ListBucket",
        "s3:ListBucketVersions",
        "s3:PutObject",
        "s3:PutObjectTagging",
        "s3:PutObjectVersionTagging",
        "s3:RestoreObject"
      ],
      "Effect": "Allow",
      "Resource": "arn:aws:s3:::BACKUP_DESTINATION_BUCKET/*"
    }
  ]
}
```

You can also use a predefined role and create a user from the AWS console:\
<https://docs.aws.amazon.com/IAM/latest/UserGuide/id_credentials_access-keys.html#Using_CreateAccessKey>

{% hint style="info" %}
**Note:** It is recommended to periodically rotate your access/secret keys. More information can be found here: <https://aws.amazon.com/blogs/security/how-to-rotate-access-keys-for-iam-users/>. After changing the key in AWS, remember to update it in Storware Backup & Recovery as well.
{% endhint %}

### Bucket replication

Even though S3 is a highly available service, you may want to be prepared in case of a region failure. We recommend following this guide[ https://docs.aws.amazon.com/AmazonS3/latest/dev/replication.html](https://github.com/Storware/vprotect-manual/tree/e7b7039b975e5a518e099f05a9079b281ece5f7c/AmazonS3/latest/dev/replication.html) to set up bucket replication so that your data is replicated to another region in a worst-case scenario. Remember to point Storware Backup & Recovery to the replicated bucket in case of a disaster.

### Glacier/Deep Archive support

Starting from version 3.9 of vProtect now Storware Backup & Recovery is able to move older backups to a Glacier/Deep Archive storage tier. In the S3 backup provider settings, you need to enable the `Move old versions to other storage class` toggle and provide extended retention settings.

Keep in mind that Storware Backup & Recovery will try to restore it to S3 with an expiration set to 2 days. You'll notice that although the task is running, no progress is taking place as it is waiting for the object to be restored from Glacier to S3. This **may take several hours** as Glacier doesn't provide instant access to archival data. Once this part is completed, Storware Backup & Recovery will proceed with regular restore from a temporary S3 object.

### Costs

When storing backups in S3, additional charges will occur for stored backups. Retention setting in Storware Backup & Recovery can limit the storage costs of stored backups.

Please visit <https://aws.amazon.com/s3/pricing/> to check current AWS S3 pricing.

## Supported features

| Syntetic backup            | Not supported |
| -------------------------- | ------------- |
| Random Access              | Not supported |
| Deduplication              | n/a           |
| Encryption                 | Supported     |
| Pre/post command execution | Supported     |

## Example

Now we will show you how to quickly create S3 storage and integrate it with Storware Backup & Recovery as a backup destination.\

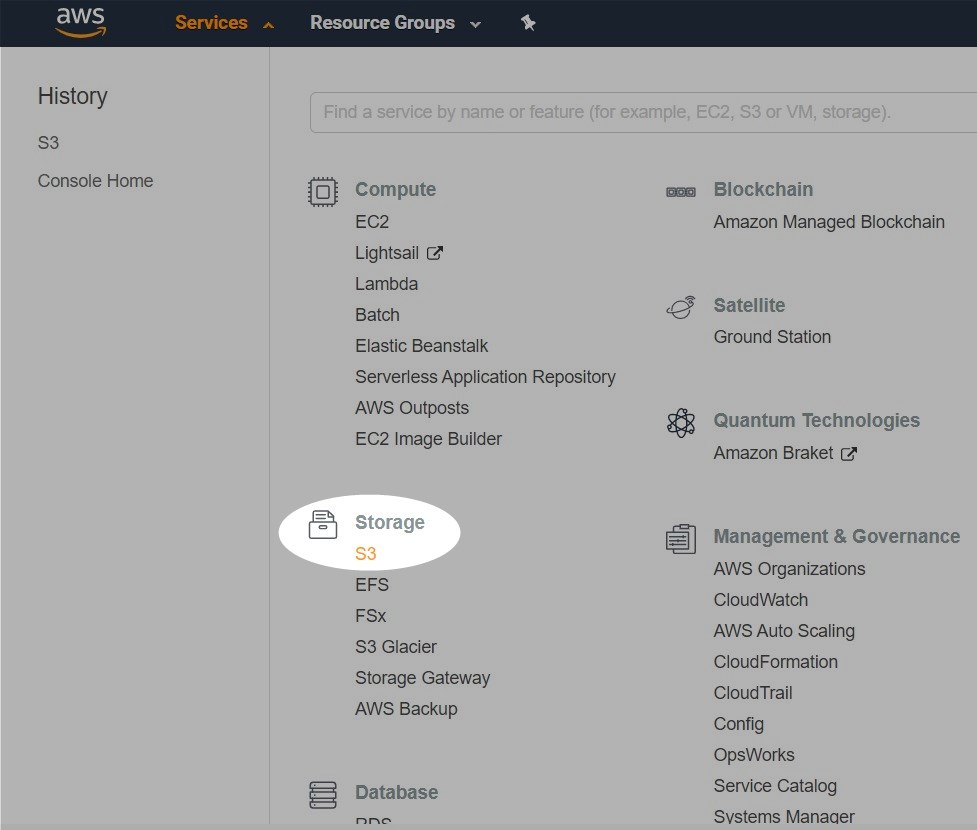

After logging in, expand the services tab a choose S3 under the Storage section:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/e7nVAS26sGw0V0F1dNrx/deployment-backup_destinations-object_storage-aws.jpg)

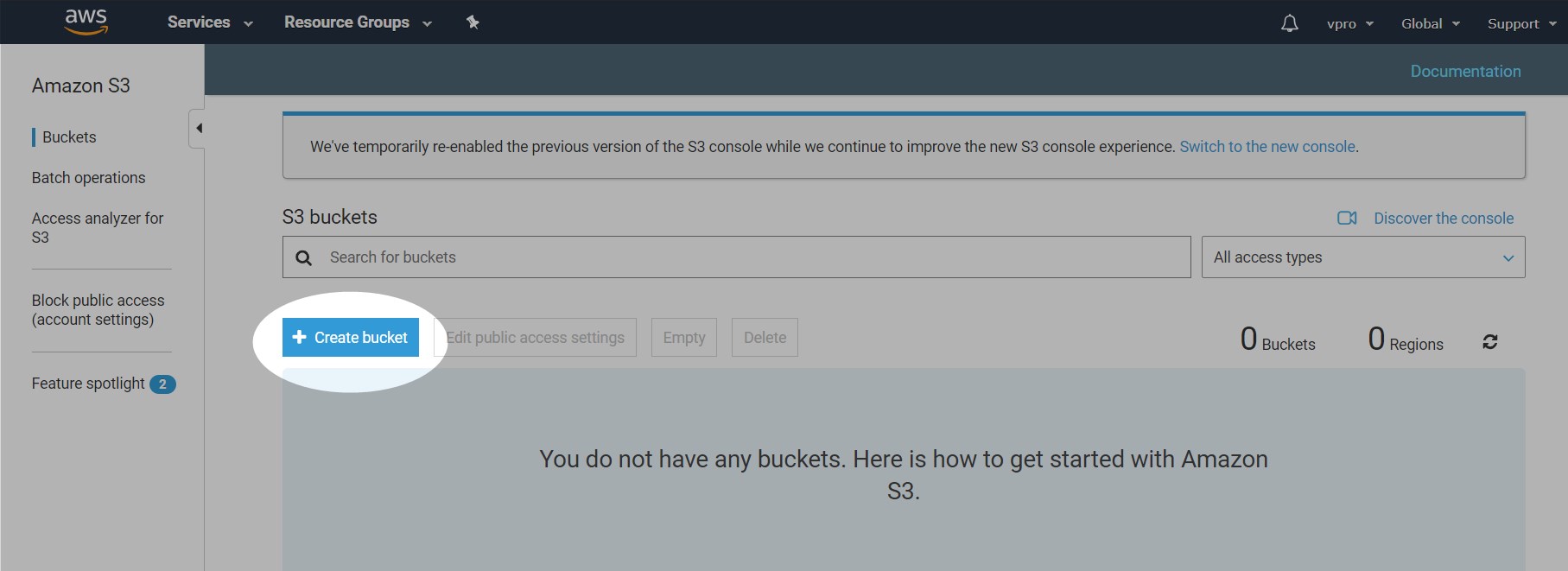

Now create a new bucket for your backups:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/kEWpfYP84Wg3dubSa5bC/deployment-backup_destinations-object_storage-aws_2.jpg)

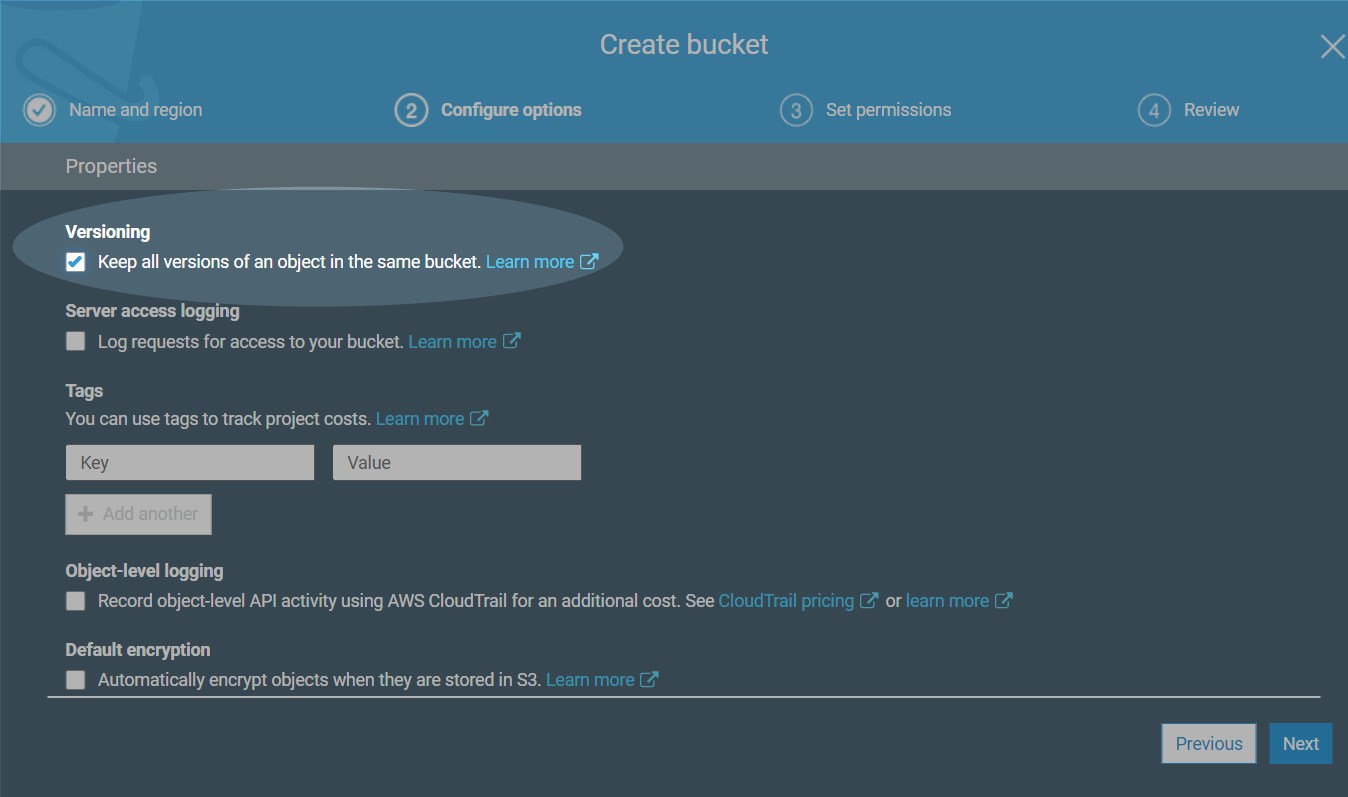

In "Configure options" activate versioning:\
(In all other tabs, you can leave the default settings)

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/c4nEBH1fQELk22CCvpMG/deployment-backup_destinations-object_storage-aws_3.jpg)

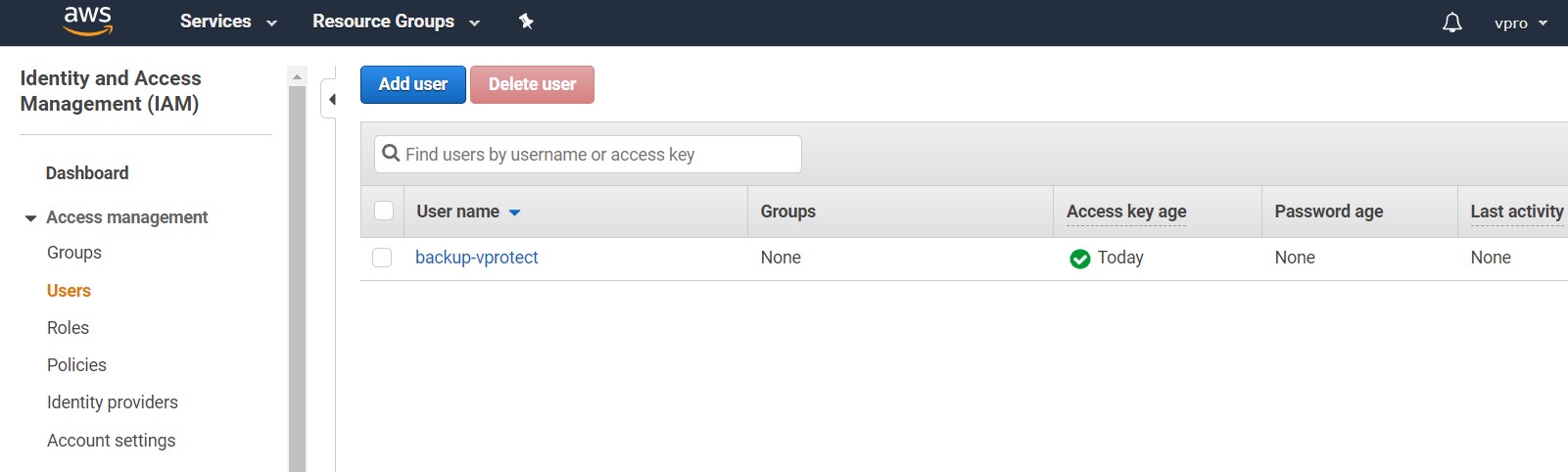

After creating a bucket, we need to create a new user with appropriate permissions:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/DAPlH8Ve0QlcOTwDuuno/deployment-backup_destinations-object_storage-aws_4.jpg)

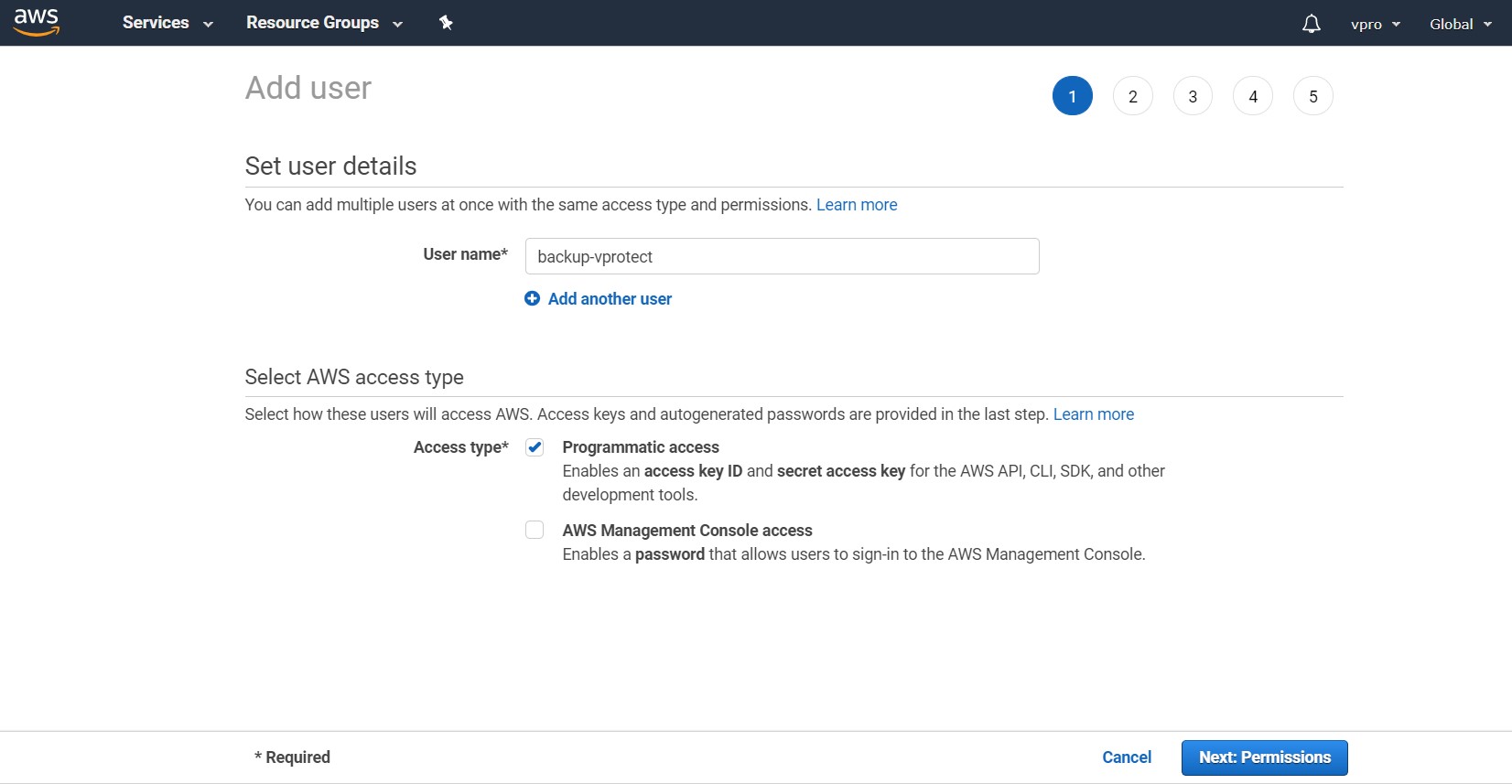

Remember to choose the "Programmatic access" account type:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/aX2FudXFMb7ERdp0wzHC/deployment-backup_destinations-object_storage-aws_5.jpg)

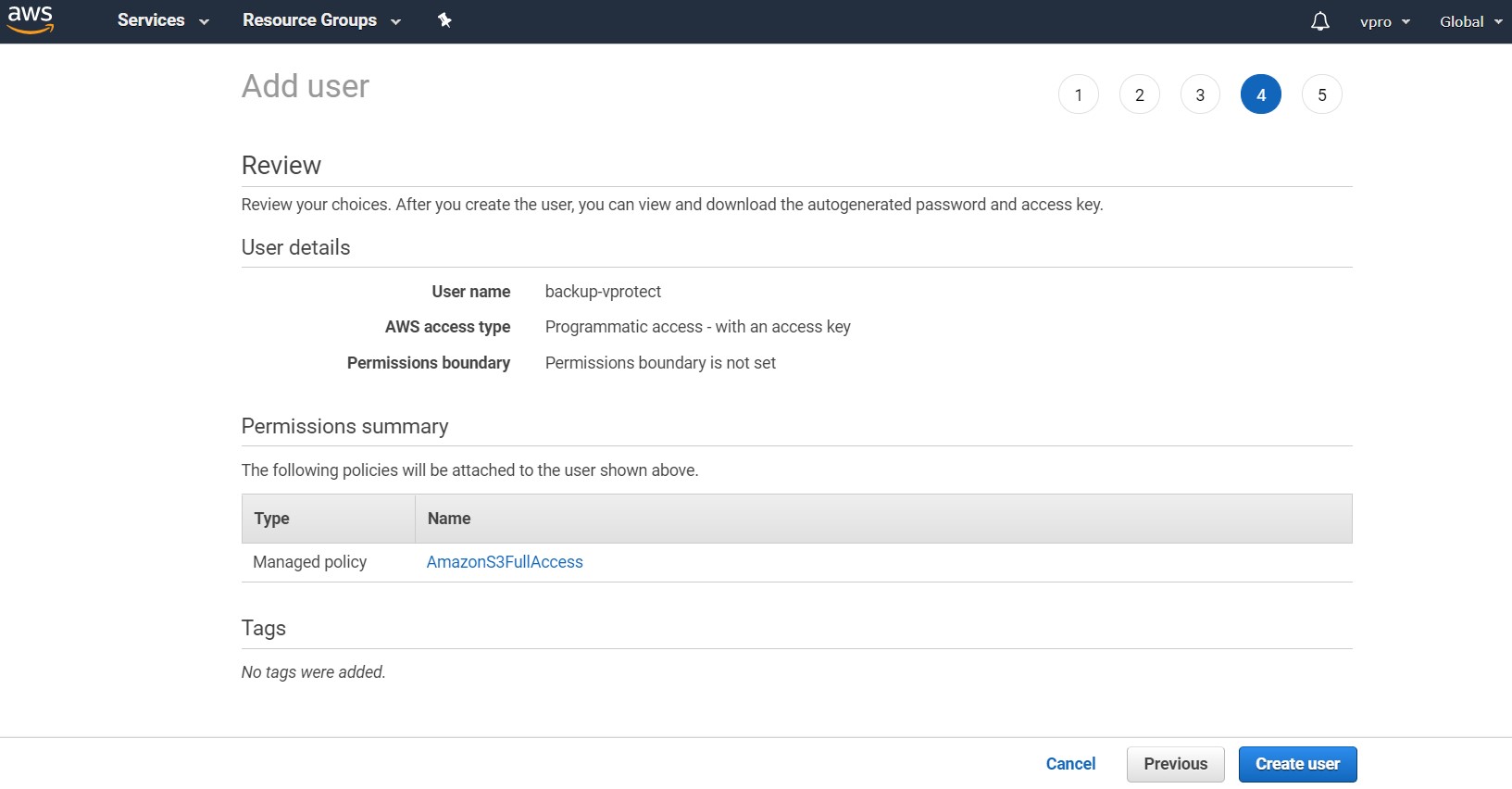

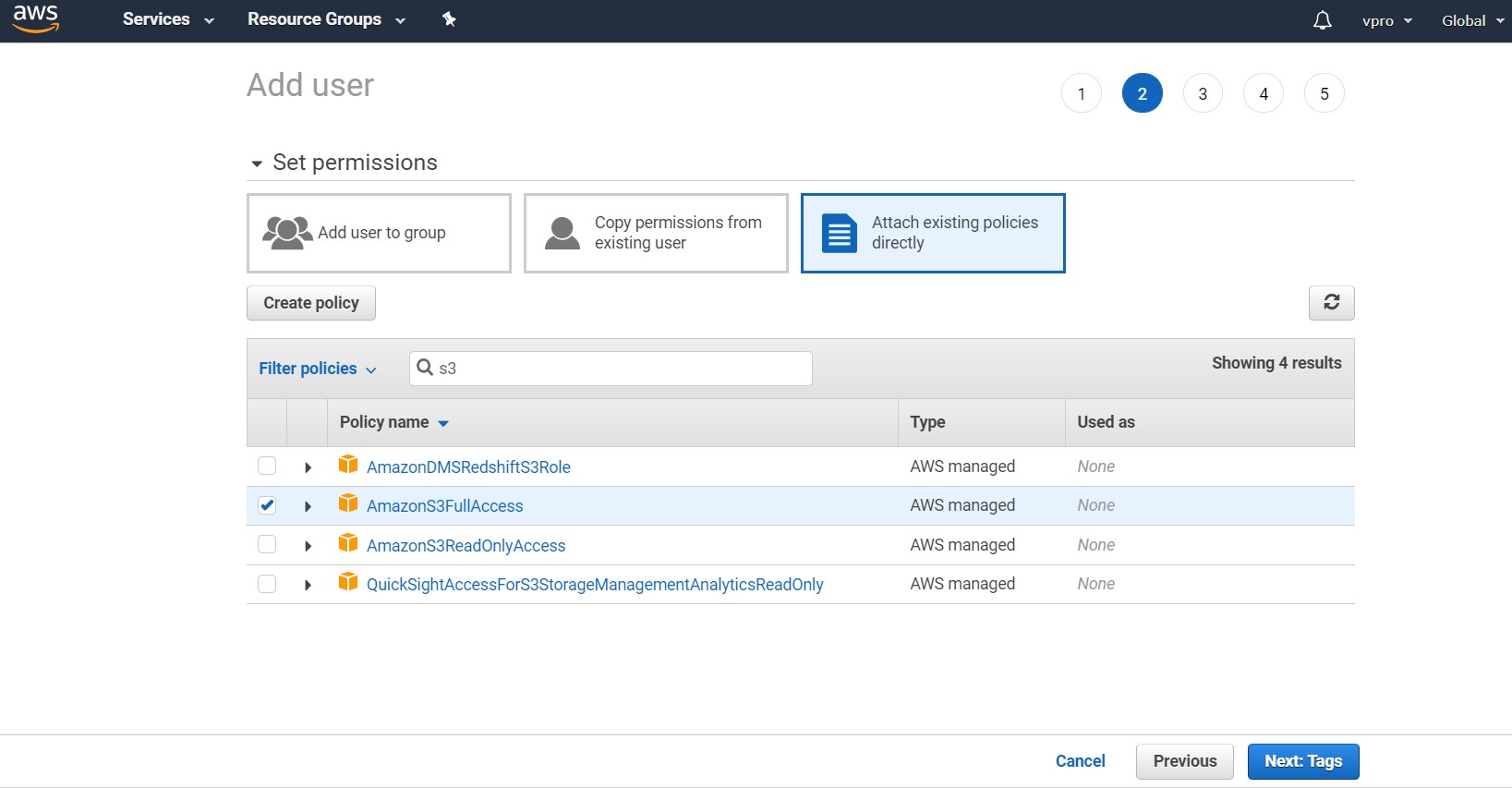

From the predefined roles, you can choose "AmazonS3FullAccess" or you can create a new one as described in the Permissions section:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/3vczlx3HbIesBr2lcSS0/deployment-backup_destinations-object_storage-aws_6.jpg)

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/ouEutdHQXtYuU4YTmO3n/deployment-backup_destinations-object_storage-aws_7.jpg)

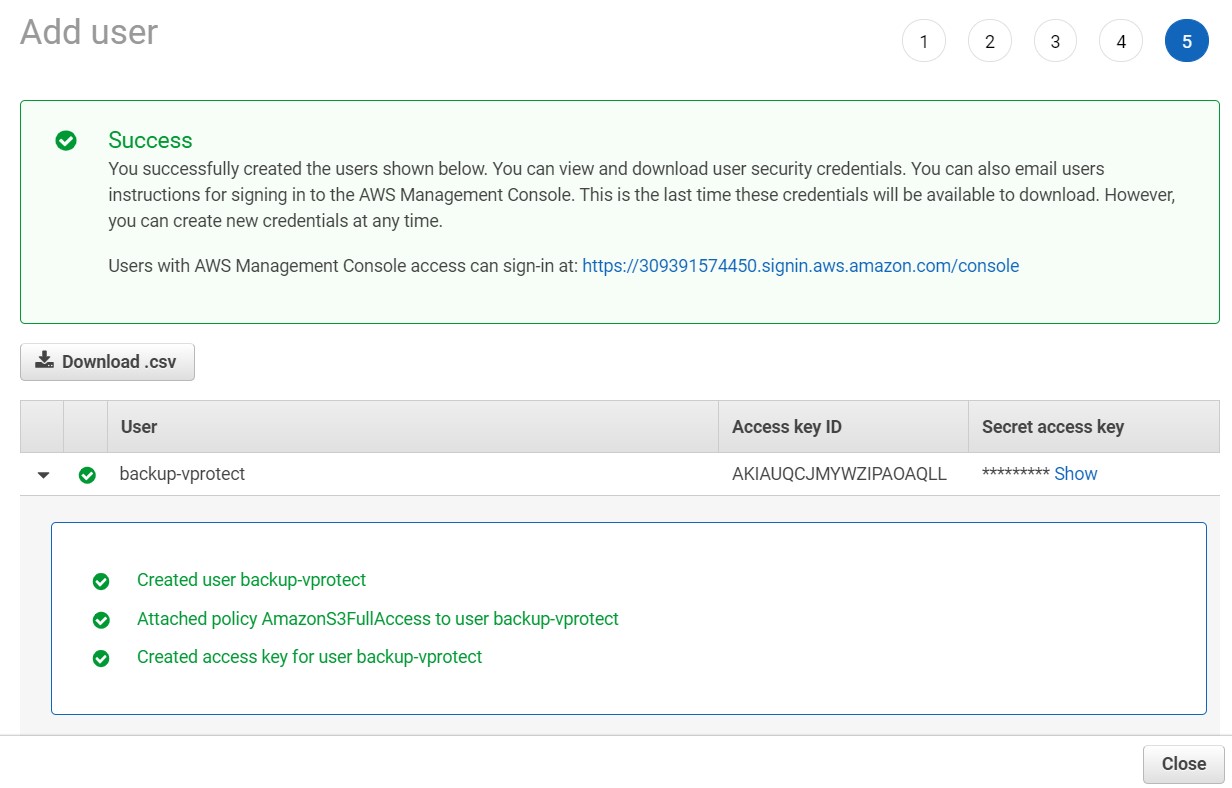

Remember to download the .csv or copy the key credentials manually:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/kK4yFAjQXgr2mhwsV0gR/deployment-backup_destinations-object_storage-aws_8.jpg)

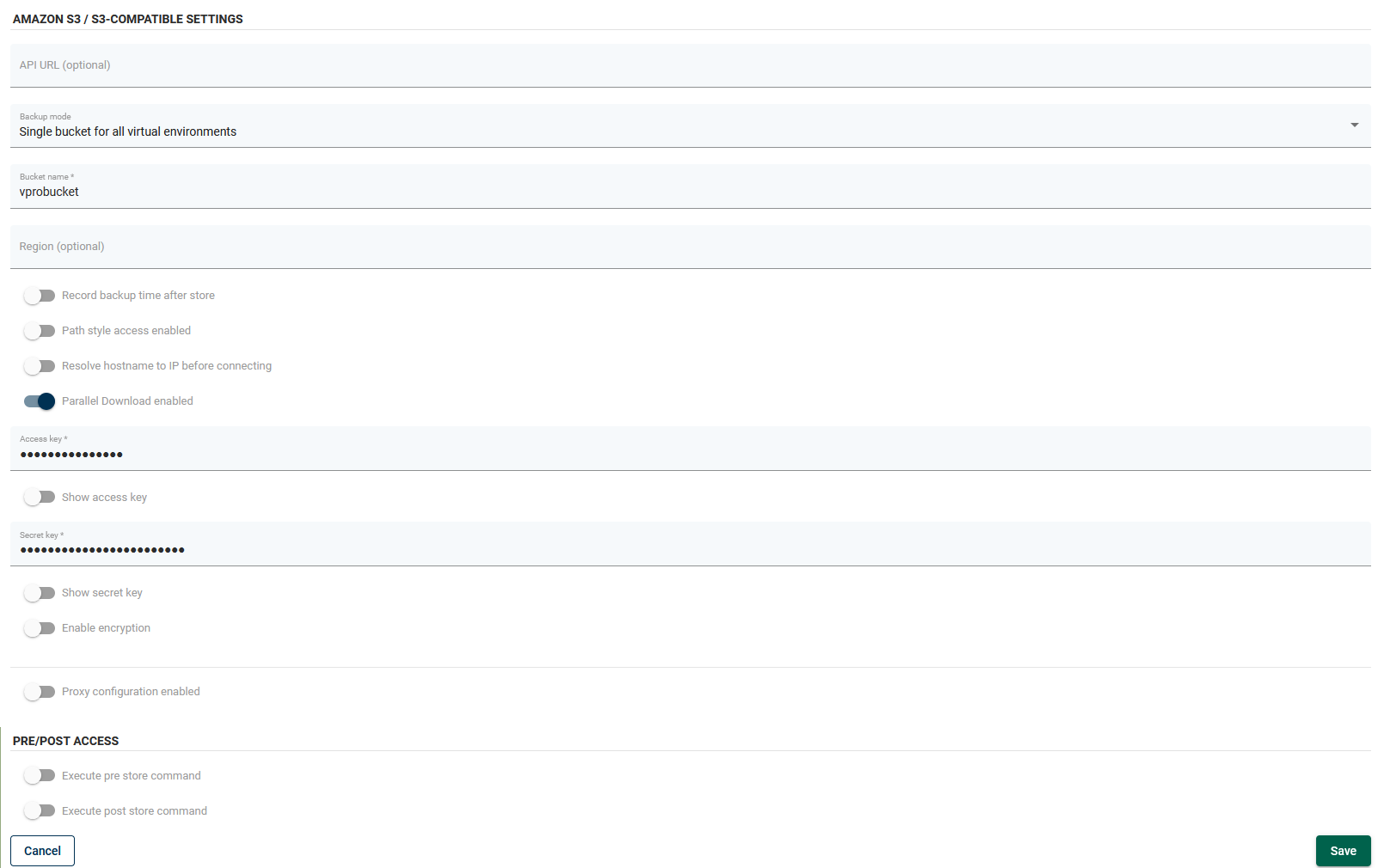

Now go to the Backup destination tab on the Storware Backup & Recovery dashboard and change the sub-tab to object storage. Provide the bucket name and key credentials, and then configure the remaining options according to your requirements:

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/QWKrUDqZQq5OD4YFHcN5/deployment-backup_destinations-object_storage-aws.png)


---
