# IBM Spectrum Protect

## Supported features

| Supported version          | 7.1.5 and newer    |
| -------------------------- | ------------------ |
| Syntetic backup            | Not supported      |
| Random Access              | Not supported      |
| Deduplication              | Supported          |
| Encryption                 | Provider dependent |
| Pre/post command execution | Supported          |

## Example

1. Register the ISP node on your ISP server.
   * Log in to your ISP server and prepare a policy set for Storware Backup & Recovery backups.

     ```
      Def dom vprotect
      Def pol vprotect vprotect
      Def mgmt vprotect vprotect vprotect
      Def co vprotect vprotect vprotect dest=<StoragePoolName> vere=nolimit verd=nolimit rete=nolimit reto=nolimit
      Assign defmgmt vprotect vprotect vprotect
      Activate pol vprotect vprotect
     ```
   * Register the node on the ISP server:

     ```
     register node vprotect_proxy <SecretPassword> dom=<VMdomain> maxnummp=10 passe=0 dedup=cli backdel=yes
     ```

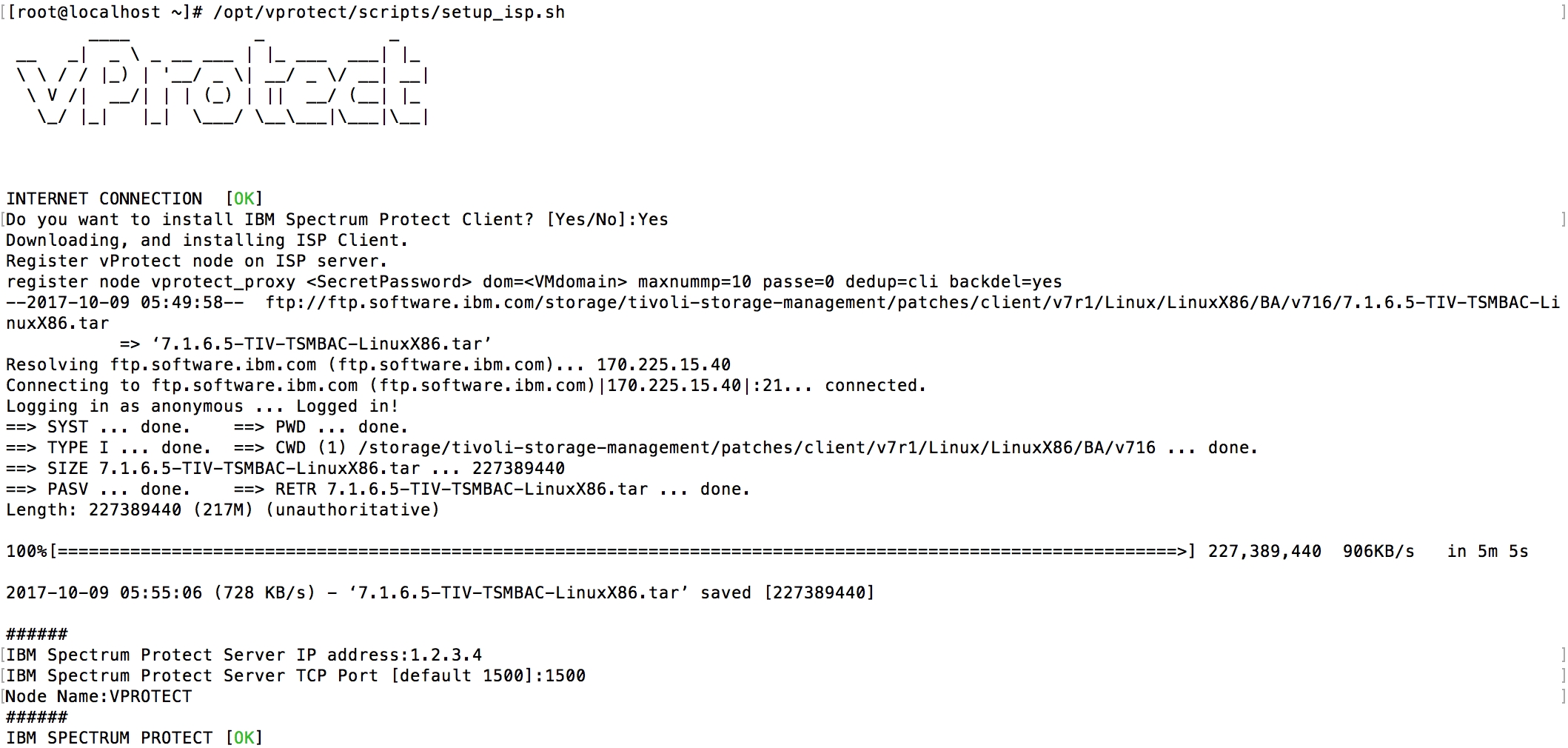

2. Use a script to automatically download and install the ISP API and client.

   ```
   /opt/vprotect/scripts/setup_isp.sh
   ```

{% hint style="warning" %}
Make sure to type the IP address of your ISP server, TCP port, and node name correctly. For example:
{% endhint %}

![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/q9sJTkIsYMbybq7PILqe/deployment-backup_destinations-enterprise_backup_providers-ibm_spectrum_protect.png)

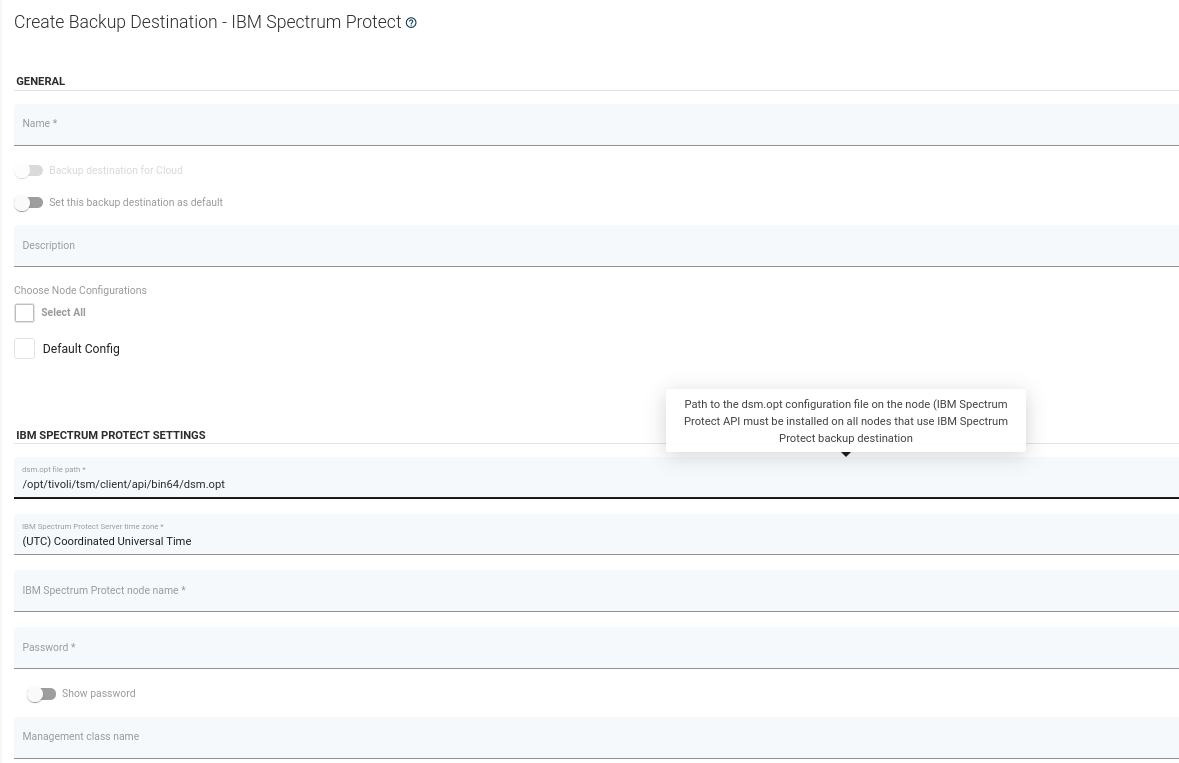

3. Next step is to set up the Backup Destination in our UI.

   * Go to **Backup Destination** and select **Enterprise**
   * Now you can add IBM Spectrum Protect Backup Destination

   ![](https://content.gitbook.com/content/wUsKWUrceYHp8e9TJ00e/blobs/W4Qu4wCIZ1ipYScGdUD1/deployment-backup_destinations-enterprise_backup_providers-ibm_spectrum_protect_2.png)

   * Type name and attach Backup Destination to Node Configuration. You also need to set:
     * path to dsm.opt file (Default is `/opt/tivoli/tsm/client/api/bin64/dsm.opt`), where are saved information of IBM Spectrum Protect Nodes,
     * name of IBM Spectrum Protect Node,
     * password to ISP node.
