# ISO-based installation

This guide details the step-by-step process of installing Storware Backup & Recovery using an ISO image. We'll be using vCenter Hypervisor Manager as an example, but these instructions can be adapted to any Storware-supported Hypervisor Manager.

## Prerequisites:

* Storage Requirements: At least two virtual disks are required for deployment:
  * Disk 1: Minimum 30GB for the operating system and SBR installation.
  * Disk 2: Minimum 200GB for data staging (you will be able to allocate more disk space when required).
* Download the ISO: Visit the Storware repository and download the latest ISO file for deploying the SBR virtual machine.

## Preparation:

1. **Download the ISO:** Visit the Storware repository and download the latest ISO file for deploying the Storware Backup & Recovery virtual machine.

   [Click for current ISO](https://repo.storware.eu/storware/current/iso/storware-br-current.iso)

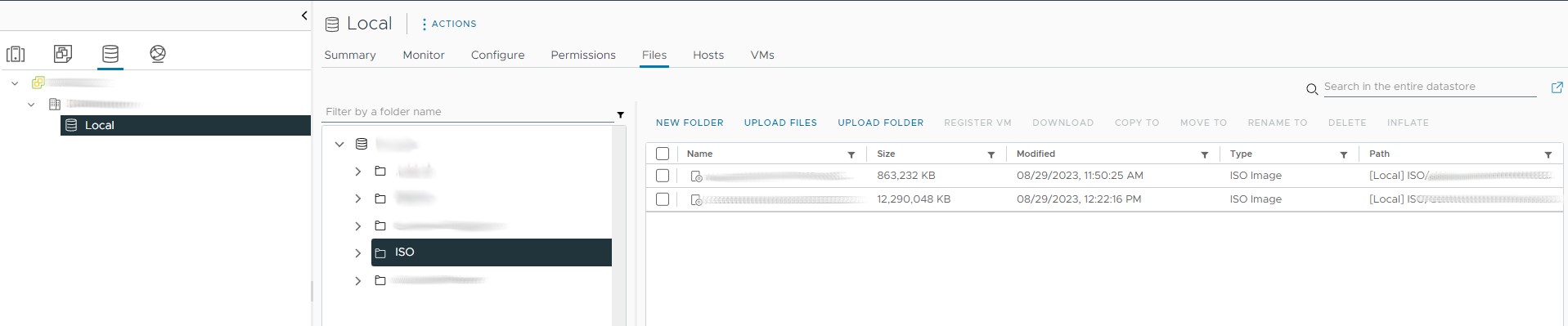

2. **Upload the ISO to your Datastore:** Within your virtualization platform's interface, locate the "Datastore" section and upload the downloaded ISO file.

   ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/oNB8da7sqTMjSi3Joo3p/deployment_installation_iso_1.jpg)

## Deployment:

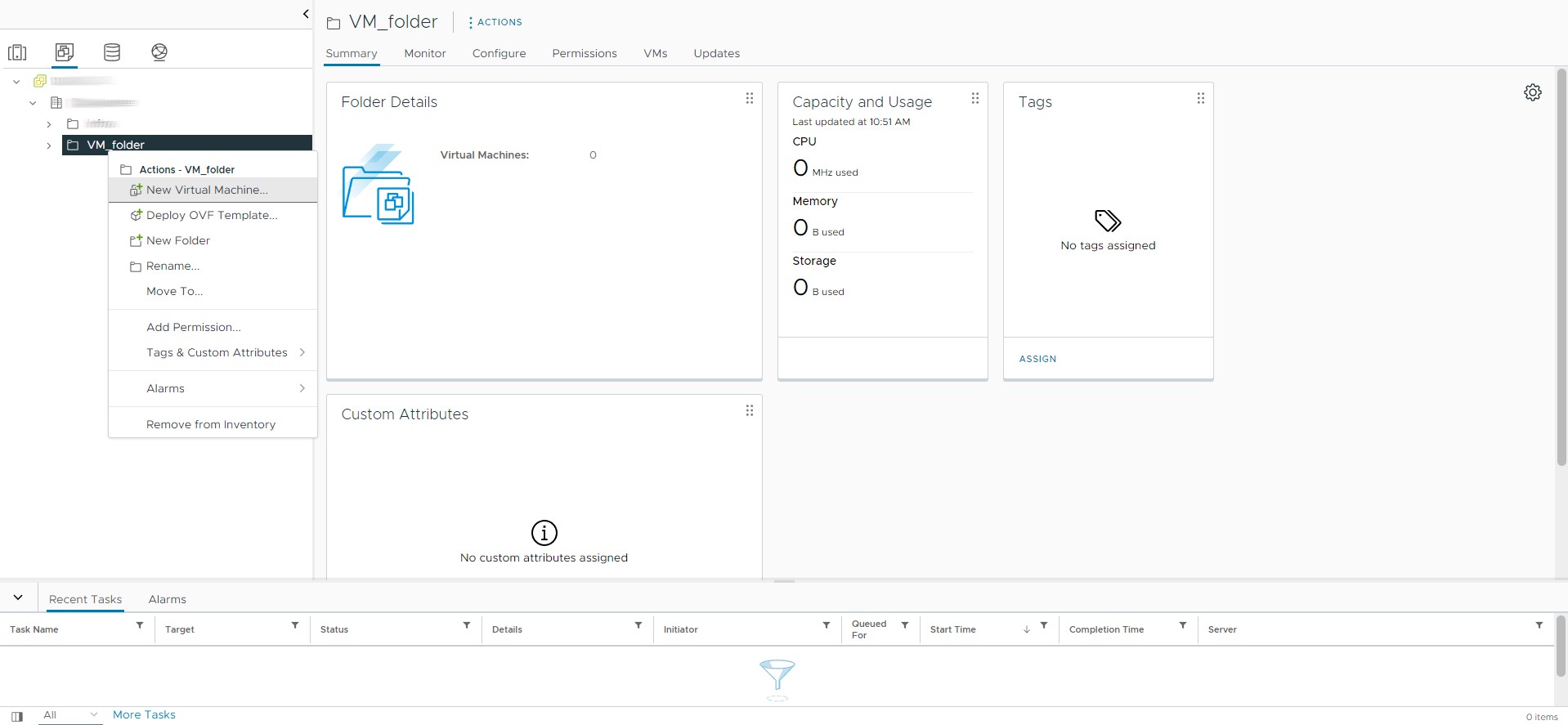

1. **Create a New Virtual Machine:** Right-click on the desired folder or datacenter within your virtualization platform and select "New Virtual Machine.

   ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/lMfcj7PhPB5ASNMKBNYd/deployment_installation_iso_4.jpg)
2. **Configure Virtual Machine Settings:** Follow the prompts in the wizard to complete the virtual machine creation process. Here's a breakdown of the key steps:

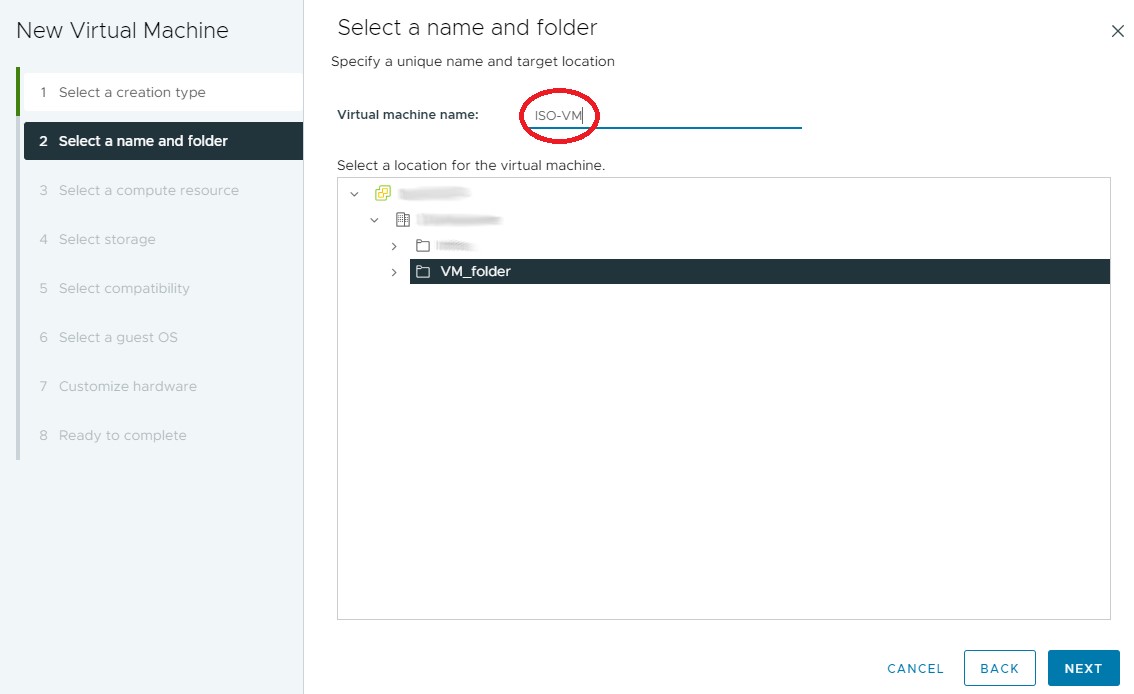

   * Enter a descriptive name for your virtual machine.

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/In5qAZ2BIhVrZjozNCfM/deployment_installation_iso_6.jpg)

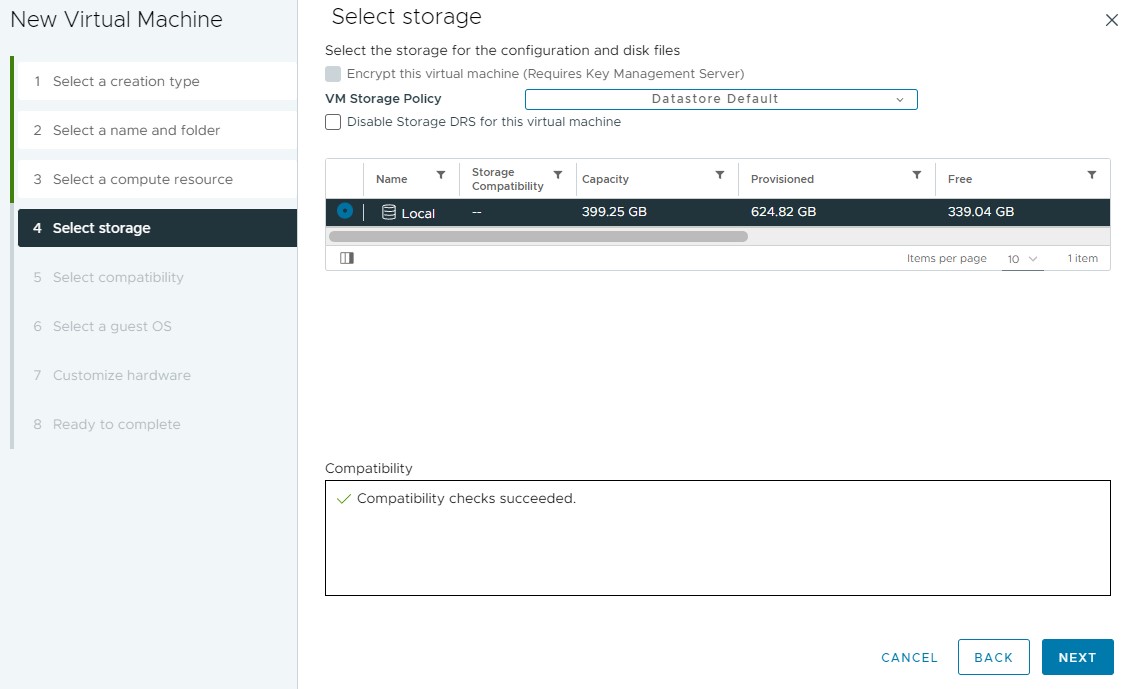

   * Allocate storage for the virtual machine from your available datastores

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/7Jy0iRtgzmasrPuRpgJM/deployment_installation_iso_8.jpg)

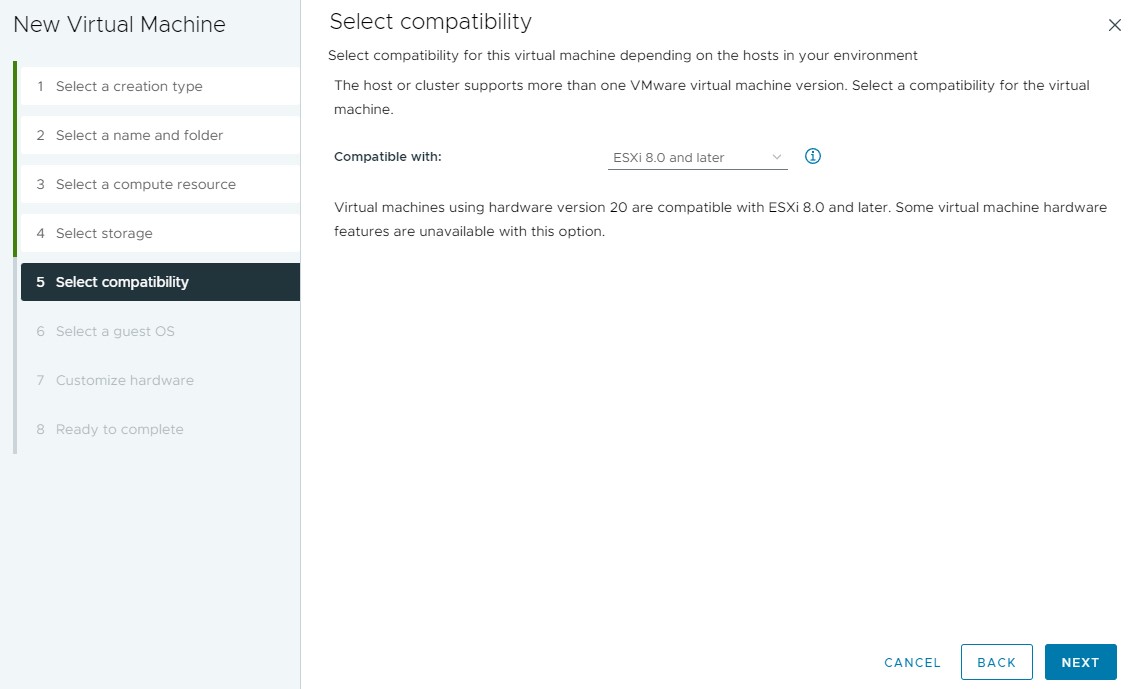

   * Choose the compatibility mode based on your virtualization platform's requirements.

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/nBzPNSLXgDQayFFIKpZH/deployment_installation_iso_9.jpg)

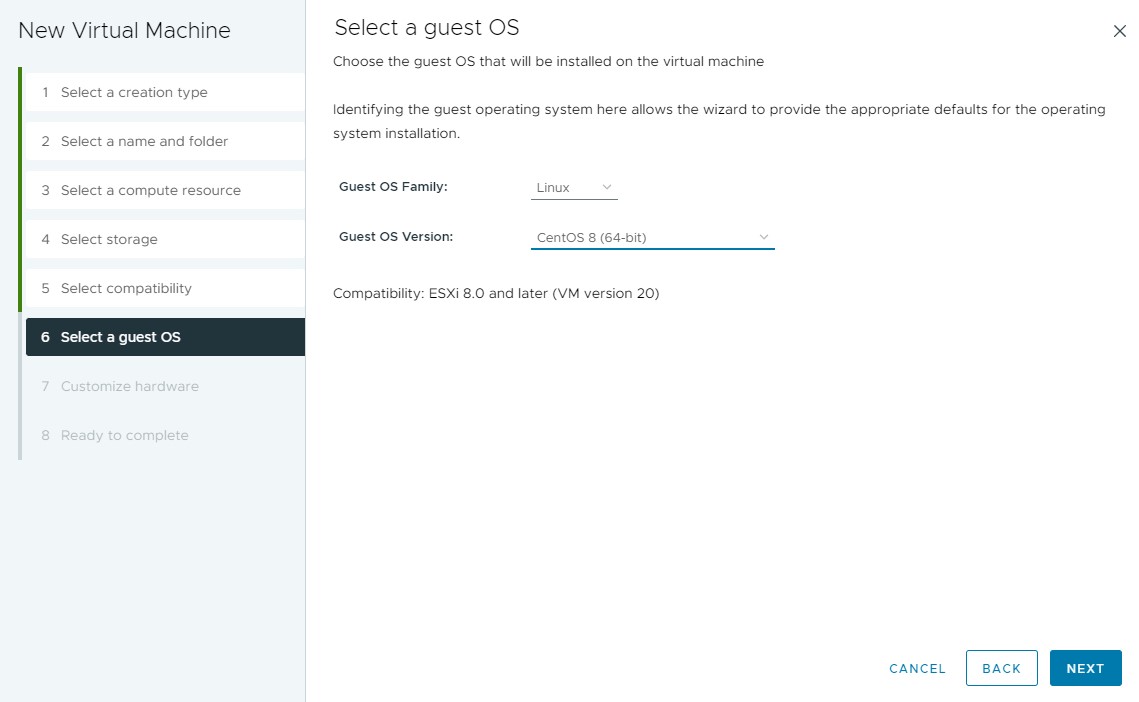

   * Select the guest operating system - ideally CentOS Linux 9. If unavailable, choose CentOS 8.

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/gL99Riwko2MZItvVrkyu/deployment_installation_iso_10.jpg)
   * Select the appropriate compute resources (CPU, memory) for your needs.

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/v2dTlN8GKkBHYyQpevAn/deployment_installation_iso_11.jpg)

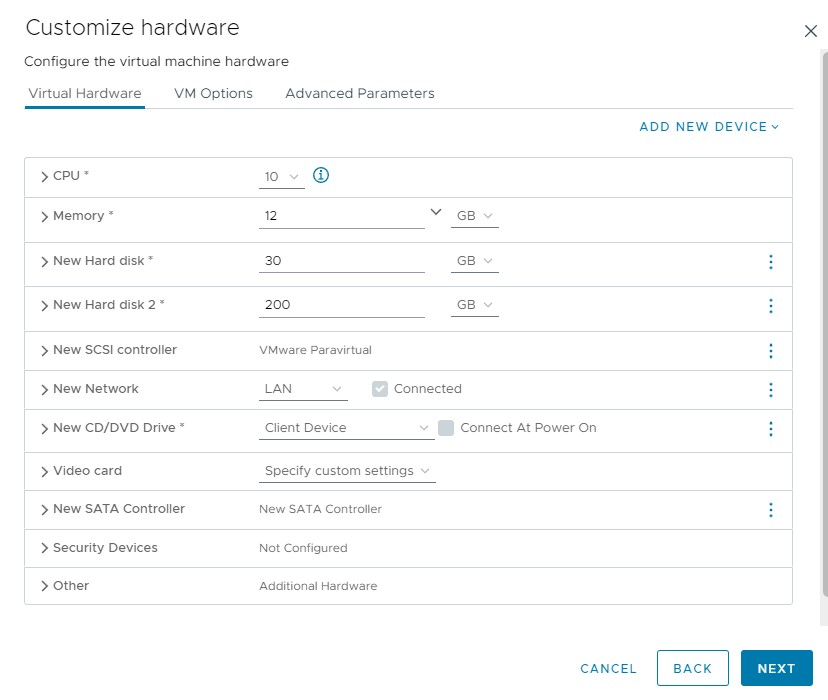

   * Refer to the provided screenshot to configure the virtual machine's hardware specifications (CPU cores, memory, etc.).
   * **CD/DVD Drive:**

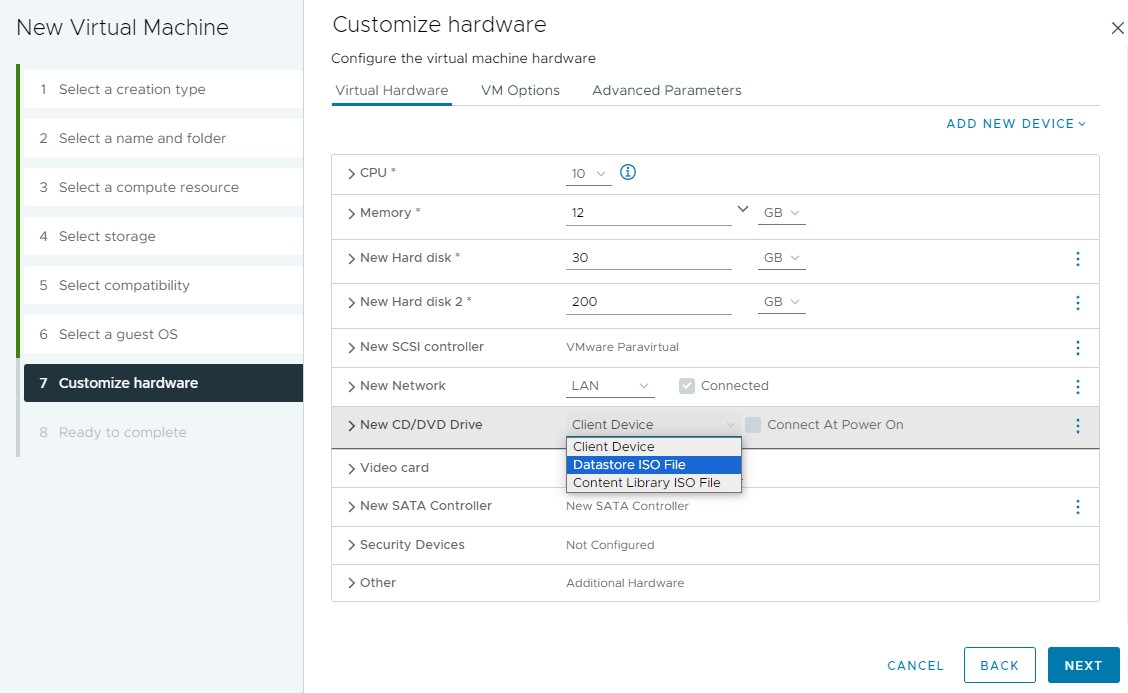

     * In the next step, select "Datastore ISO File" as the CD/DVD drive source.

       ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/hZF4sdwVnJcdiP3MiBjW/deployment_installation_iso_12.jpg)

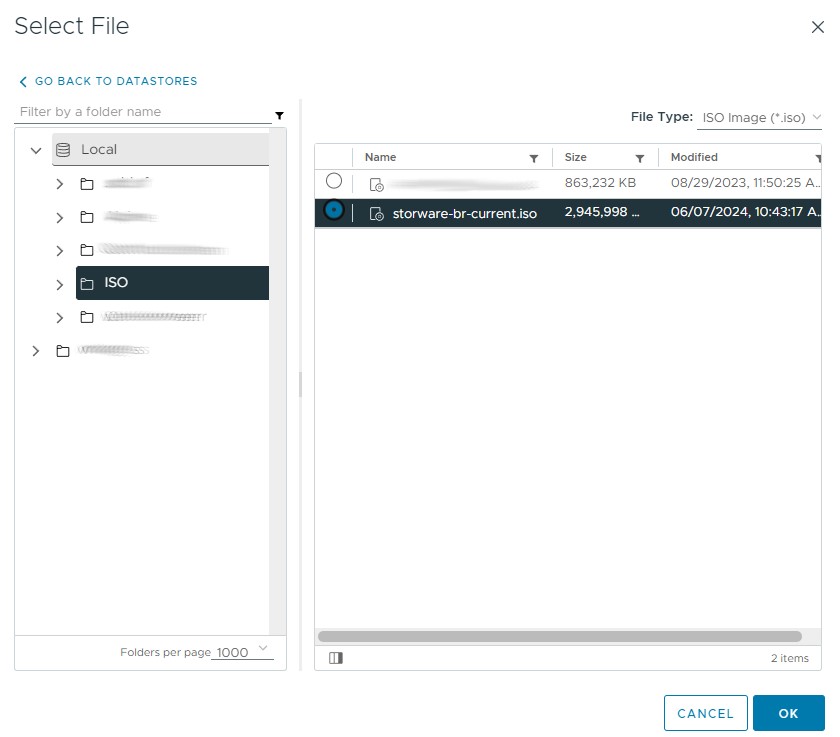

     * Choose the ISO file you uploaded earlier.

       ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/8Fd5rZimxFSaf8i8pOY6/deployment_installation_iso_13.jpg)

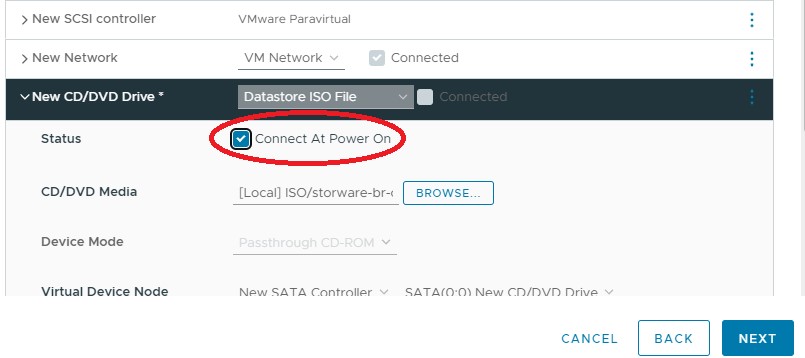

     * Ensure "Connect at power on" is checked for the CD/DVD drive.

       ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/M46KZsIoa0tk7AxQYsmM/deployment_installation_iso_14.jpg)

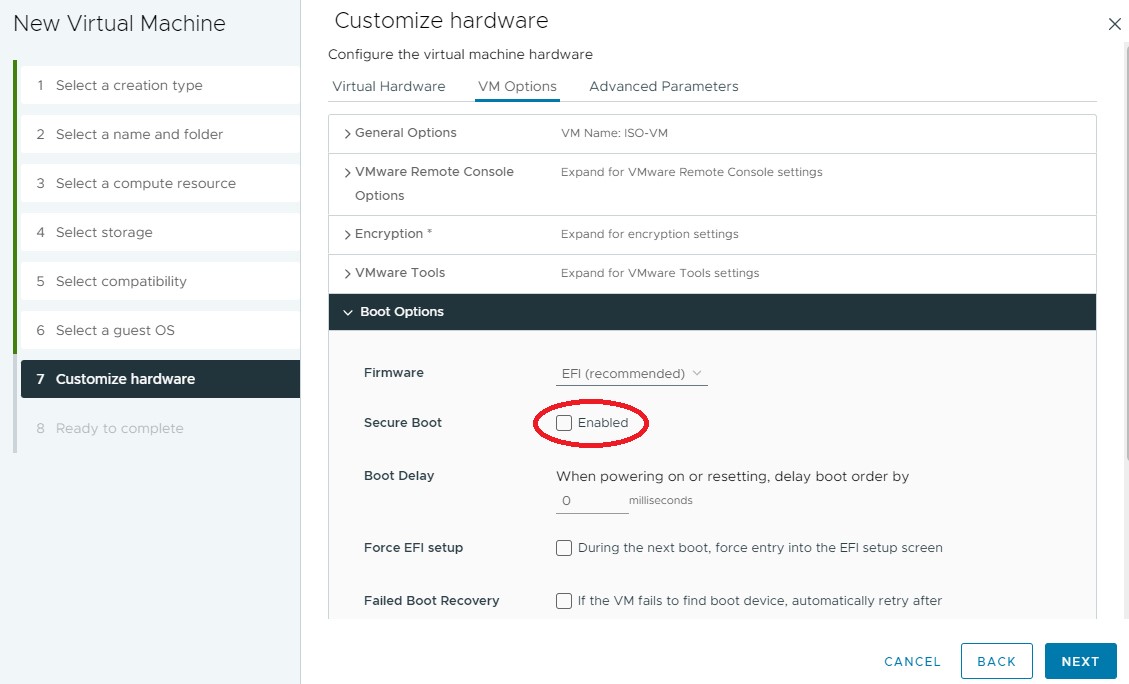

   * **VM Options:** Verify that "Secure Boot" is disabled in the VM Options section.

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/OD3gaWaggTcz05SrB3VC/deployment_installation_iso_15.jpg)

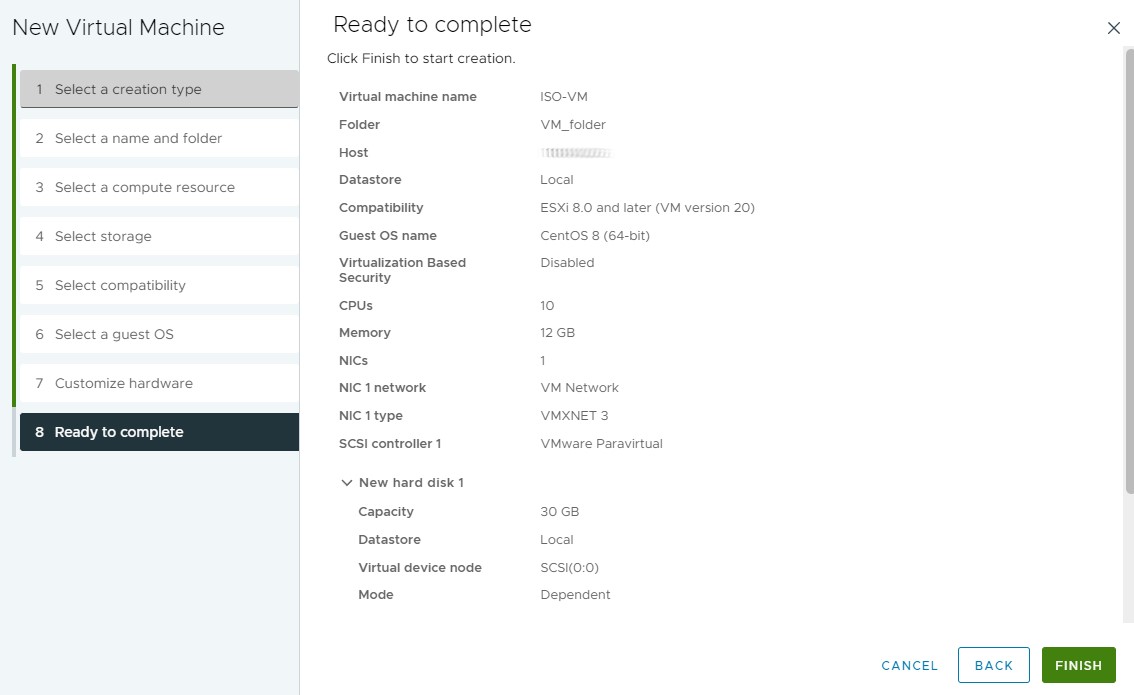

   * Review the configuration summary and click "Finish" to create the virtual machine.

     ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/QqKValXTevWPFQl0sEmA/deployment_installation_iso_16.jpg)

**Starting the Virtual Machine:**

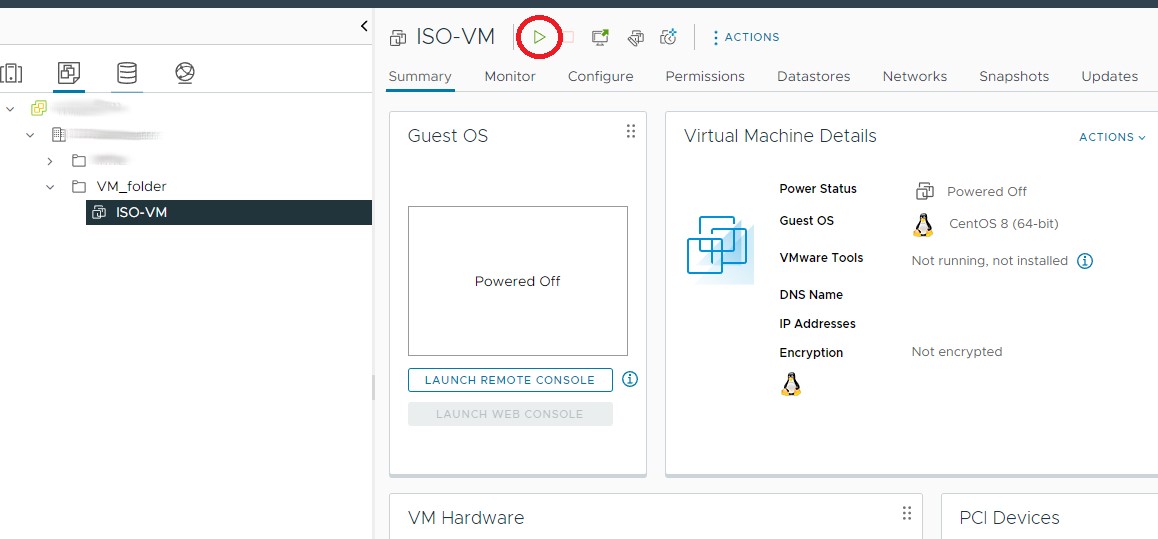

3. Locate the newly deployed virtual machine in your virtualization platform's interface.

   ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/JEQiAQlUYg8bj5RH4wDB/deployment_installation_iso_17.jpg)

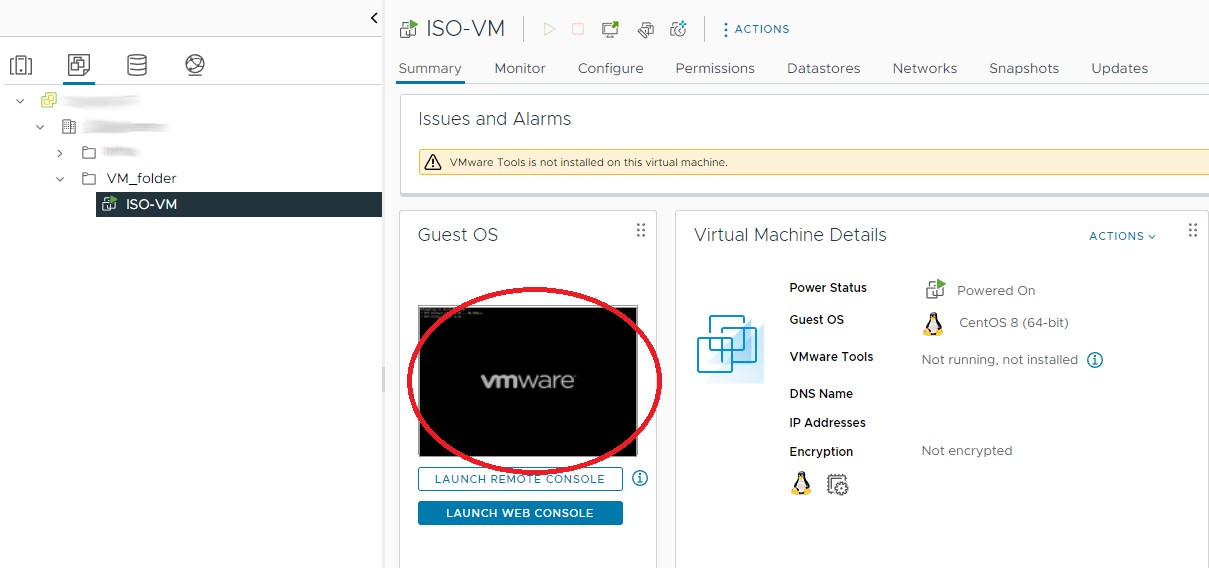

4. **Booting the System:** Power on the virtual machine. You might be redirected to a Storware installation process window.

   ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/4nWQqIVpjp8ifUBKzwwY/deployment_installation_iso_18.jpg)

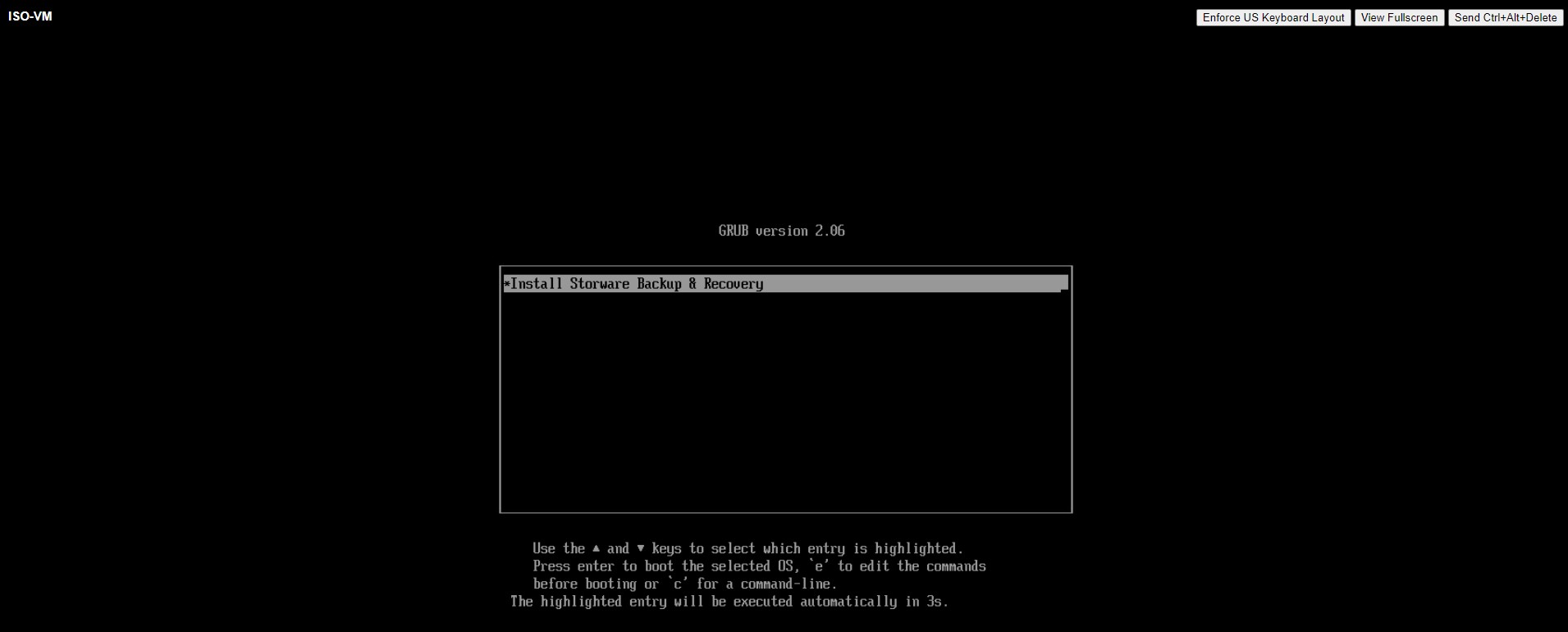

5. Typically, pressing "Enter" will initiate the installation process. Wait for it to complete.

   ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/oUmoPLG5AYrwrUJefOt5/deployment_installation_iso_19.jpg)

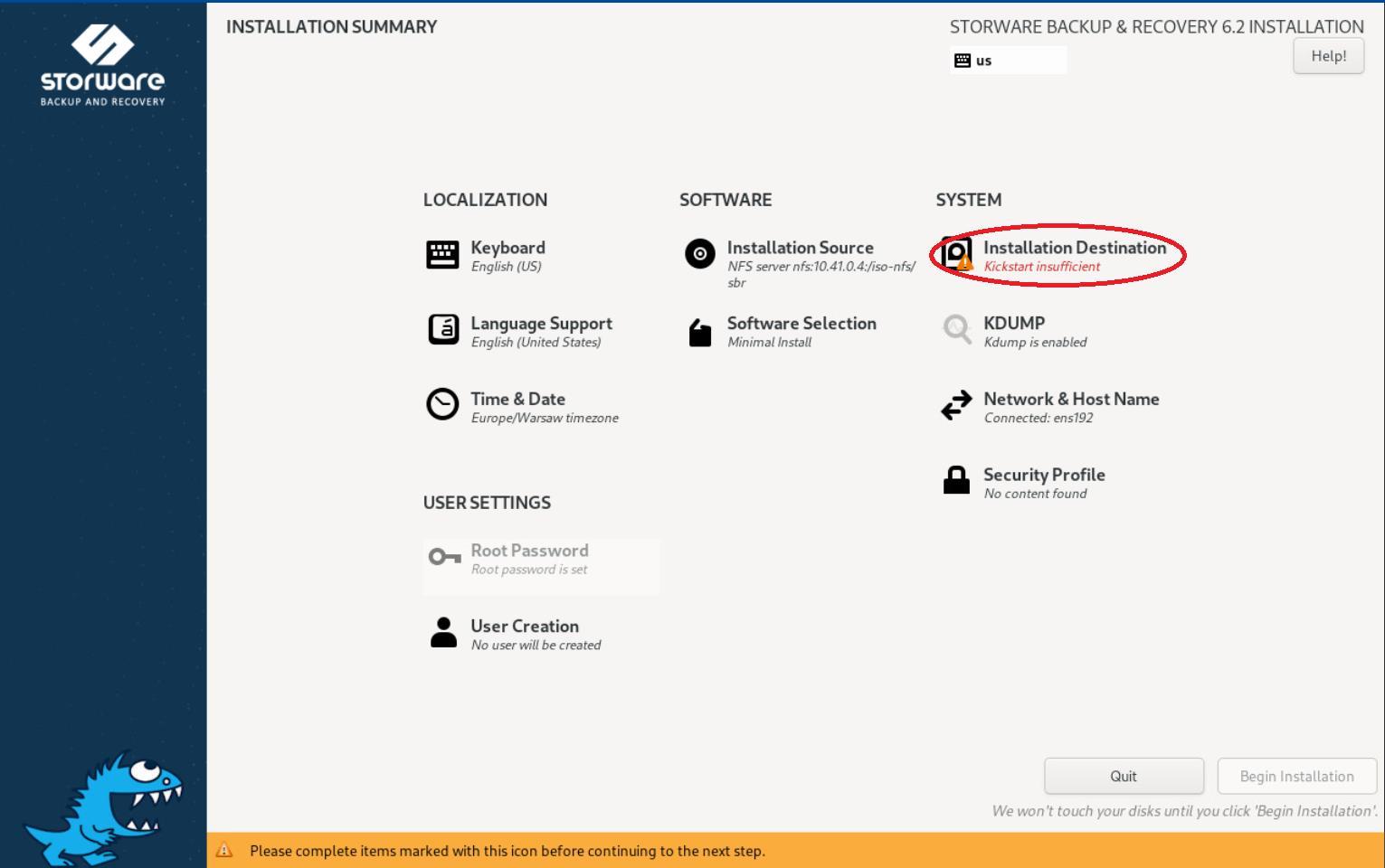

6. You will need to select a disk to be used for both the System and Storware Backup and Recovery. To do this, click on the highlighted field.

   ![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/Mq1BqrWiuJViZzSA8x8m/deployment_installation_iso_24.jpg)

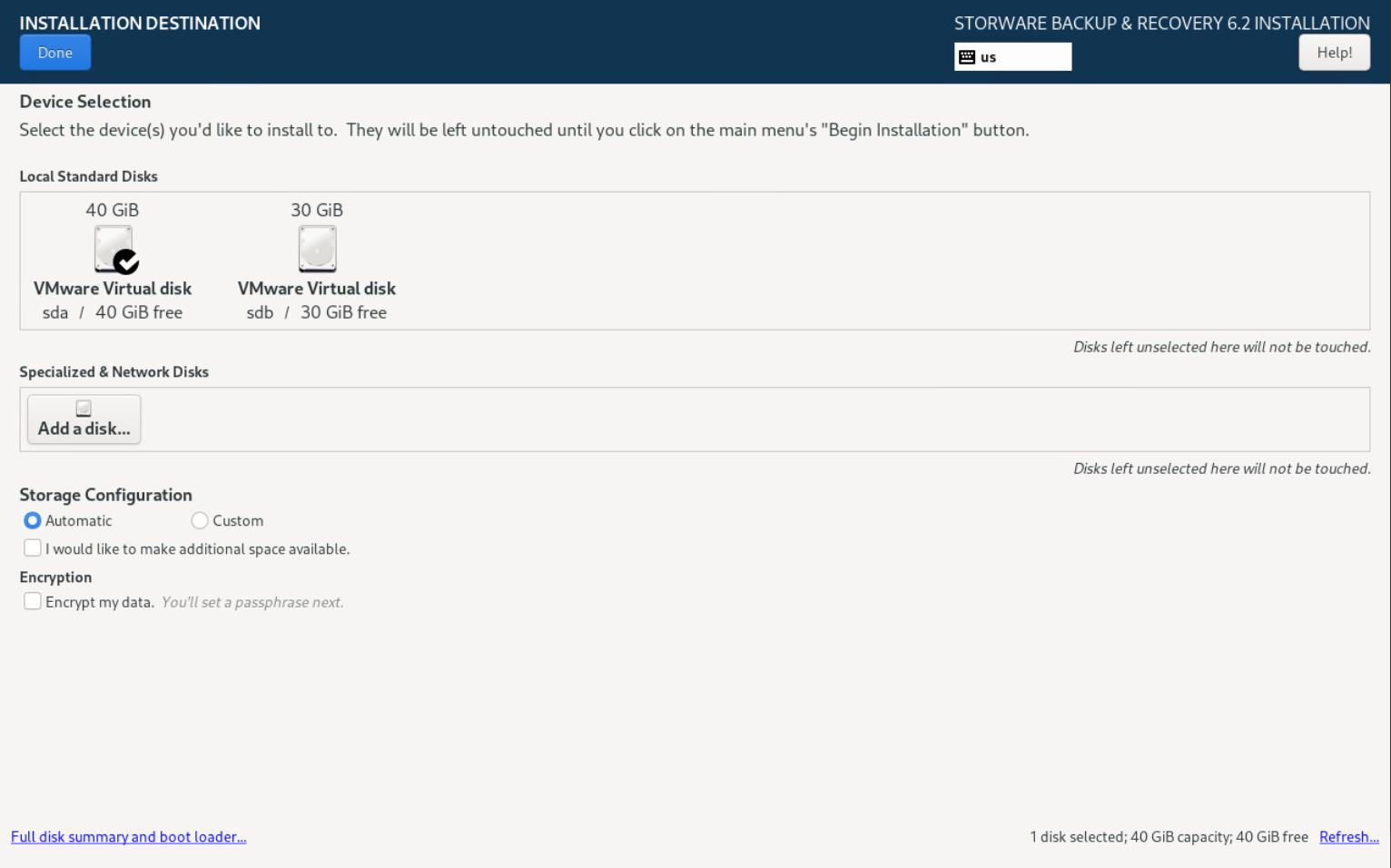

7. Select the desired disk and click "Done."

   <div data-gb-custom-block data-tag="hint" data-style="info" class="hint hint-info"><p>During the installation, select only the drive designated for the system, the other drives will be used as data storage for your backups automatically during the initial configuration.</p></div>

<figure><img src="https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/LAj5HUaCCngi6Glj7n7u/deployment_installation_iso_25.jpg" alt=""><figcaption></figcaption></figure>

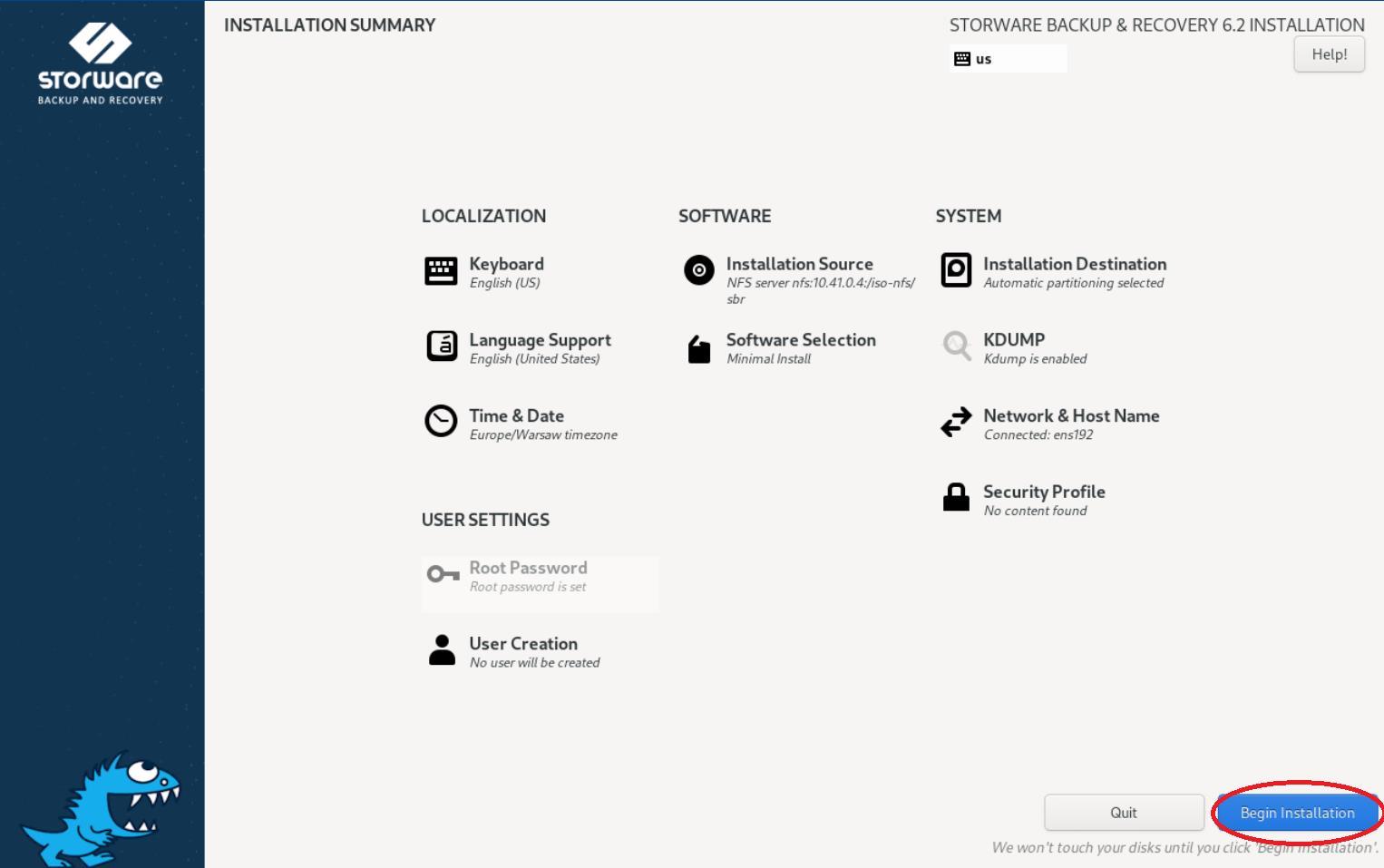

8\. After these steps you will be able to click “Begin Installation”.

<figure><img src="https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/7WxmhHNltW3CtQkO3rHZ/deployment_installation_iso_26.jpg" alt=""><figcaption></figcaption></figure>

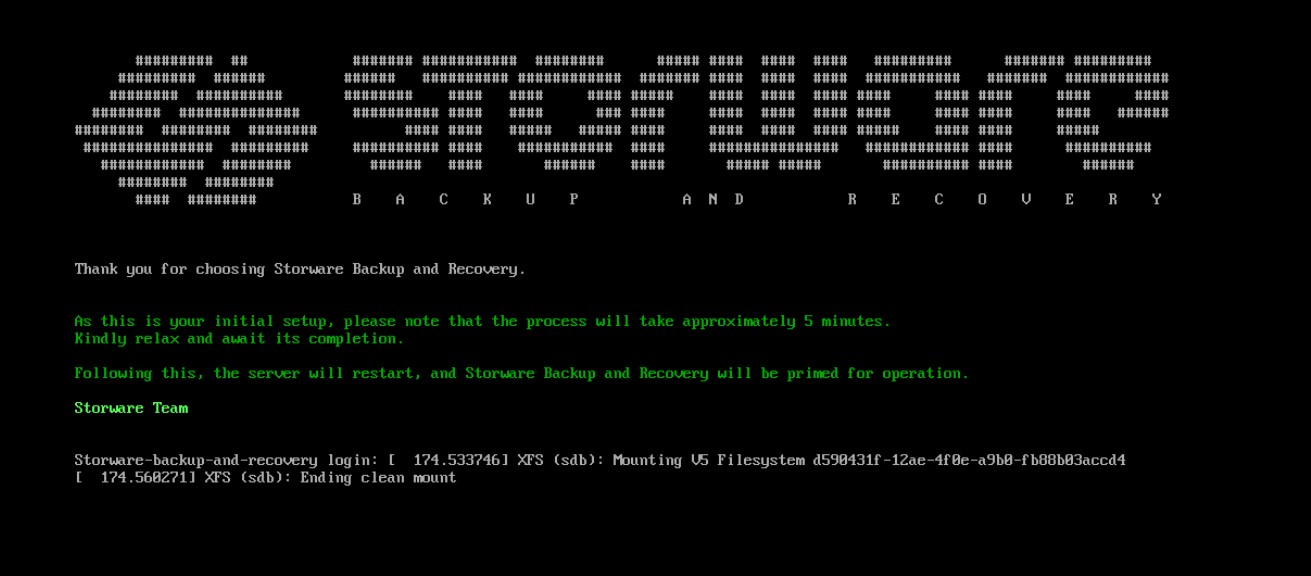

9\. The configuration process might require additional steps. Follow the on-screen prompts.

<figure><img src="https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/bafEHmiICgGp9gHwDR6x/deployment_installation_iso_21.jpg" alt=""><figcaption></figcaption></figure>

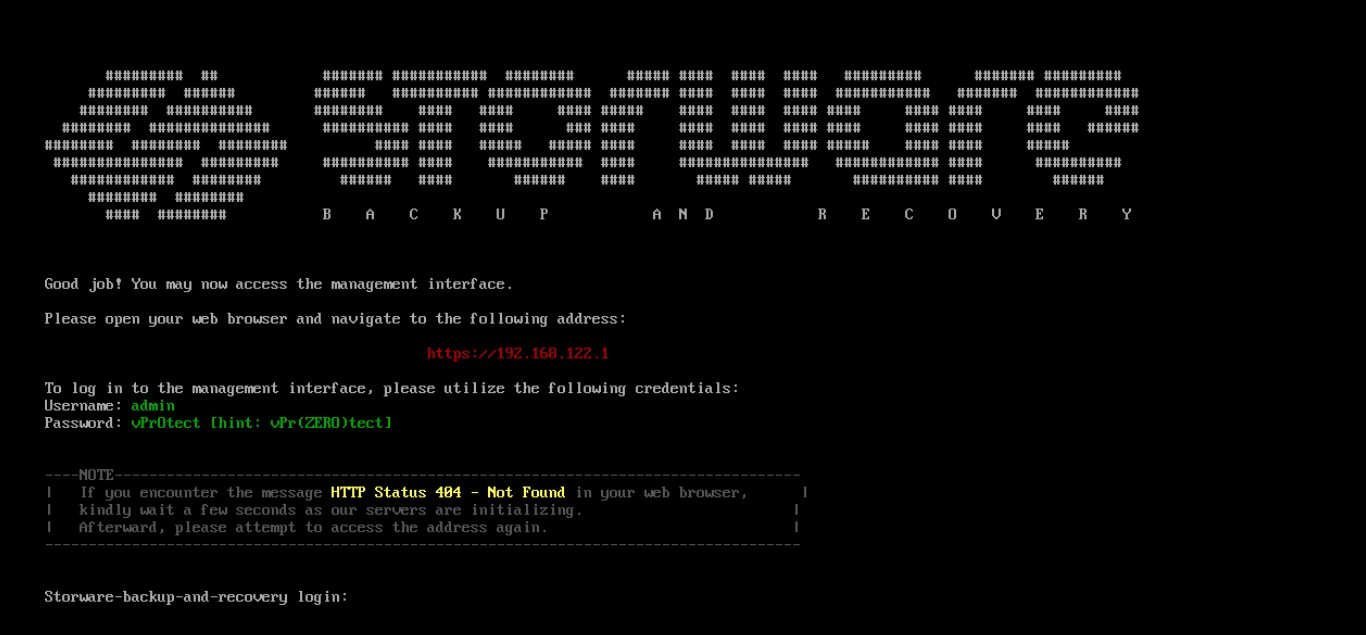

10\. After a system restart, you should see the Storware installation completion screen.

<figure><img src="https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/8U0vCaKZANKtjR2h8pFQ/deployment_installation_iso_22.jpg" alt=""><figcaption></figcaption></figure>

## WebUI Access:

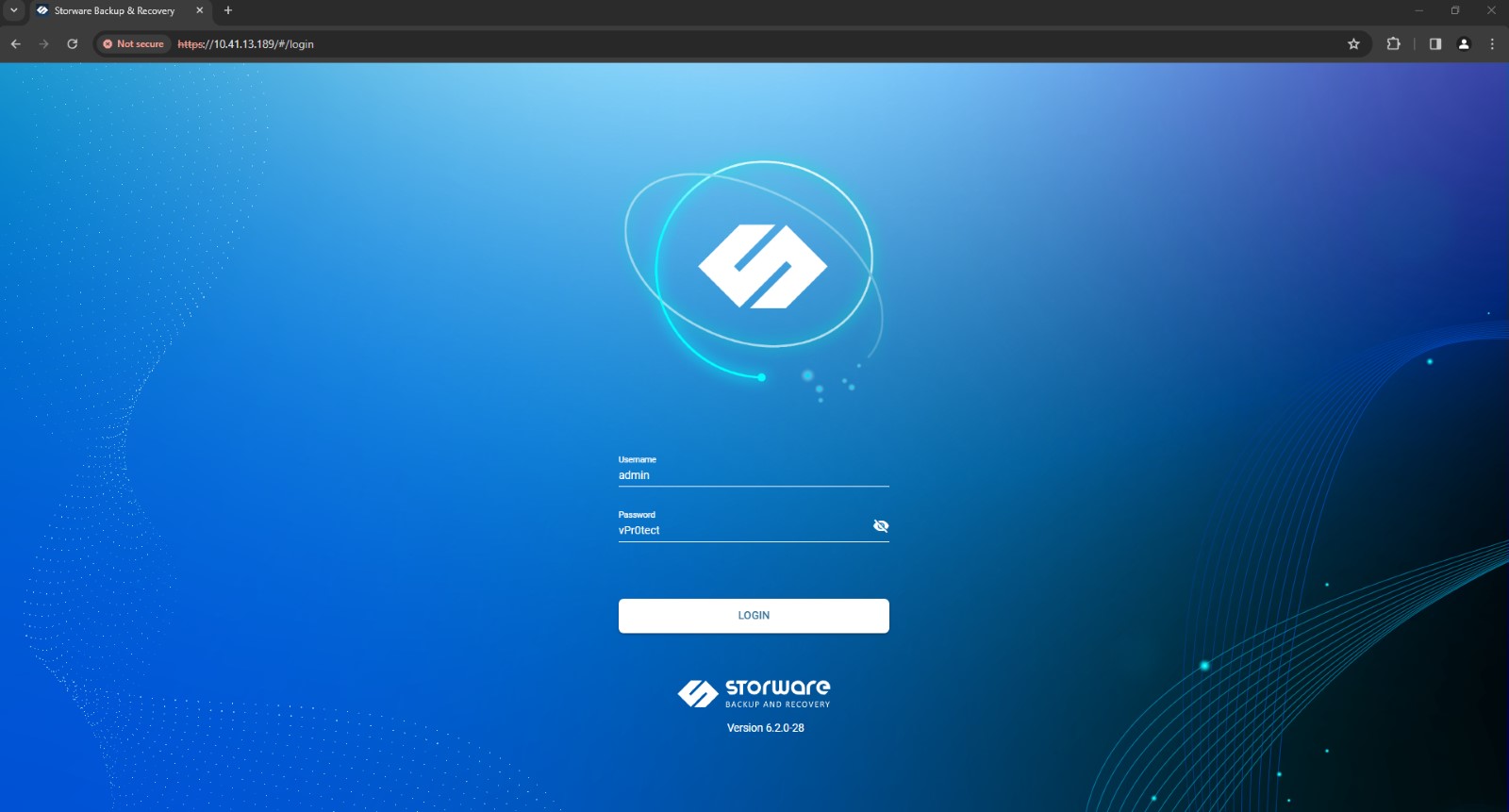

With the installation complete, you can access the Storware WebUI using the Linux host's IP address in a web browser.

![](https://content.gitbook.com/content/aAlfZI37JR0ShCZIy4qK/blobs/l3VvTcF8ShrUltoqopvn/deployment_installation_iso_23.jpg)

**Default Login Credentials:**

* Login: **admin**
* Password: **vPr0tect** (Hint: vPr(zero)tect)
