# Catalogic Software vStor

Storware Backup & Recovery supports Catalogic vStor Server and integrates with it with extended File System Backup Destination logic.

You can use Catalogic volumes like any other file system (mount a single volume over NFS) or you can use the scripts provided to automatically create and replicate volumes whenever vStor volume is being accessed. This documentation describes a setup with 2 vStor servers and a 1-volume-per-VM approach (with optional replication).

1. Storware Backup & Recovery accesses vStor Servers using SSH public key authentication - first generate the key:

   ```
   [root@vProtectbuild ~]# sudo -u vprotect ssh-keygen
   Generating public/private rsa key pair.
   Enter file in which to save the key (/opt/vprotect/.ssh/id_rsa):
   Created directory '/opt/vprotect/.ssh'.
   Enter passphrase (empty for no passphrase):
   Enter same passphrase again:
   Your identification has been saved in /opt/vprotect/.ssh/id_rsa.
   Your public key has been saved in /opt/vprotect/.ssh/id_rsa.pub.
   The key fingerprint is:
   SHA256:xeceRtL4kq3zzQrUQH/K5SbiT/nv9QvAtBEfOxeT5us vprotect@vProtectbuild.lab.local
   The key's randomart image is:
   +---[RSA 2048]----+
   |          .. . o.|
   |         o +o ooo|
   |          *o=+=. |
   |         .o%o=o. |
   |        S =+@ o .|
   |         o *.= . |
   |          = +.. .|
   |           * +.Eo|
   |            +.++=|
   +----[SHA256]-----+
   ```
2. Add the VM fingerprint to the SSH known\_hosts on the **node** for the primary (and optionally secondary) vStor Server:

   * It must be a `known_hosts` file that belongs to the `vprotect` user
   * The algorithm must be set to `ssh-rsa`

   ```
   sudo -u vprotect ssh -o HostKeyAlgorithms=ssh-rsa admin@VSTOR_HOST
   ```

   **Example:**

   ```
   [root@vProtectbuild ~]# sudo -u vprotect ssh -o HostKeyAlgorithms=ssh-rsa admin@10.10.10.1
   The authenticity of host '10.10.10.1 (10.10.10.1)' can't be established.
   RSA key fingerprint is SHA256:65M/6jNBXJTFqti/798STSFeZigRzHMivDNl0t95FNI.
   RSA key fingerprint is MD5:cc:91:7d:17:8e:21:68:19:4b:c9:e4:76:bd:f5:4d:fc.
   Are you sure you want to continue connecting (yes/no)? yes
   Warning: Permanently added '10.10.10.1' (RSA) to the list of known hosts.
   ```
3. Copy the key to each vStor Server:

   ```
   [root@vProtectbuild ~]# sudo -u vprotect ssh-copy-id admin@10.10.10.1
   /bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/opt/vprotect/.ssh/id_rsa.pub"
   /bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
   /bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
   admin@10.10.10.1's password:
   _
   Number of key(s) added: 1
   _
   Now try logging into the machine, with:   "ssh 'admin@10.10.10.1'"
   and check to make sure that only the key(s) you wanted were added.
   ```
4. Open the "BACKUP DESTINATIONS" section on the left menu.
5. Create a new Catalogic vStor Server Backup Destination (choose from the top-right drop-down menu).

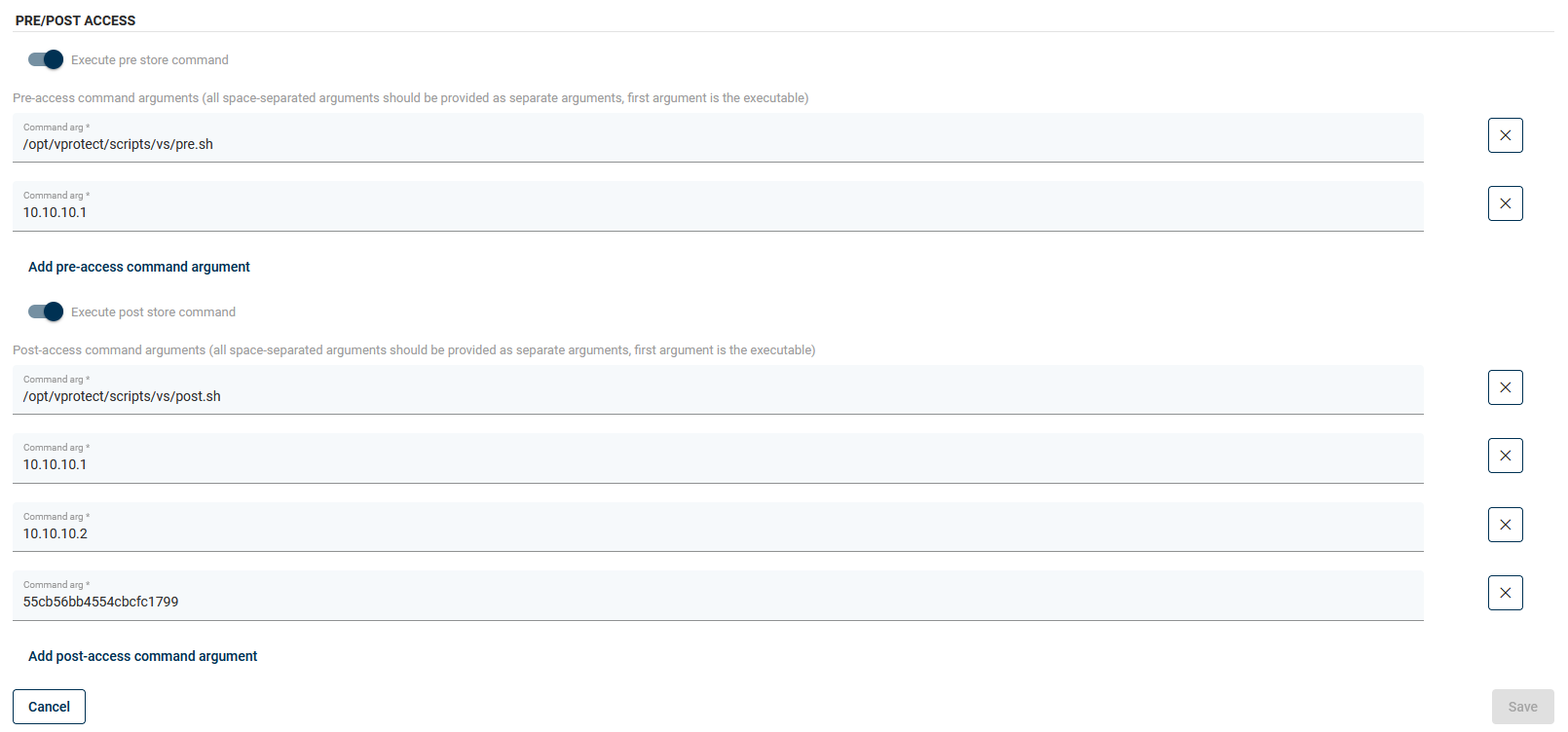

6. Fill in the template with your information.

![](https://content.gitbook.com/content/QumYNgUJDESi1C41uxk6/blobs/IlGiaWh4tNbW3VZqWVzb/deployment-backup_destinations-file_system-synthetic_file_system-catalogic.png)

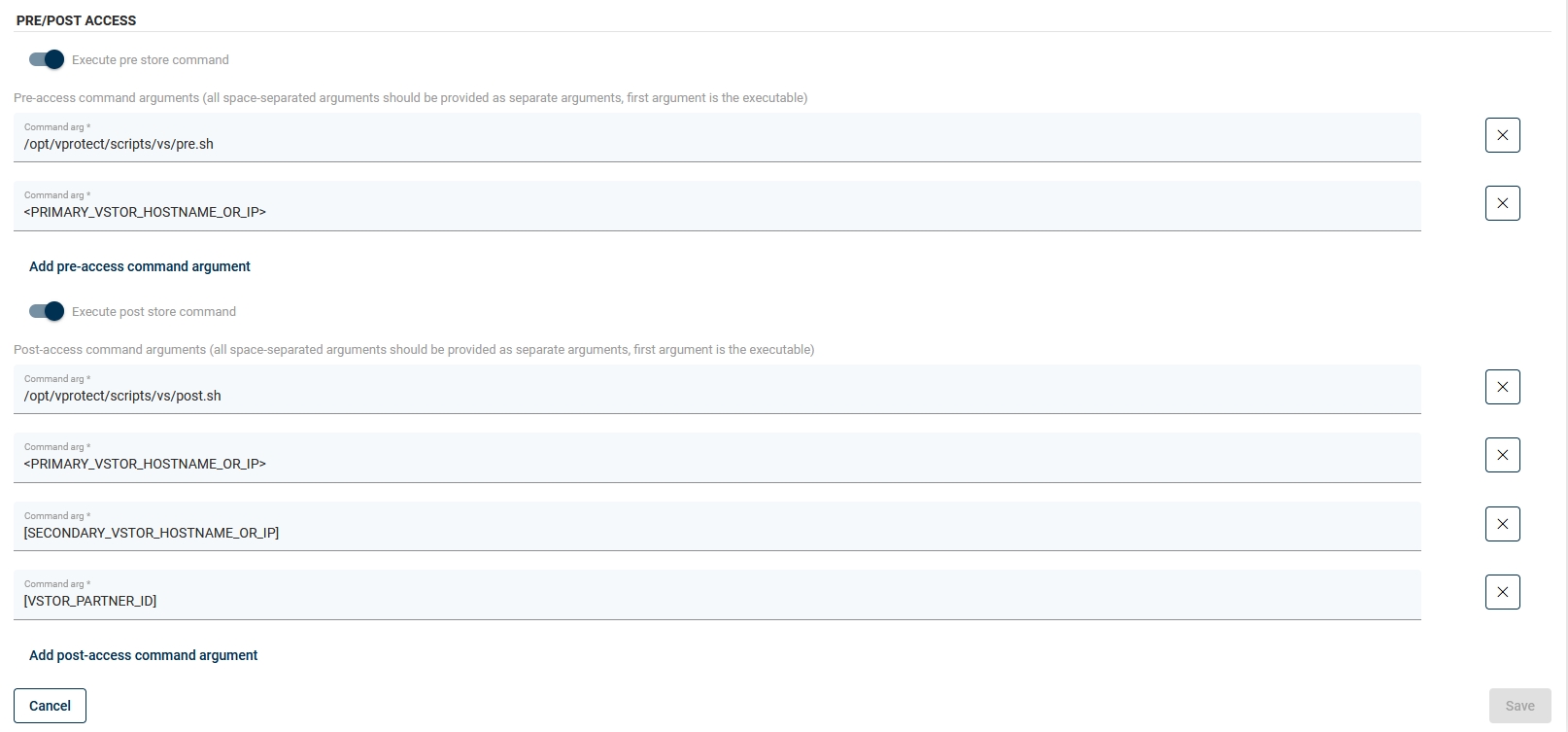

* `FIRST_VS_HOST` - your primary vStor Server IP/hostname
* `SECOND_VS_HOST` - optional, secondary vStor Server IP/hostname, where the data will be replicated to
* `VS_PARTNER_ID` - optional, secondary vStor partner ID - you can get this ID by running this command on the vStor Server shell:

  ```
  [admin@localhost ~]# vstor partner show
  ID                               | MGMT ADDRESS | API PORT | SSH PORT
  55cd380b7dc848bbb439bfd444bc1799 | 10.10.10.2   | 8900     | 22
  ```
* If a secondary server is not provided, Storware Backup & Recovery will assume that no replication is needed.

![](https://content.gitbook.com/content/QumYNgUJDESi1C41uxk6/blobs/QiEL4loeLqHpqBIUnuZp/deployment-backup_destinations-file_system-synthetic_file_system-catalogic_2.png)

1. Initiate backup to test if the scripts have been executed correctly - in the `vprotect_daemon.log` files you should be able to see messages like this:

   ```
   2018-05-04 15:31:39.133  INFO
   [0f2b9705-61a1-44d5-876f-ac81985c4a94] Executing pre/post store command...
   ```
